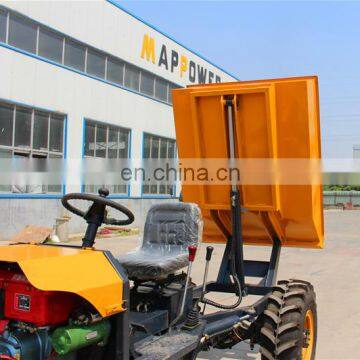

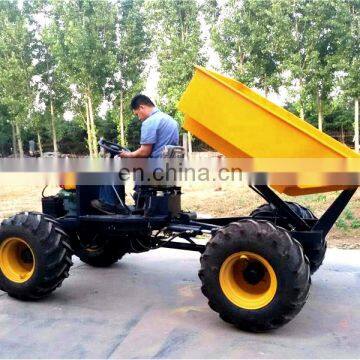

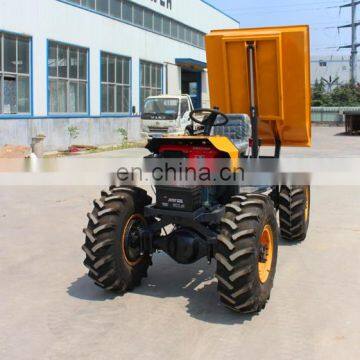

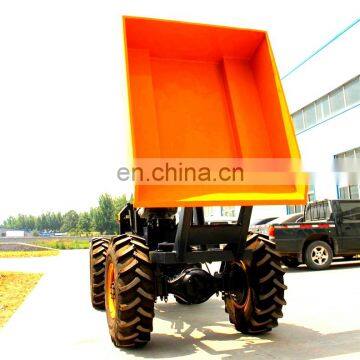

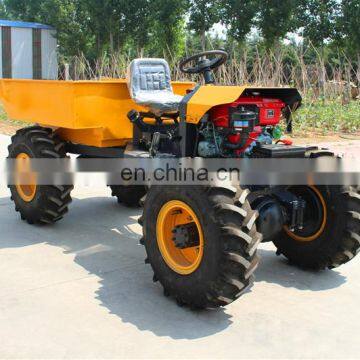

Dumper, Site dumper, dumper truck
Specification
Model |
Mini dumper |
|
ZY100 | ||
Drive Model |
4WD |
|
Payload |
800KG |
|
Length(mm) |
3200 |
|
Width(mm) |
1450 |
|
Height(mm) |
1500 |
|
Wheel Base |
Wheel Base(mm) |
2000 |
Wheel Tread |
Front Wheel(mm) |
1470 |
Rear Wheel(mm) |
1470 |
|
Min Ground Clearance(mm) |
≥268 |
|
Dry Mass(Kg) |
1180 |
|
Engine |
Model |
CHANGCHAI 195
|
Type |
Water cooler type. Single cylinders diesel engine
|
|
12 Hours Rated Power(rpm) |
12HP |
|
Tyres |
Front Wheel |
31.5X15-15 |
Rear Wheel |
31.5X15-15 |
|
Brake |
Drum type 4 Wheel brake |
|
Steering Gear |
Hydraulic follow-up Service |
|
Gear Box With |
4 forward speeds and 2 reversed speed |
|
Skip Capacity (m3) |
1.5 |
|
Minimum Turning Radius (m) |
4 |
|
Tipping System |
Hydraulic Tipping hopper |
|
Max, Grade Ability (%) |
30 |
|
Electric Starting |
Yes |
|
| ||
Container Loading | ||
20GP container can be loaded with |
2Unit |
|
40GP container can be loaded with |
4Units |
|
