1/ About Higling Group:

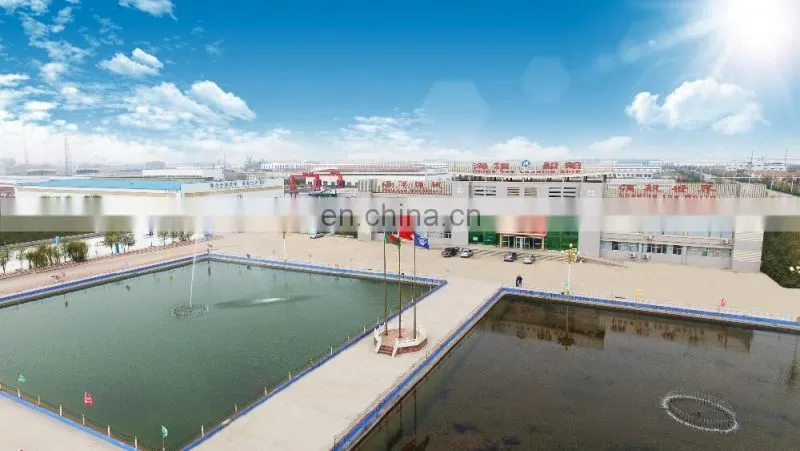

Shandong Highling Group, was established in 1992. Over 20 years development,we own three subsidiaries: Shandong Highling Dredging Equipment and Machinery Co., Ltd.,Shandong Haiyang Ore Machinery Manufacturing Co.,Ltd. and Shouguang Yongde Shipping Manufacturing Co.,Ltd., Group covers an area of 1500 acres,with more than 800 employees. Annual turnover achieve 60 million dollars,The products are of a great variety, including 500-20000m³/h large scale dredging and sand mining equipments, gold panning ship, sand transportation ship,multi-function service work boat etc, which widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting,reclamation for channels and land, port construction etc. All the products can be customized according to client’s requirements, formed a complete ship machinery industry chain.
2./Highling Main Products:

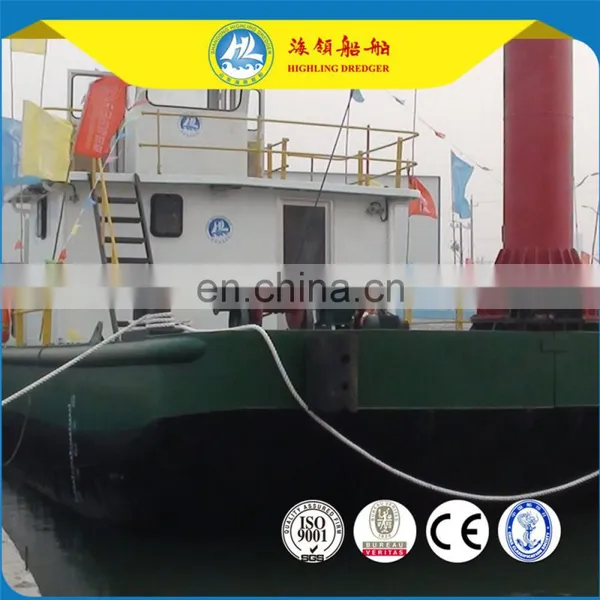

3./ Service work boat General Description:

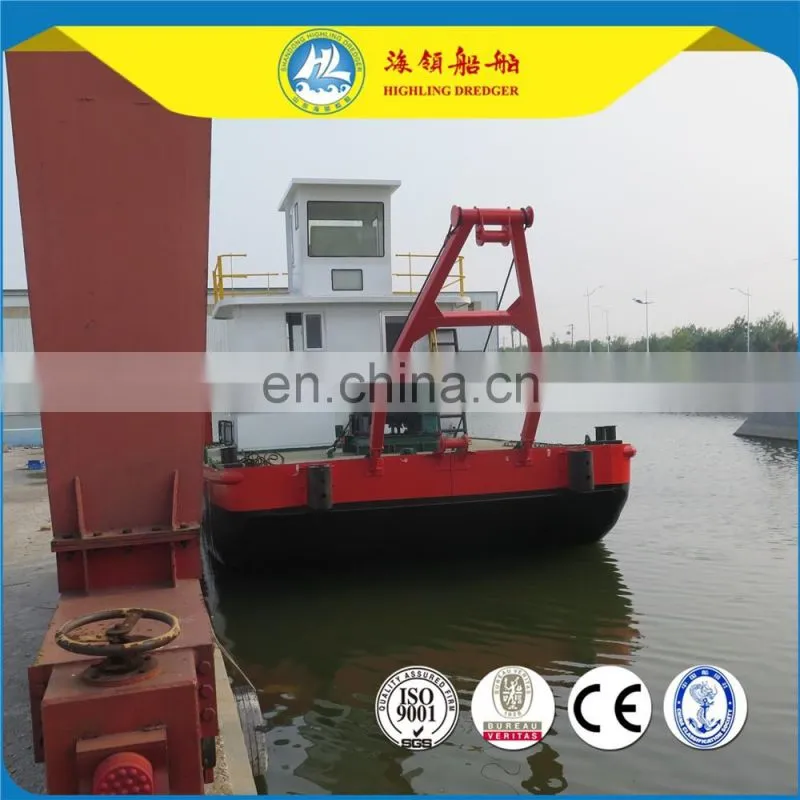

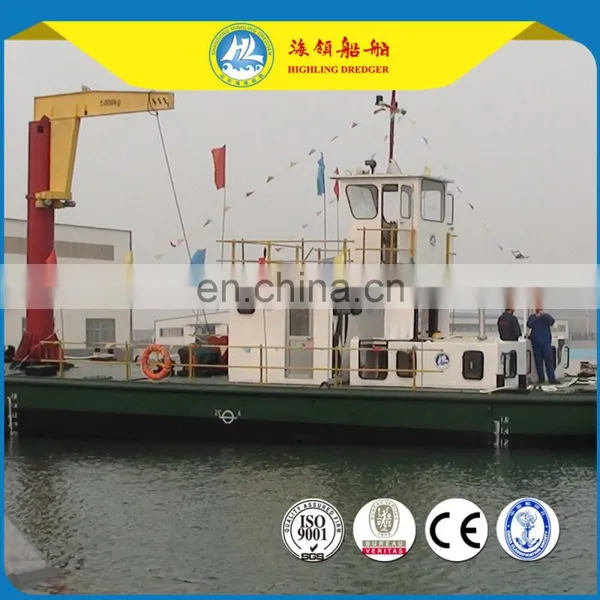

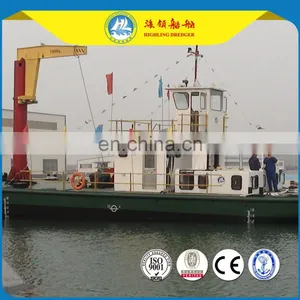

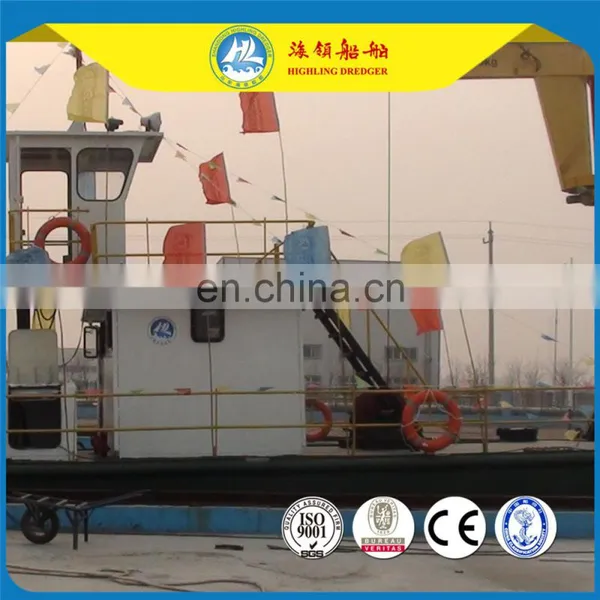

Multi-function Service Work Boat is used for cutter suction dredger in regular operation and maintenance, the standard option including wheelhouse, deck crane and also can be customized. The new type work boat is widely used for transporting dredging workers,diesel oil and hydraulic oil etc.
4./ Servise work boat Main Function:
1. Transport the dredgers and dredging equipment
2. Anchor handling
3. Towing
4. Floating pipeline handling
5. Providing the commuting and accommodation
6. Maintenance support
5./Main parameters:
HL-S300 Multi-function Service Work Boat | |
Hull size(L×B×H) |
12.0*6.0*2.0m |
Pontoon size (L×B×H) |
(12.0*3.0*2.0m)X2 |
Hull material thickness |
8mm/8mm/10mm |
Draught |
1.3m |
Fuel oil capacity |
20m3 |
Fresh water capacity |
3T |
Deck crane lift |
1.5T |
Speed |
15kn/h |
Anchor weight & QTY. |
70kgx2 |
Volume in bulk |
210m3 |
Main engine brand |
Cummins / Sinotruck |
Main engine model |
6BTA5.9-M150/WD415.24C03 |
Main engine RPM |
2200r/min |
Main engine power |
300HP |
Engine quantity |
2pcs |
Gearbox maker |
Hangchi |
Gearbox model |
MB270 |
Gearbox QTY. |
2pcs |
Generator power |
12kw |
Generator model |
X2105BCF |
Total fuel oil consumption |
33L/H |

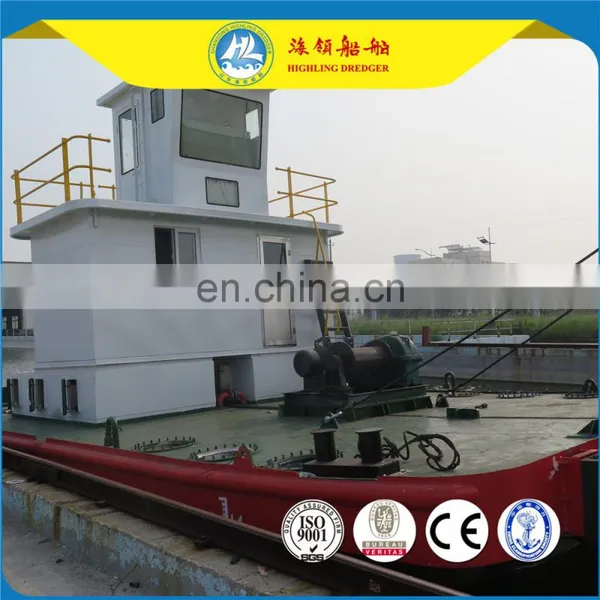

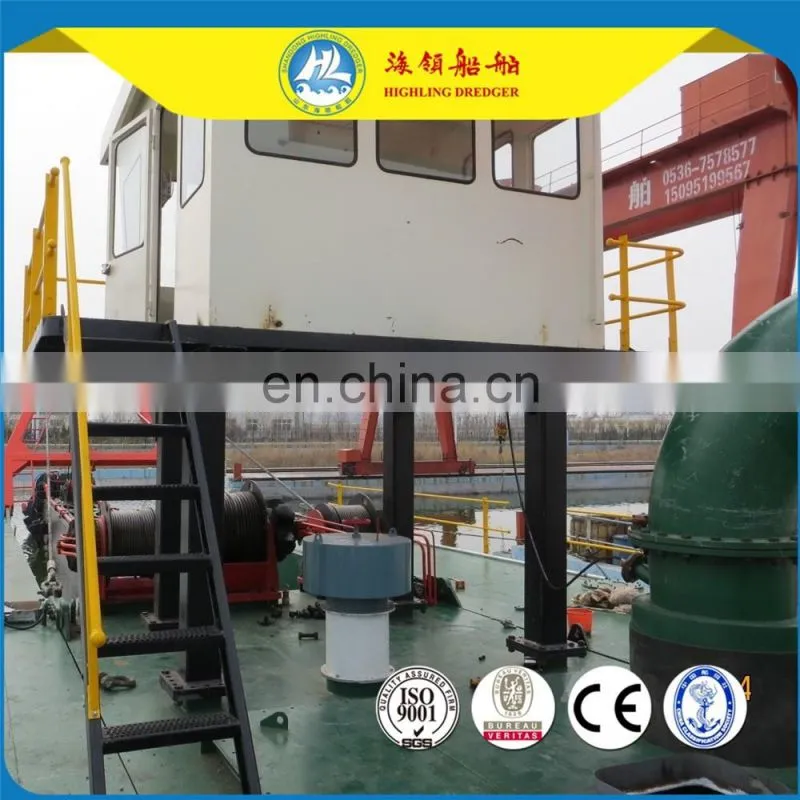

6./ Operation cab:

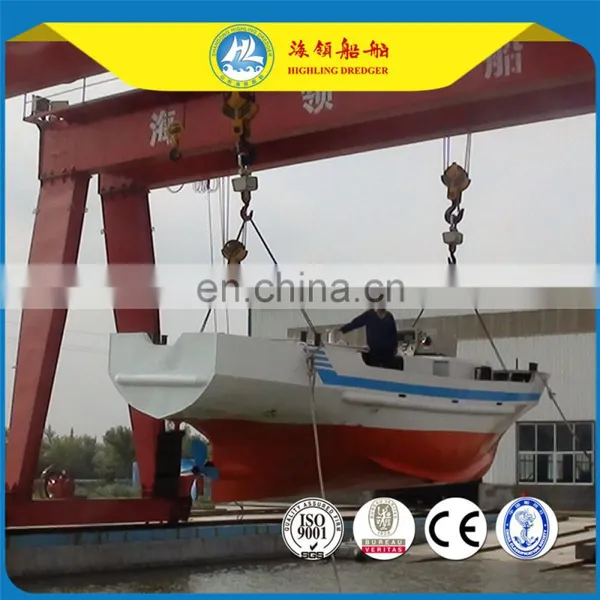

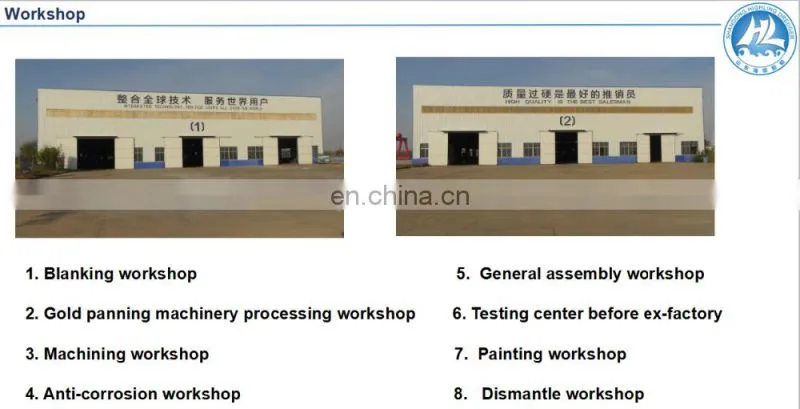

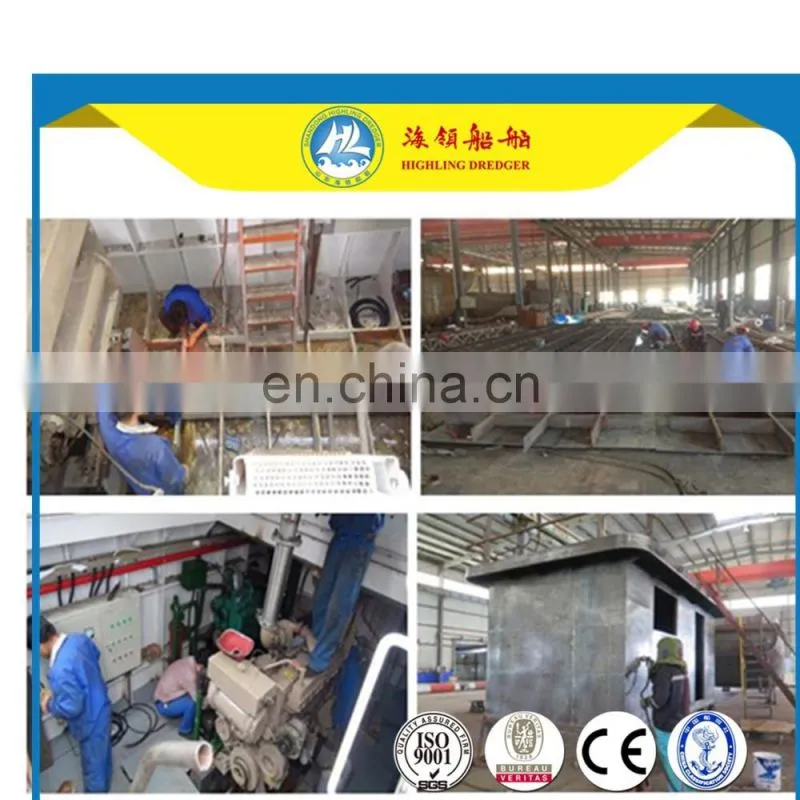

7./ our workshop:

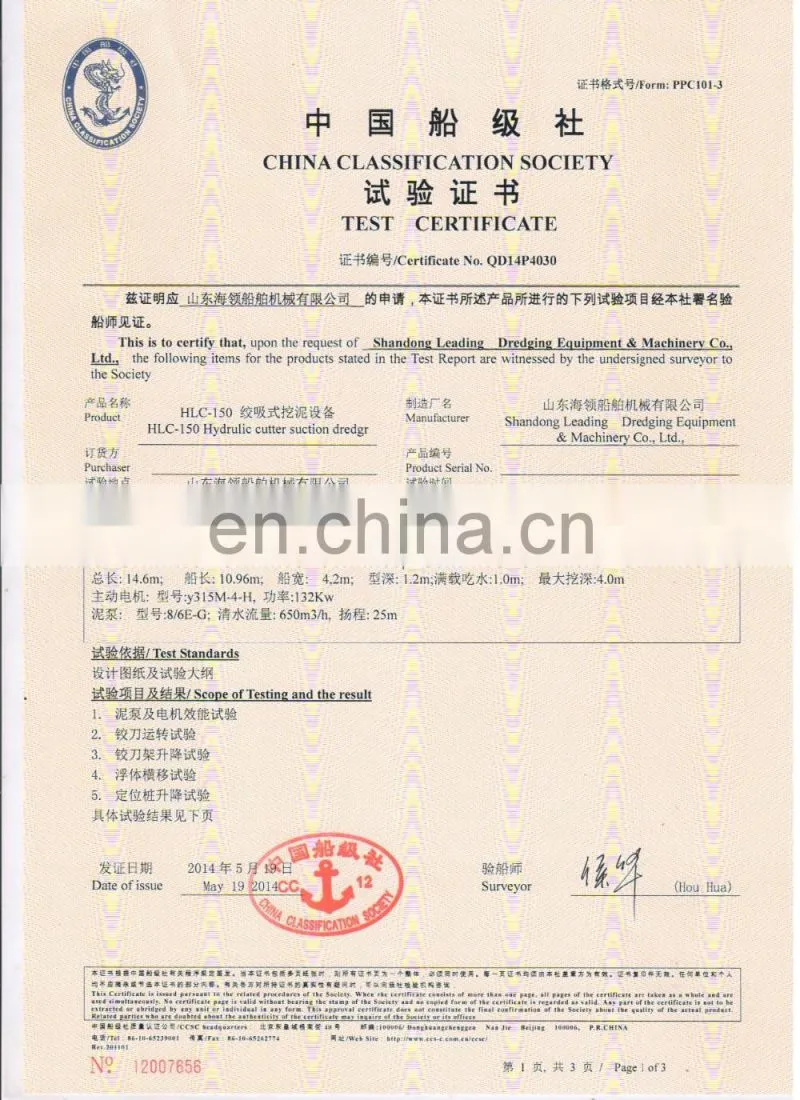

8./ Highling Quality Certification:
Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according to the standards and regulations of CCS. And we have obtained 26 types of Certificate of Utility Model Patent and 23 types of Certificate of Design Patent.

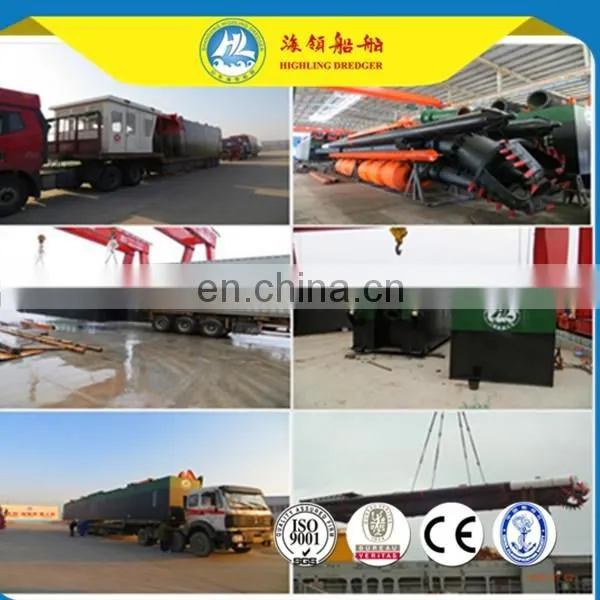

9./ Transportation:

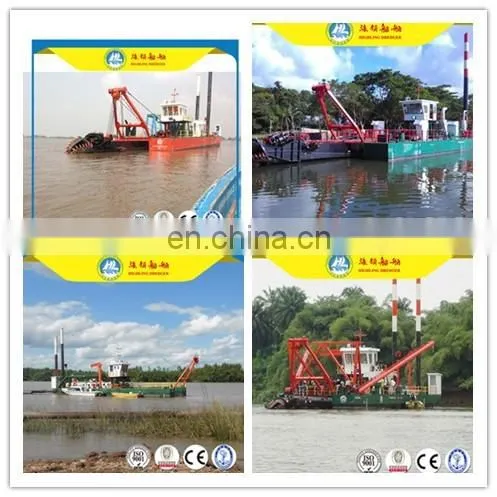

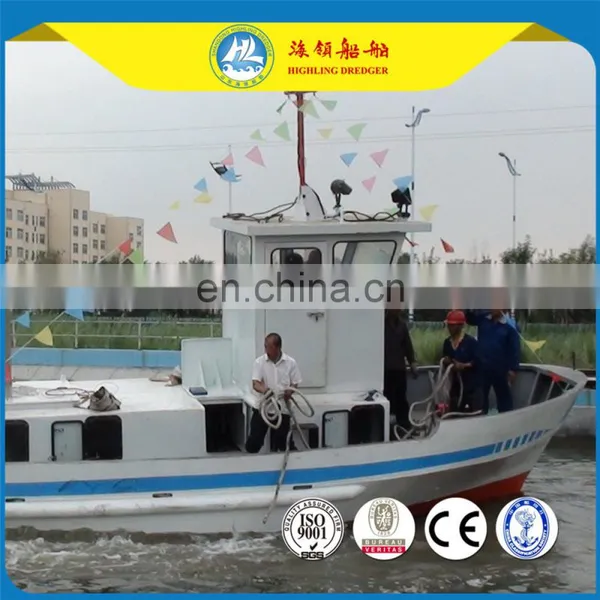

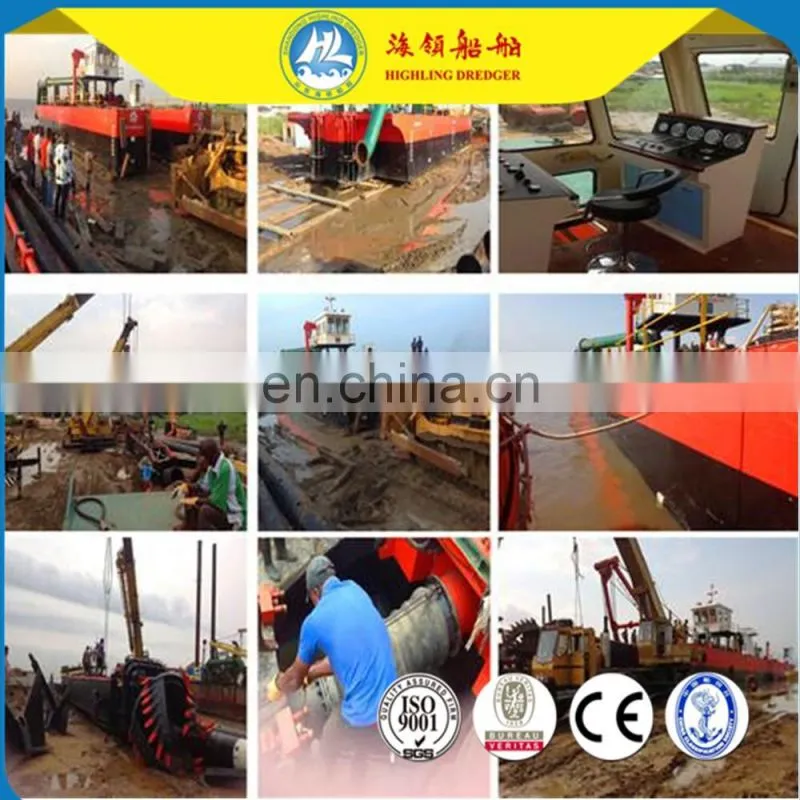

10./Case:
11./ Customers visiting:
12./ Highling advantage:
1.Best price Low cost
2.Energy-efficient
3.Outstanding durability reliable performance
4.Easy Transportation
5.Long service life and warranty
6.High Quality
7.Easy Maintenance
8.Service&Training
13./Contact us :
