wheel bucket dredger
- 30 Set / Sets per Month
- Tianjin/Qingdao
- T/T Credit Card
- HL350 10inch 2000m3/h cutter suction dredger
- HL700Highling cutter suction dredge 7000m3/h
- 2017 direct factory price yacht luxury boat,sports and leisure yacht,jet ski boat for sale
- 2017 luxury sailing yacht cruising boat,sports and leisure yacht for sale
- 2017 direct factory price unmanned aerial vehicle,uav drone sprayer,helocopter drone for agriculture
- Fully automatic cleaning machinery(small type HL-C60) hot sale
Product Details
Brand Name: | HIGHLING | Place of Origin: | Shandong, China | Model Number: | HL-W500 |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | ||
Warranty: | 12 Months | Weight: | 180T | Dimension(L*W*H): | 27*8.5*2.5 |
Power Type: | Diesel | Condition: | New | Draught: | 170 cm |
Dredging Depth: | 15 m |
Product Description

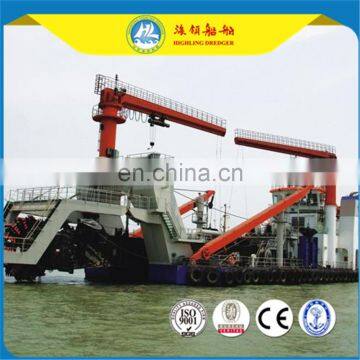

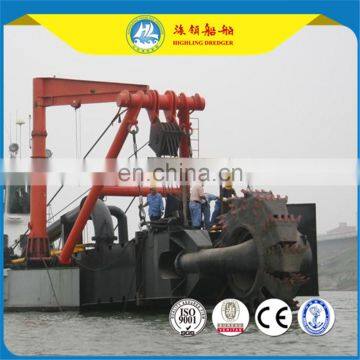

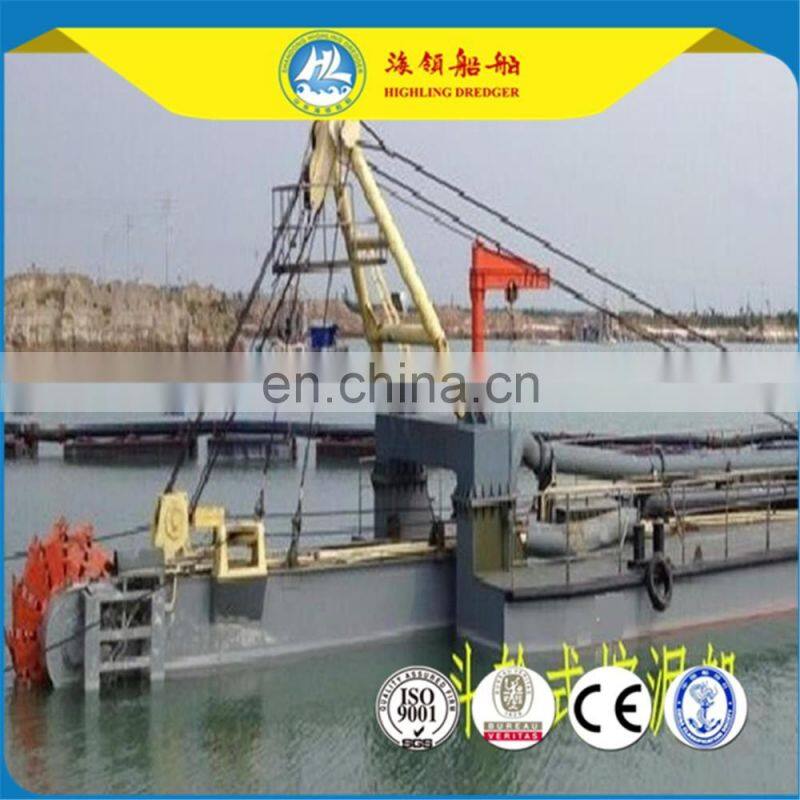

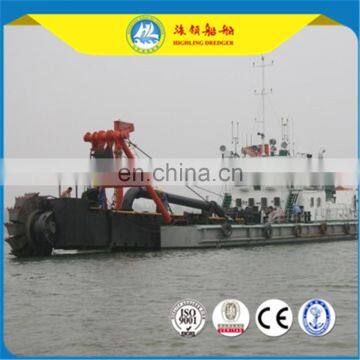

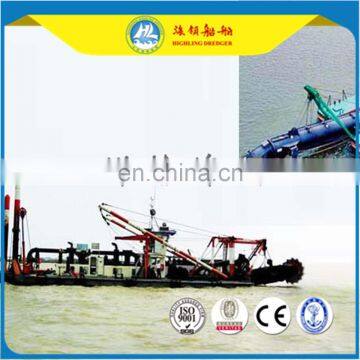

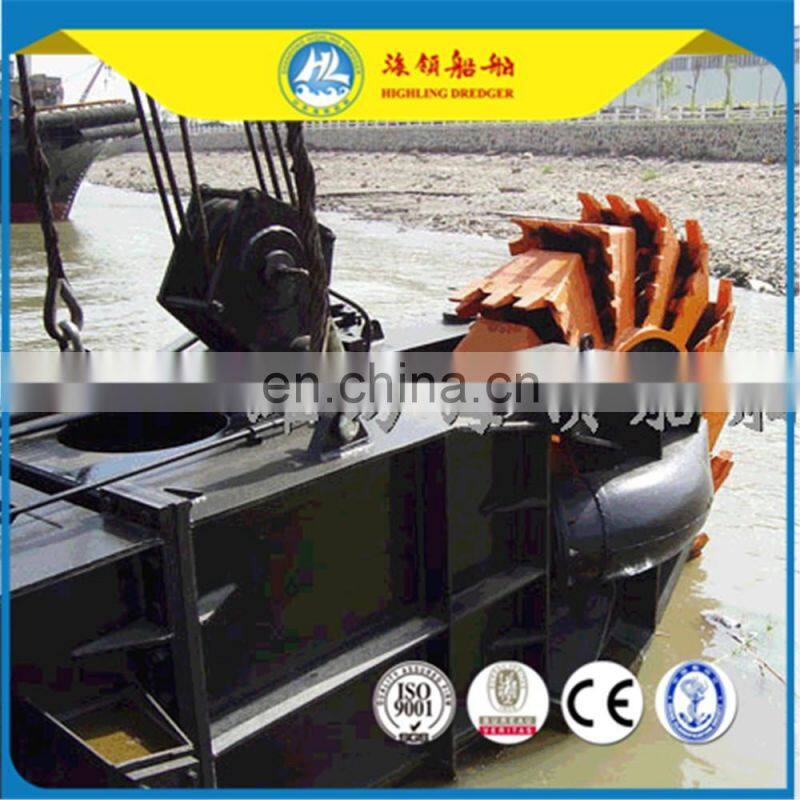

1. Wheel bucket dredger general description:
Wheel Bucket Dredger with full hydraulic control, dismantle and re-assemble easily ,suitable for inland waterway dredging, ditches and reservoir dredging operations. Whole ship adopts hydraulic and centralized control system, consists of three pontoons. detachable type Cabin. equipped with anchor boom, trolley and other devices. Auto lubrication device for cutter ensure long life, independent positioning metal floating ring seal.
2.Main parateter
Wheel Bucket Dredger HL-W500 | |
Dredger LOA | 36.0m |
Hull size(L×B×H) | 27.0*8.5*2.5m |
Main pontoon(L×B×H) | 15.4*3.5*2.5m |
Side pontoon (L×B×H) | 24.0*2.5*2.5m |
Structure | Can be dismantle and re-assemble easily ,box structure, lower delivery cost |
Main engine brand & power | Cummins/1268kw |
Auxiliary engine brand& power | Cummins/298kw |
Harbour generator | 30GF/Cummins |
Discharge pipe Dia. | 500mm |
Max. dredging depth | 15m |
Water flow | 4000m³/h |
Solid sand capacity | 800m³/h |
Discharge distance | 2000m |
Draught | 1.7m |
Hydraulic control system | PLC Siemens |
Total power | 1566kw |
Total fuel oil consumption | 235L/H |

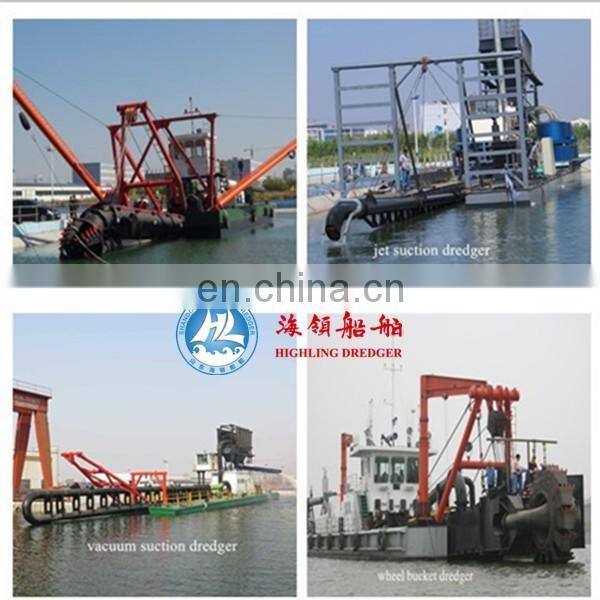

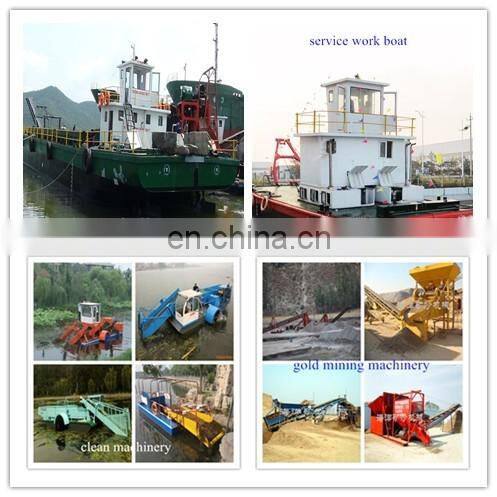

3.Highling main products
4. Our Advantage:
1.Best price Low cost
2.Energy-efficient
3.Outstanding durability reliable performance
4.Easy Transportation
5.Long service life and warranty
6.High Quality
7.Easy Maintenance
8.Service&Training
5. About Highling
Shandong Highling Group, was established in 1992. Over 20 years development,we own three subsidiaries: Shandong Highling Dredging Equipment and Machinery Co., Ltd.,Shandong Haiyang Ore Machinery Manufacturing Co.,Ltd. and Shouguang Yongde Shipping Manufacturing Co.,Ltd., Group covers an area of 1500 acres,with more than 800 employees. Annual turnover achieve 60 million dollars,The products are of a great variety, including 500-20000m³/h large scale dredging and sand mining equipments, gold panning ship, sand transportation ship,multi-function service work boat and clean machinery etc, which widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting,reclamation for channels and land, port construction etc. All the products can be customized according to client’s requirements, formed a complete ship machinery industry chain.
6.Quality Certification:
Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according to the standards and regulations of CCS. And we have obtained 26 types of Certificate of Utility Model Patent and 23 types of Certificate of Design Patent.
7. Our Team
R&D and technical team
Highling Dredgers achieve first-class level in the world with Holland design and technology.Our company has Research and Development Center, Quality Department and After-sales Department. The number of staff is up to 800, including 50 senior engineers on dredger building and researching, 60 designers on machinery construction, 18 engineers on quality inspection, as well as 30 after-sales service engineers.
8.Case
Products are exported to more than 50 countries such as Bangladesh,Pakistan,India ,Brazil,Argentina,Benin,Egypt,Poland,Nigeria,Ukraine,Indonesia,Korea,etc. By virtue of advanced technology, stable&reliable quality, Our company has gained great honors from the domestic and foreign enterprises.
9.Highing service:
