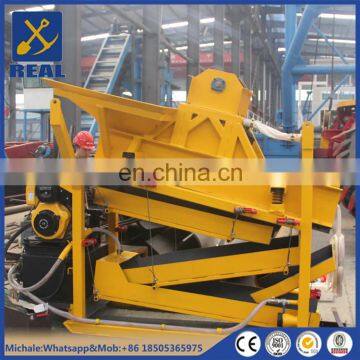

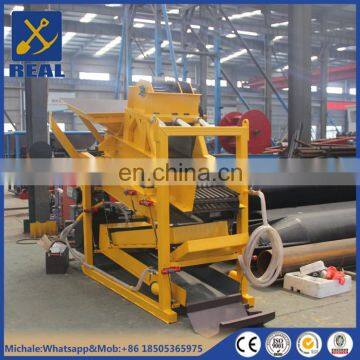

VGM50 Vibrating Gold Mining Equipment

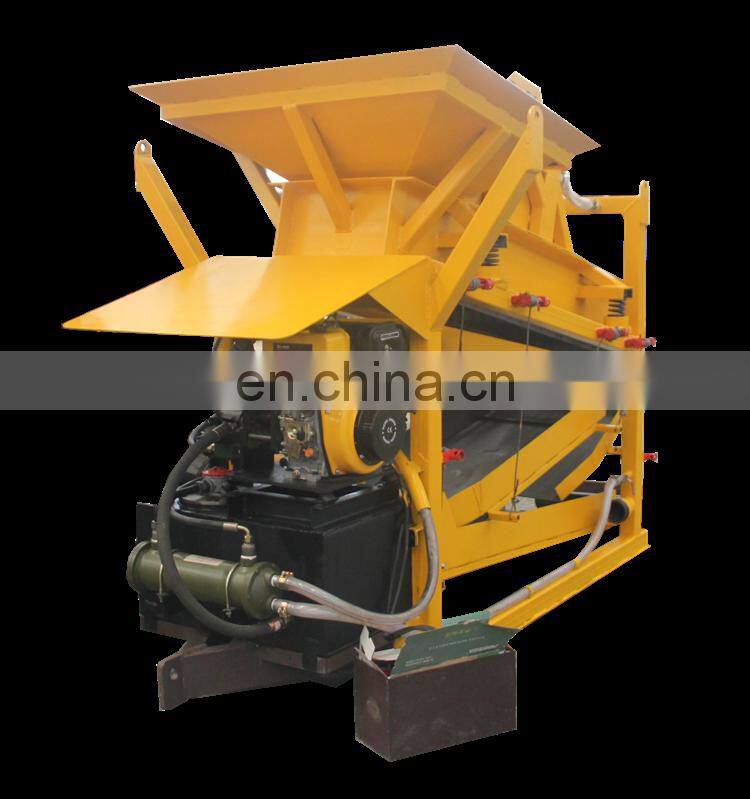

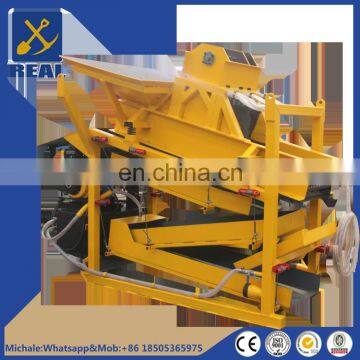

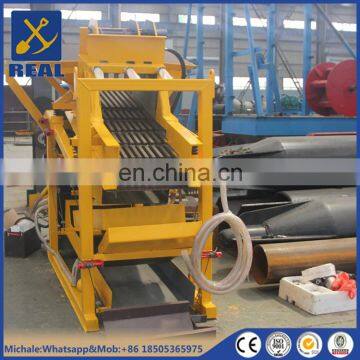

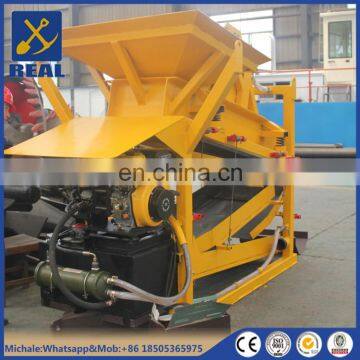

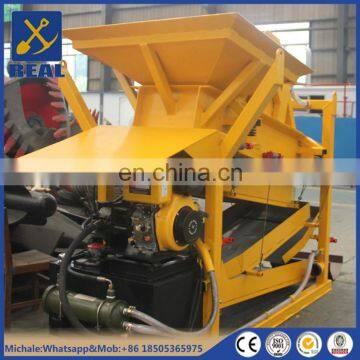

This Gold Wshing Plant is a complete,portable equipment.

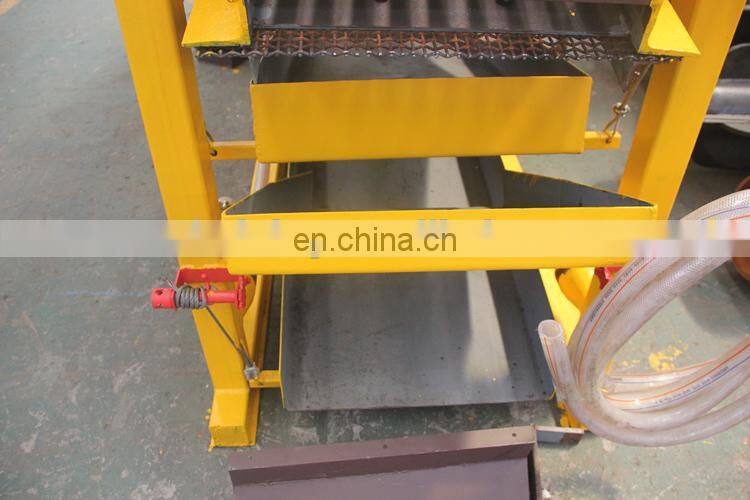

Excavator pour the materials on grizzly bar to screening,gravel rinsed by high pressure water then discharge form the hindside,material particle size can reach 30cm.The smaller particles fall to the second floor screen for separation,after sifting through the second layer, the sand water mixture flows into two separate adjustable sluice for gold enrichment.This sluice can be adjusted front and rear angle,left and right balance to achieve maximum recovery rate by adapting to different terrain and operating conditions.
This machine can be cleaned easily and quickly,gold mat can be removed to flush quickly.
Driving Systerm:
All of the drives are 100% hydraulic, without electricity.Our system is driven directly by a hydraulic motor without a belt or chain drive, which means that a lot of transmission mechanisms are reduced.Hydraulic drive system can reduce fuel consumption and reduce mechanical loss.
Sluice Recovery System:

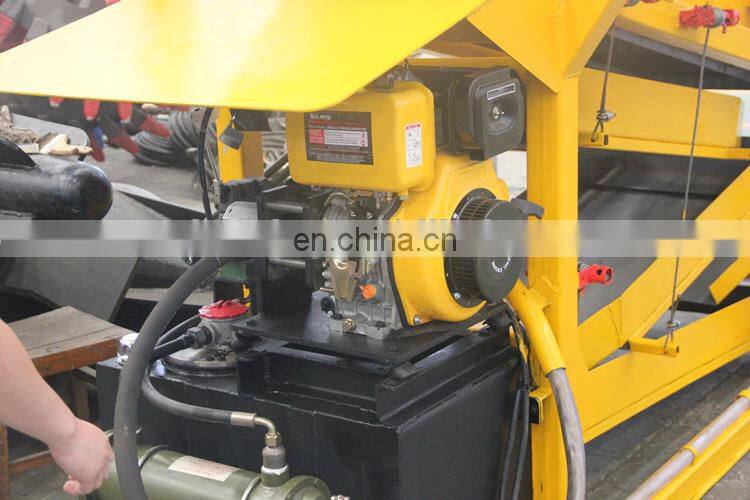

Engine:

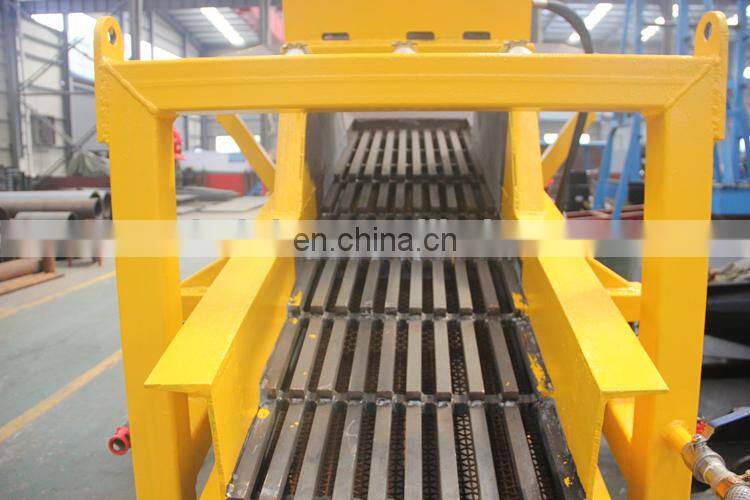

Vibrating Grizzly and MN Screen Mesh:
Hydraulic Oil Cool System:
No |
Item |
Spec |
Remark |
1 |
Overall Length |
2.96m |
|
Overall Wideth |
0.9m |
|
|
Overall Height |
2.2m |
|
|
2 |
Vibrating Screen Area |
1m2 |
|
3 |
Gold Sluice Box Area |
1.5m2 |
Zigzag |
4 |
Driving Power |
LA192 |
|
Power/Rotate Speed |
14hp/1800r |
|
|
5 |
High Pressure Water Pump |
Diesel Pump 4inch |
|
Water Flow |
90m3/h |
|
|
Lifting |
32m |
|
|
6 |
Motor |
LA186F |
|
Rated Power |
9hp/3600r |
|
|
7 |
Handling Capacity |
50t/h |
|
8 |
Operator |
One people |
|
9 |
Fuel Consumption |
16.4Kw*0.178L=2.92L/hour |
One set can use LCL shipping, 2-3 setscan send by full container.
Qingzhou Real Mining Equipment Science Technology Co.,Ltd is located in Huanglou industrial zone of Qingzhou city, Shandong, China.
We are the professional manufacturer of gold mining machinery and accessories in China, we supply the overall solutions involves R&D, designing ,production, sales and after sales services in the fields of gold mining.
We own a factory covers 30000 square meter with building area 6000 square meter including the Gold Research Centre of our own both for alluvial sand gold and rock gold. Our technical team of engineers also closely cooperates with the famous gold institute in China.
Less than 10000 USD normally T/T in advance; More than 10000 USD normally 30% T/T in advance, the left before shipment.
