Lug Nut 1502 Hammer Union
- 1000 Set / Sets per Month
- Tianjin Port
- T/T Credit Card
Product Details
Brand Name: | HUAYU | Place of Origin: | Hebei, China | Model Number: | FIG 1502 |
Type: | Union | Shape: | Equal | ||
Technics: | Forged |
Product Description
Lug Nut 1502 Hammer Union

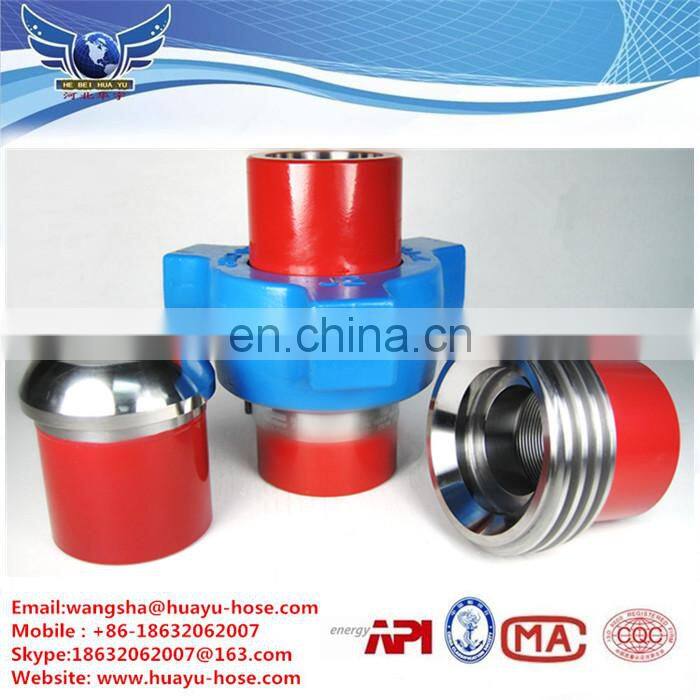

Figure 1502 hammer union have replaceable lip type rubber seal , can used in high pressure systems because the union have wall thickness and stoutness design . These hammer union have blue nut and red subs , recommended service cementing ,fracturing ,acidizing ,testing , and choke-and-kill lines also used for non-pressure seal configurations . Available for sour gas service of 10000psi cold working pressure . It’s cold working pressure 15000PSI ,test pressure 22500PSI .Available in threaded and butt weld end connections .
Figures and the details for fig1502:

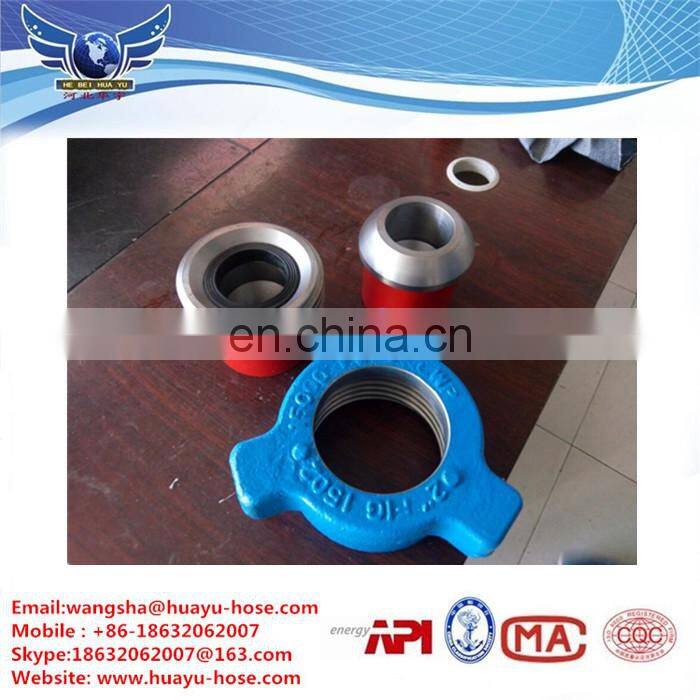

u Replaceable, lip type seal
u Available for sour gas service:10000psi cold working pressure, butt weld or non pressure seal configurations only
u Cold working pressure : 15000psi
u Test pressure : 22500 psi
u Butt-weld and threaded available ( the welding is Sch XXH)
u No nuts, bolts, or wrenches required
Products Specifications :
Nominal pipe size | Total length | countersink | Nut radius | Material | Weight | ||||||
in | mm | in | mm | in | mm | in | mm | nut | subs | lbs | kgs |
11/2 | 38.1 | 513/32 | 137.0 | 1/4 | 6.4 | 321/32 | 93.0 | SF | SF | 12.0 | 5.4 |
2 | 50.8 | 7 | 177.8 | 15/64 | 6.0 | 33/4 | 95.3 | SF | SF | 21.0 | 9.5 |
3 | 76.2 | 75/8 | 193.7 | 3/8 | 9.5 | 41/2 | 114.3 | SF | SF | 31.0 | 14.1 |
Hebei Huayu Special Rubber Co., Ltd. We have many years experience to produce the unions also have advanced equipment and skilled workers to control the product quality and we have been focusing on research and development the best products in recent years . With our best service attitude and the good products ,we have established long term cooperation relationship with many large companies and we have exported our union products to many countries.
We are the leading manufacturer of complete union products, such as fig 100 hammer union , fig 200 hammer union ,fig 206 hammer union ,fig 207hammer union , fig 400 hammer union , fig 602 hammer union ,fig 1002 hammer union , fig 1003 hammer union , fig 1502 hammer union . They are used pipe line and high pressure equipment connection ,they have different cold working pressure and structure but our union are easy installation and uninstall .
