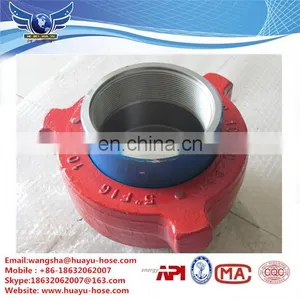

Hammer Union Seals, Wing Unions, Lug Unions

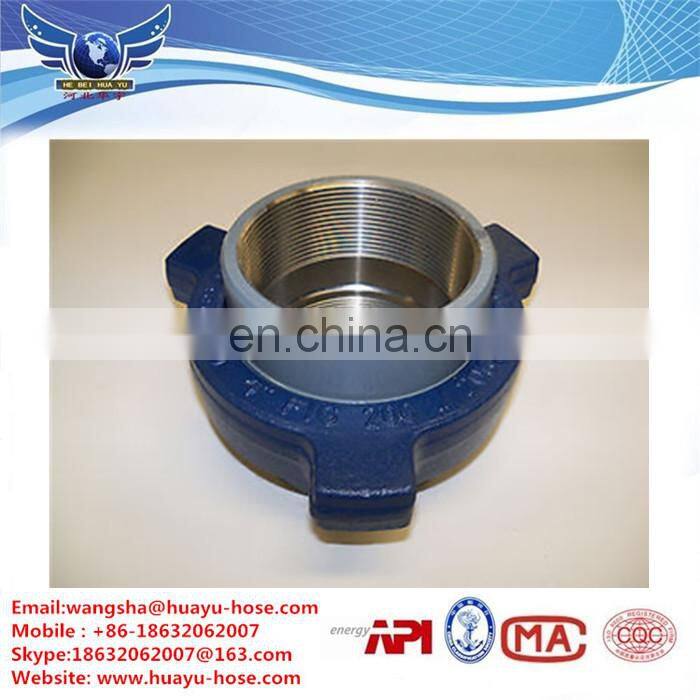

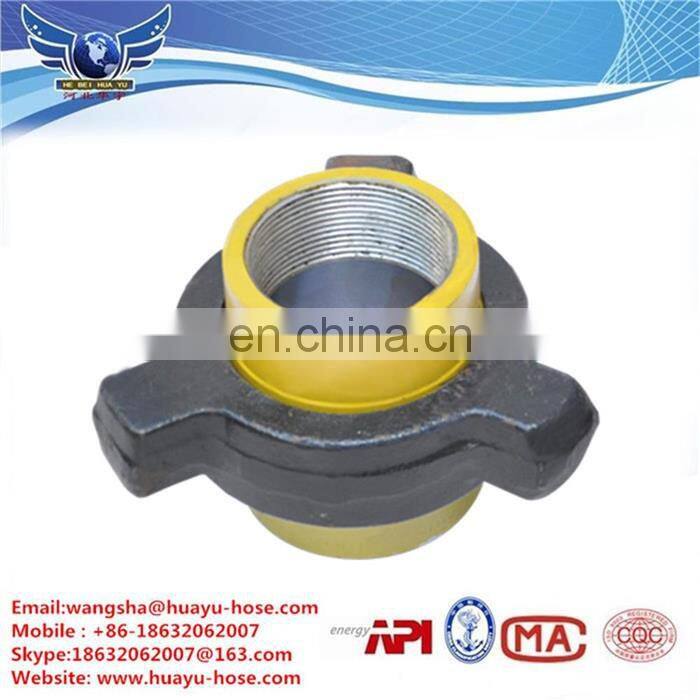

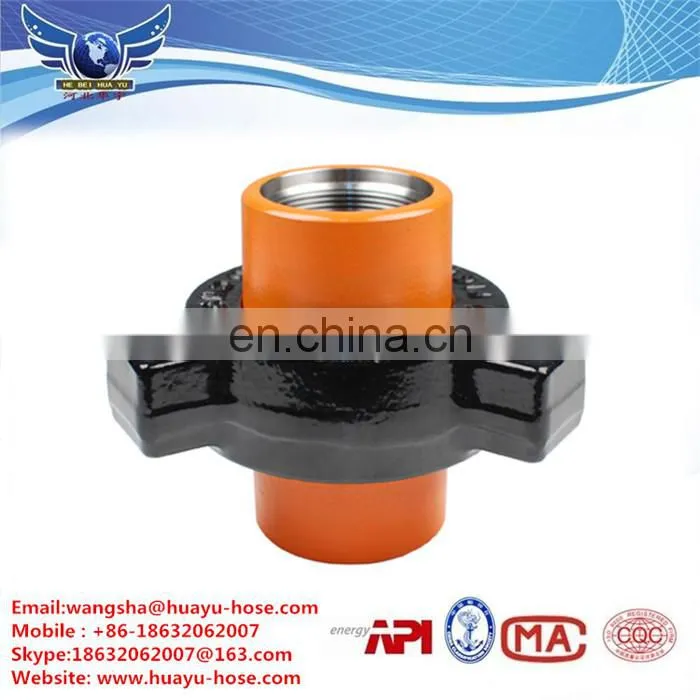

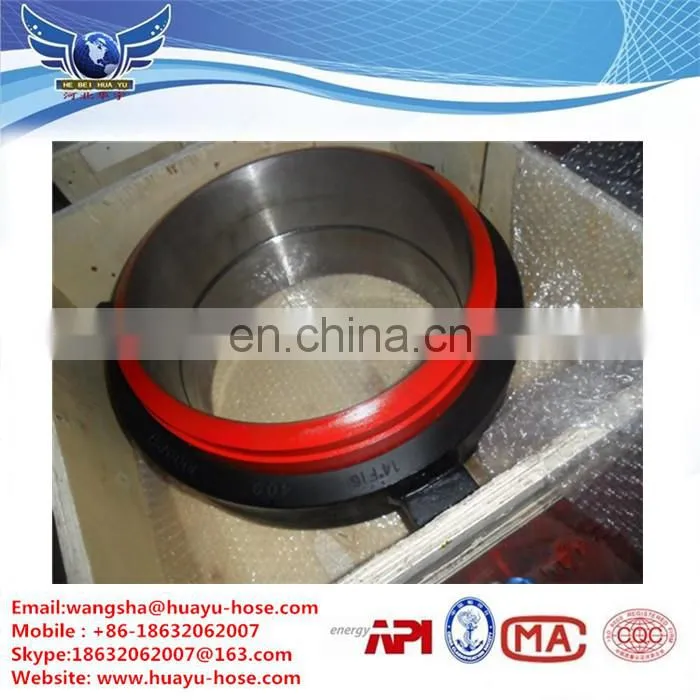

Figure hammer union use replaceable, lip type rubber seal provides primary seal, protects secondary metal-to-metal seal, and minimizes flow turbulence .It’s available for manifold line connections , mud service , sour gas service,air,water, oil, gas etc.The union service at 6000PSI cold working pressure, have black nut and orange subs .
The details of fig hammer union :
u Cold working pressure :6000PSI
u Test pressure : 9000PSI
u Size : 1’’- 4’’
u Have replaceable, lip type rubber seal
u Butt-weld and threaded available(the welding Sch.80)
Products Specification :
Nominal pipe size |
Total length |
countersink |
Nut radius |
Material |
Weight |
||||||
in |
mm |
in |
mm |
in |
mm |
in |
mm |
nut |
subs |
lbs |
kgs |
1 |
25.4 |
317/32 |
89.7 |
1/4 |
6.4 |
25/16 |
58.75 |
SF |
SF |
3.5 |
1.6 |
2 |
50.8 |
51/4 |
133.3 |
1/4 |
6.4 |
39/16 |
90.5 |
SF |
SF |
13.25 |
5.9 |
3 |
76.2 |
63/8 |
161.92 |
3/8 |
9.5 |
45/8 |
117.5 |
SF |
SF |
21.0 |
9.5 |
4 |
101.6 |
81/16 |
208.0 |
3/8 |
9.5 |
51/4 |
133.4 |
SF |
SF |
33.0 |
15.0 |

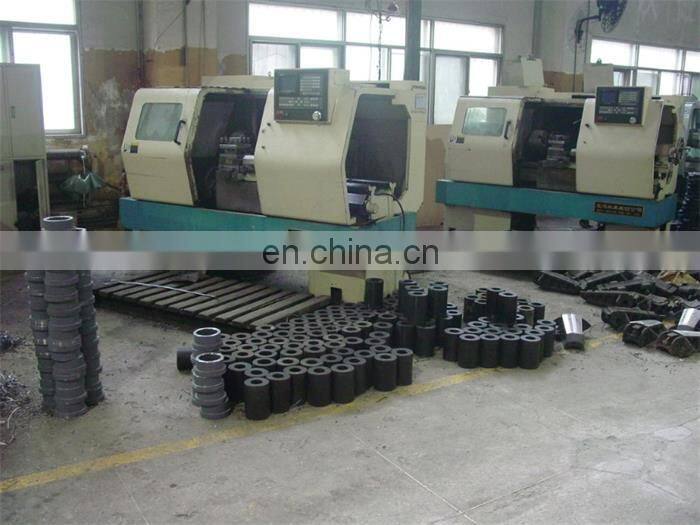

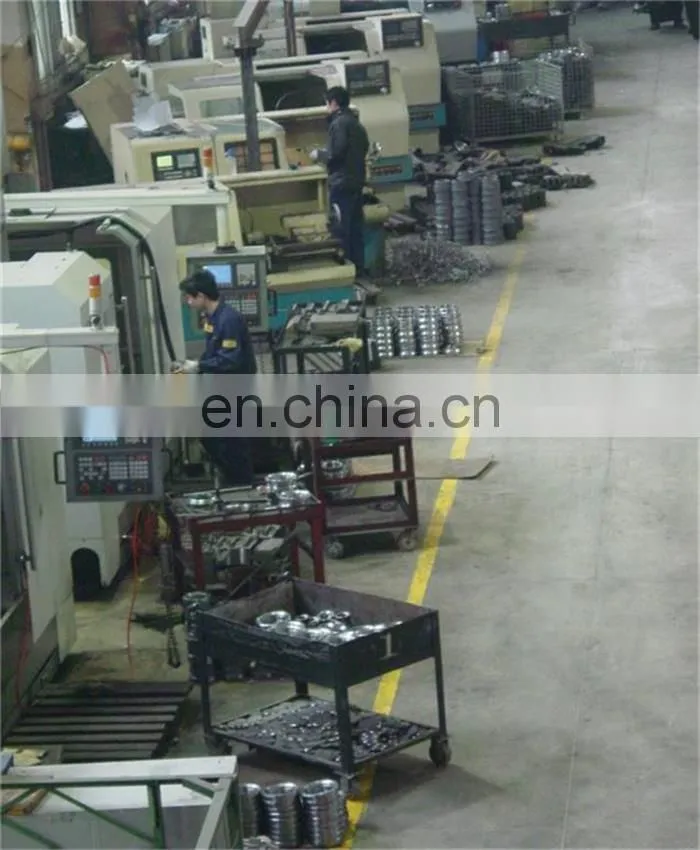

Hebei Huayu Special Rubber Co., Ltd. We have many years experience to produce the unions also have advanced equipment and skilled workers to control the product quality and we have been focusing on research and development the best products in recent years . With our best service attitude and the good products ,we have established long term cooperation relationship with many large companies and we have exported our union products to many countries.

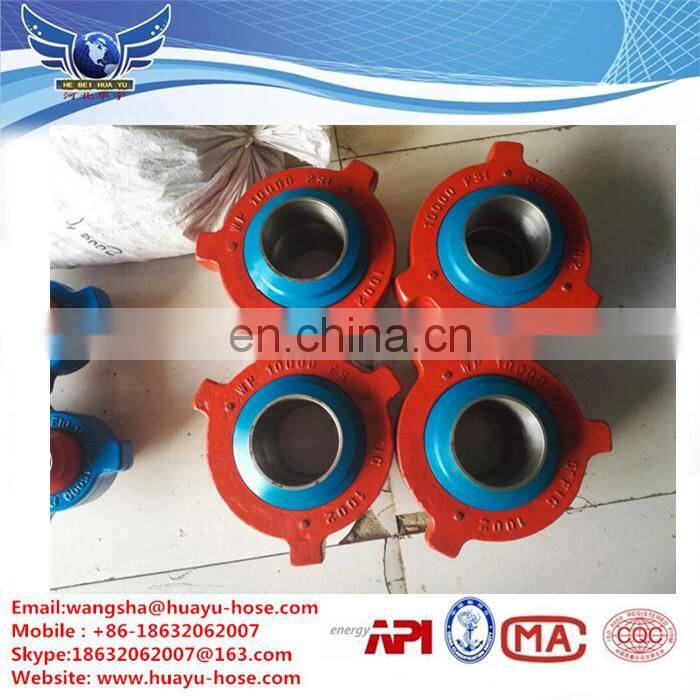

We are the leading manufacturer of complete union products, such as fig 100 hammer union , fig 200 hammer union ,fig 206 hammer union ,fig 207hammer union , fig 400 hammer union , fig602 hammer union ,fig 1002 hammer union , fig 1003 hammer union , fig 1502 hammer union . They are used pipe line and high pressure equipment connection ,they have different cold working pressure and structure but our union are easy installation and uninstall .
