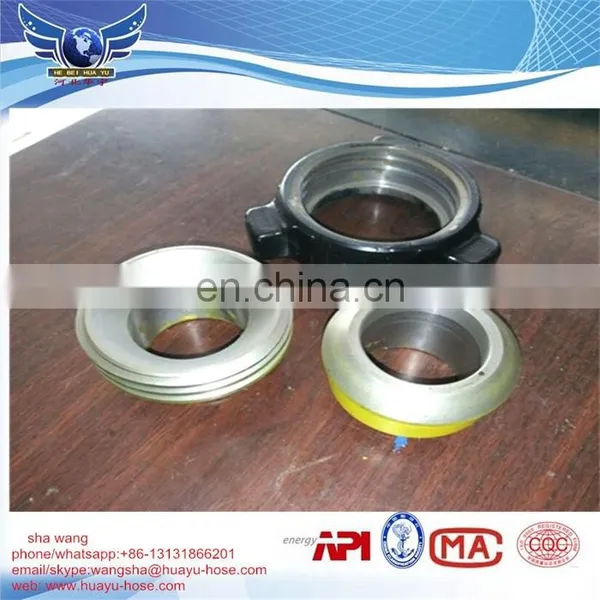

Fig 206 Hammer union
2,000 psi cold working pressure
Recommended service:
Manifold line connections, suction service, and corrosion service
Features:
• O-ring in male sub improves sealing and protects
metal-to-metal seal against corrosion
• Replaceable O-ring extends union service life
• 1 to 8 inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline, can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 206Hammer union, 2000PSI NSCWP, the test pressure 3000PSI blue nut, grey parts.
Nominal pipe size |
Total length |
Nut radius |
Material |
Weight |
|||||
in |
mm |
in |
mm |
in |
mm |
nut |
subs |
Ibs |
kgs |
1 |
25.4 |
211/16 |
68.3 |
115/16 |
49.2 |
SC/SF |
SF |
1.75 |
0.8 |
11/2 |
38.1 |
27/8 |
73.0 |
23/8 |
60.3 |
SC/SF |
SF |
2.37 |
1.1 |
2 |
50.8 |
35/16 |
84.1 |
229/32 |
73.8 |
SC/SF |
SF |
5.25 |
2.4 |
21/2 |
63.5 |
41/16 |
103.2 |
311/16 |
93.7 |
SC/SF |
SF |
10.0 |
4.5 |
3 |
76.2 |
43/8 |
111.1 |
37/8 |
98.4 |
SC/SF |
SF |
15.25 |
6.9 |
4 |
101.6 |
413/16 |
122.2 |
5 |
127.0 |
SC/SF |
SF |
20.0 |
9.1 |
6 |
152.4 |
65/8 |
168.3 |
67/16 |
163.5 |
SC/SF |
SF |
44.5 |
20.2 |
8 |
203.2 |
71/4 |
184.2 |
711/16 |
195.3 |
SC/SF |
SF |
61.0 |
27.7 |
Other Hammer Unions We Offer
Are you a manufacturer?
Yes, we are.
Could you do as our drawing?
Yes.
Can you give me your quatation sheet?
Yes, I'll e-mail to you.
