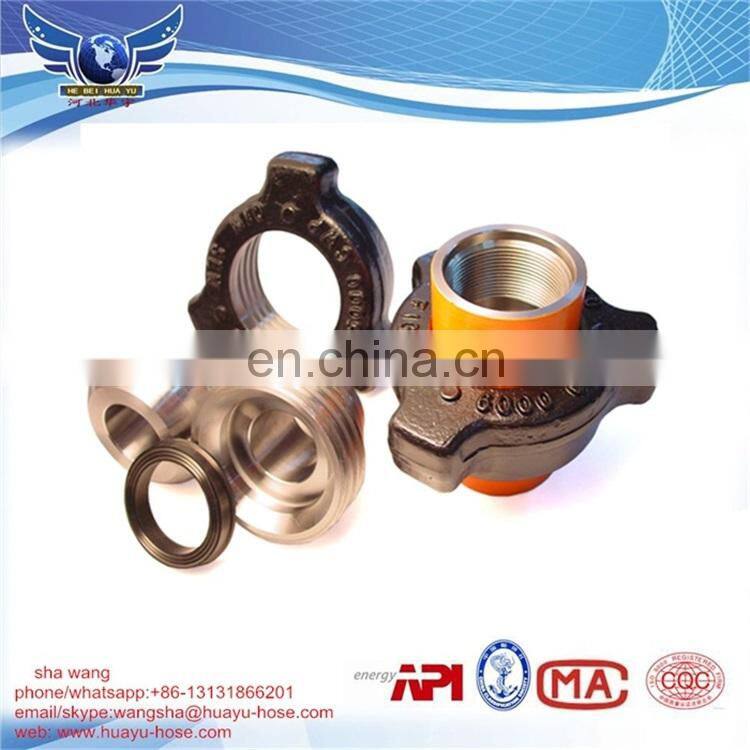

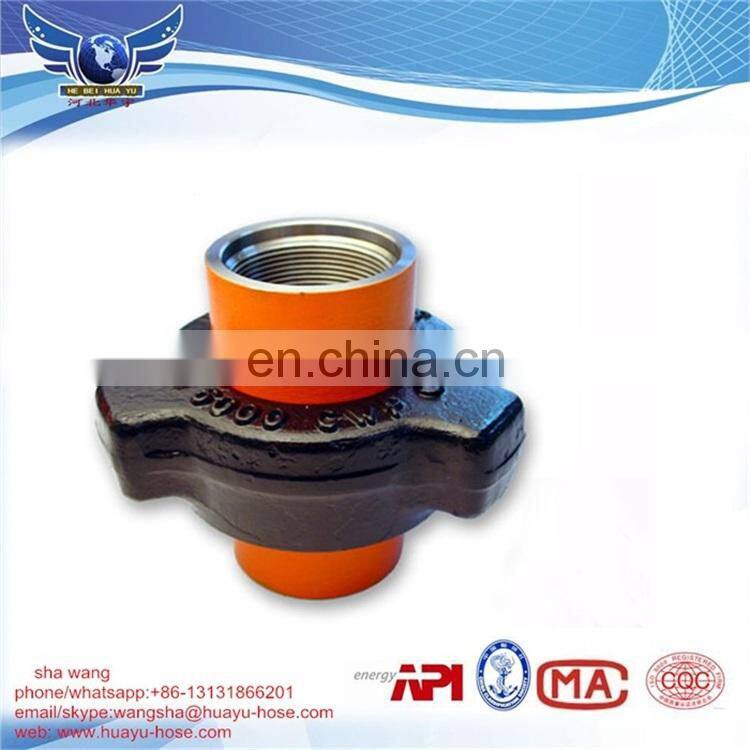

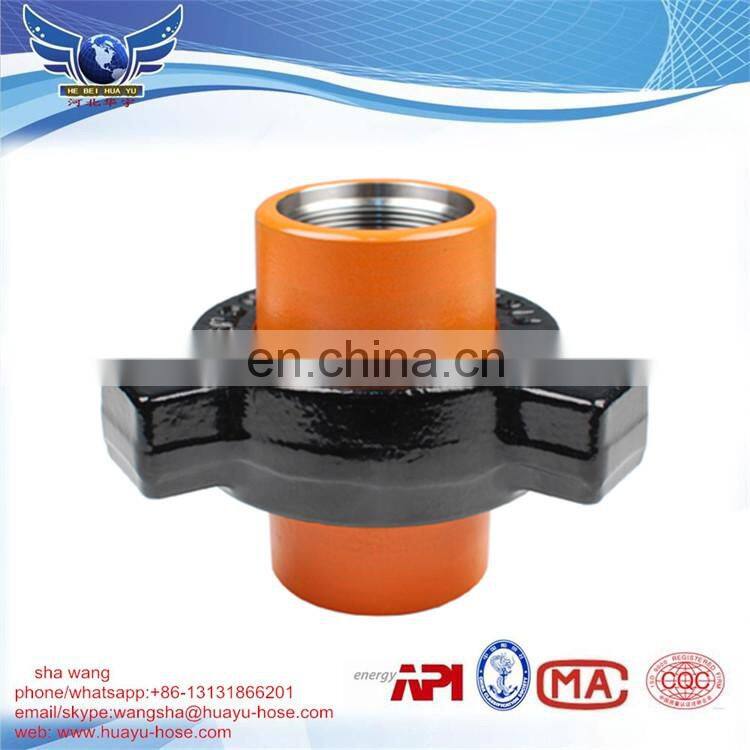

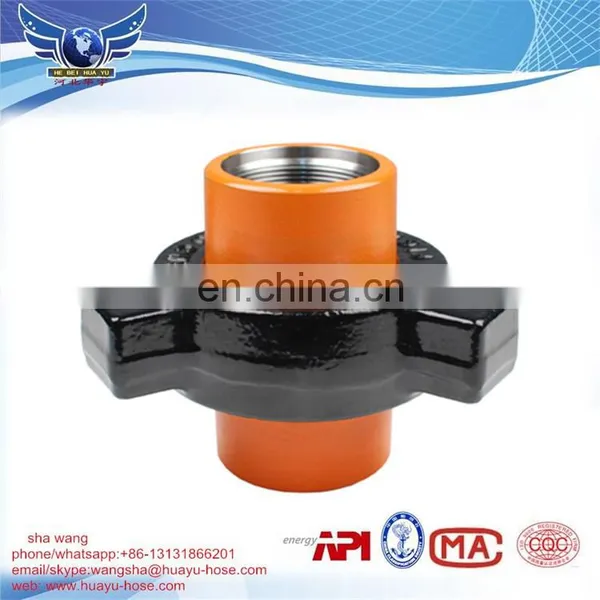

Fig 602 Hammer union
6,000 psi cold working pressure
Recommended service:
Manifold line connections, suction service, and corrosion service
Features:

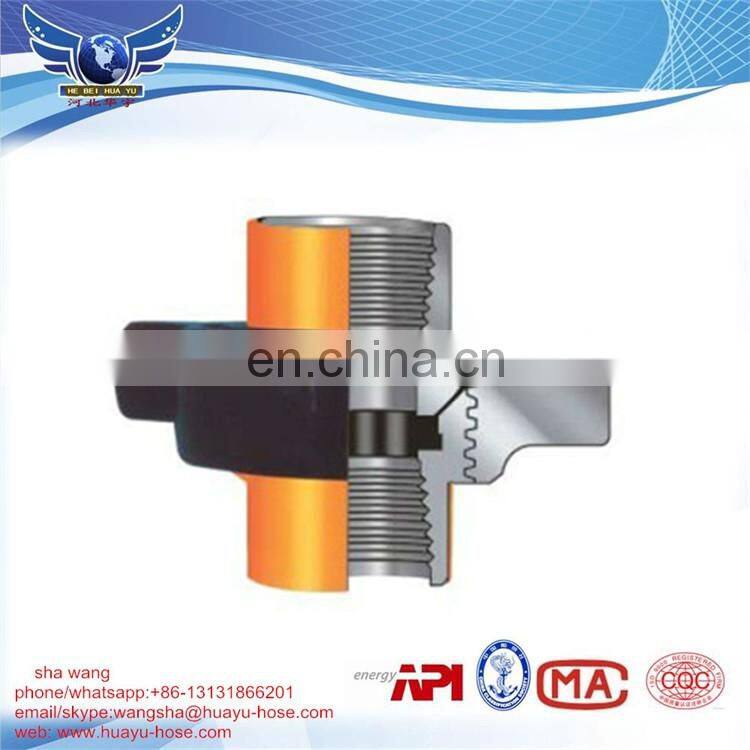

• O-ring in male sub improves sealing and protects
metal-to-metal seal against corrosion
• Replaceable O-ring extends union service life
• 1 to 6 inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline, can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.80.
C: type 602Hammer union, 6000PSI NSCWP, the test pressure 9000PSI black nut, orange subs.
Some datas for your reference
Nominal pipe size |
Total length |
Nut radius |
Material |
Weight |
|||||
in |
mm |
in |
mm |
in |
mm |
nut |
subs |
Ibs |
kgs |
1 |
25.4 |
317/32 |
89.7 |
25/16 |
58.75 |
SF |
SF |
3.5 |
1.6 |
2 |
50.8 |
51/4 |
133.3 |
39/16 |
90.5 |
SF |
SF |
13.25 |
5.9 |
3 |
76.2 |
63/8 |
161.92 |
45/8 |
117.5 |
SF |
SF |
21.0 |
9.5 |
4 |
101.6 |
81/16 |
208.0 |
51/4 |
133.4 |
SF |
SF |
33.0 |
15.0 |

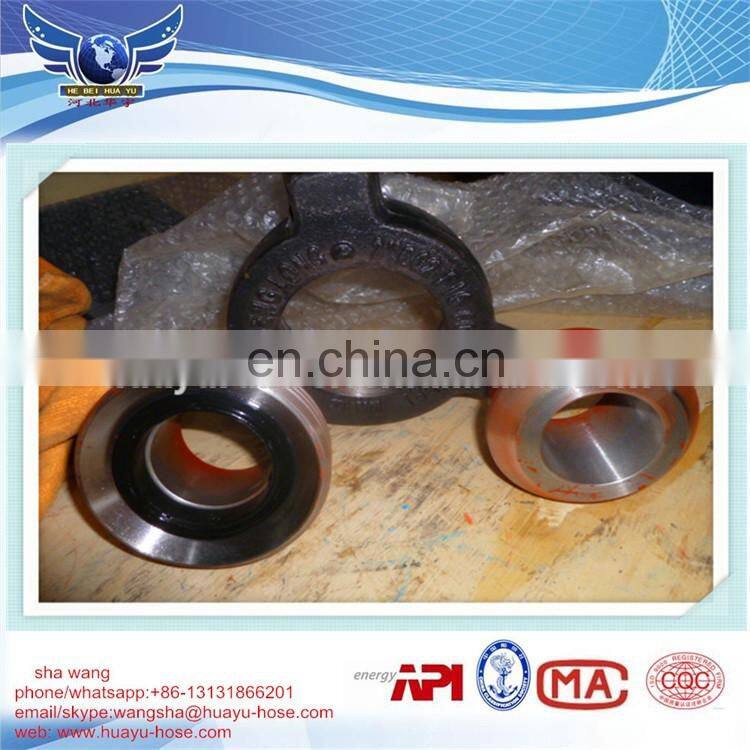

Products show
Other Hammer Unions We Offer
Are you a manufacturer?
Yes, we are.
Could you do as our drawing?
Yes.
Can you give me your quatation sheet?
Yes, I'll e-mail to you.
