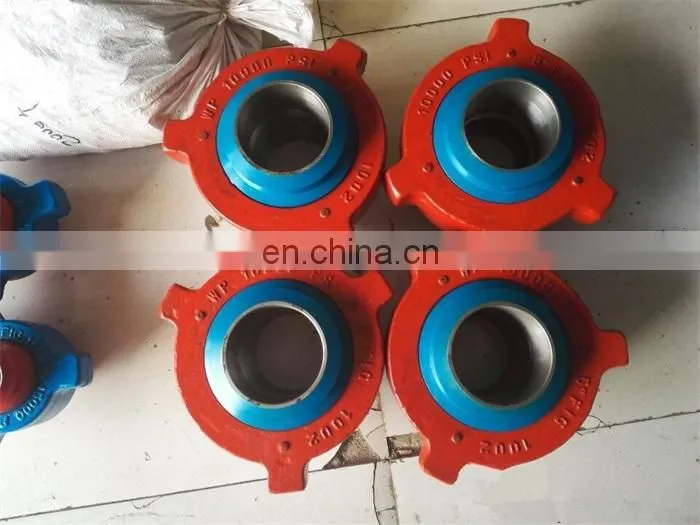

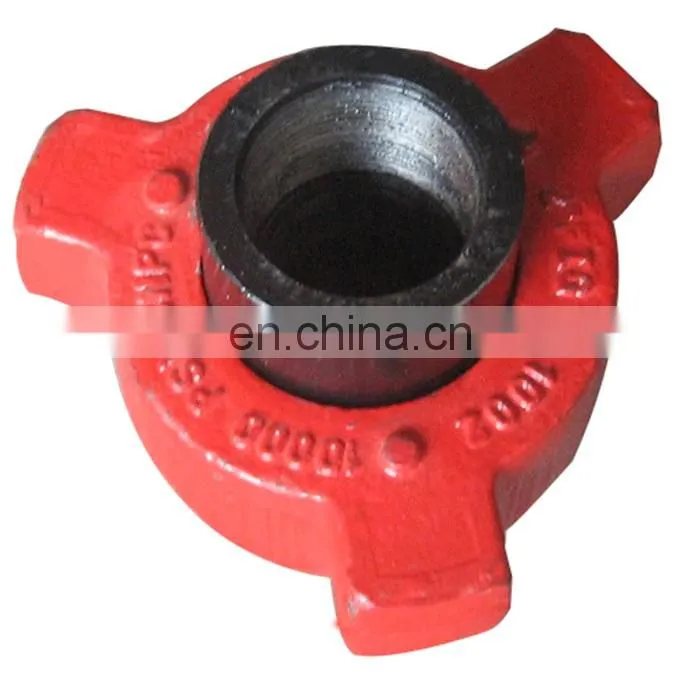

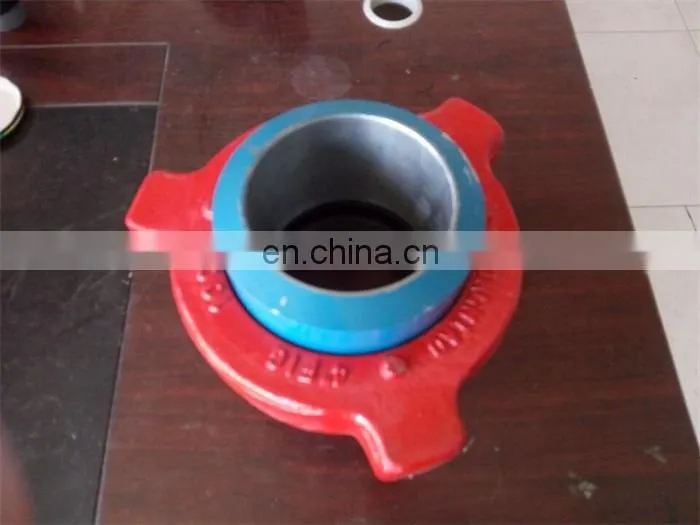

Help CenterHigh Quality Fmc Weco Fig 1002 Hammer Union
Related Products
-
FMC Weco Figure 1003 Hammer UnionUS$ 0.5 - 50MOQ: 100 Pieces -
Carbon Steel Forging Hammer Union Fig1502 With NPT ThreadedUS$ 0.5 - 10.5MOQ: 100 Pieces
-
Oil Equipment Used 2 Inch Weco Figure 100 Hammer UnionUS$ 0.5 - 10.5MOQ: 100 Pieces
-
Mud Tank Air o UnionUS$ 7 - 166MOQ: 10 Meters
-
High Pressure Pipe Fittings Stainless Steel Fmc Weco Figure 200 Fig206 Fig400 Hammer Union for Oil DrillingUS$ 0.5 - 10.5MOQ: 100 Pieces

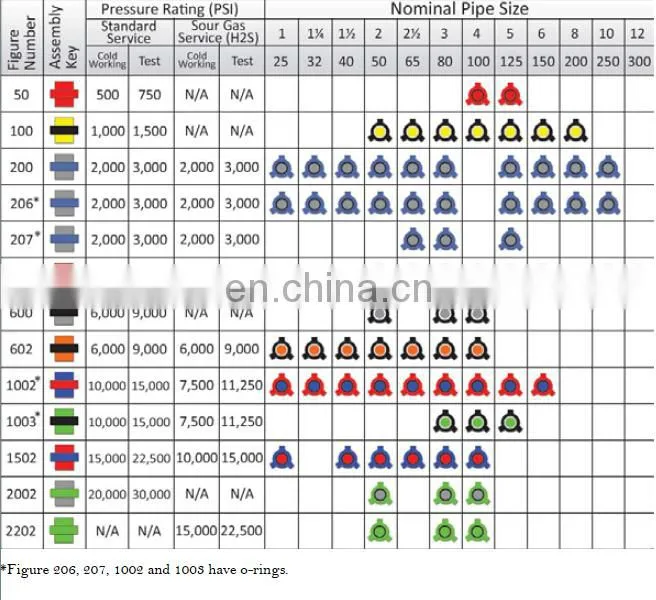

10,000 psi cold working pressure through 4-inch sizes; 7,500 psi cold working pressure, 5 and 6-inch sizes.
Recommended service:
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features:

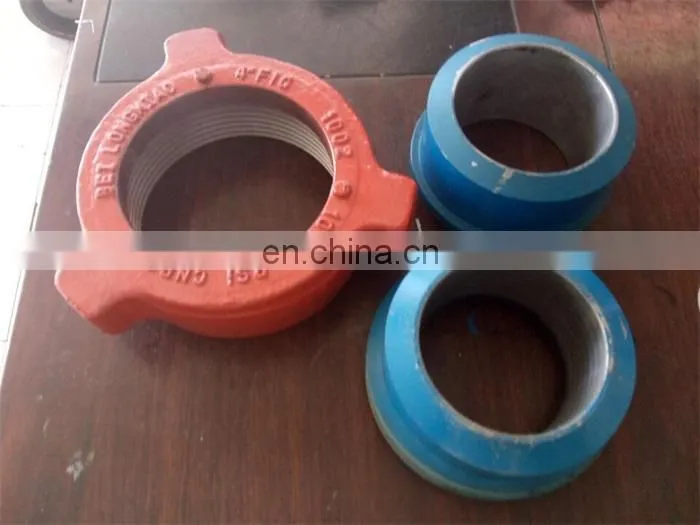

• Replaceable, lip-type seal
• 5 and 6-inch sizes have O-rings for primary seals
• Available for sour gas service: 7,500 psi cold working pressure
• Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers.
Nominal pipe size |
Total length |
countersink |
Nut radius |
Material |
Weight |
||||||
in |
mm |
in |
mm |
in |
mm |
in |
mm |
nut |
subs |
Ibs |
kgs |
1 |
25.4 |
31/2 |
88.9 |
1/4 |
6.4 |
21/4 |
57.2 |
SF |
SF |
3.5 |
1.6 |
2 |
50.8 |
53/16 |
131.8 |
1/4 |
6.4 |
311/16 |
93.7 |
SF |
SF |
13.25 |
5.9 |
3 |
76.2 |
63/8 |
161.9 |
3/8 |
9.5 |
43/8 |
117.5 |
SF |
SF |
21.0 |
9.5 |
4 |
101.6 |
81/16 |
204.8 |
3/8 |
9.5 |
51/4 |
133.4 |
SF |
SF |
39.5 |
17. |
Can be produced according to customer requirements.
