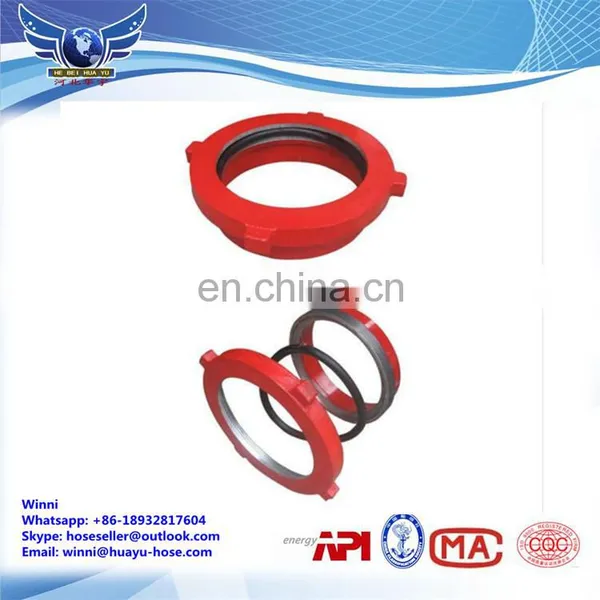

Rotary mud tank union manufacturer

Manufactures and supplies union is for mud tanks, mud tank connecting lines and pump suction flanges. These are manufactured for a maximum line pressure of 150 PSI. The nitrile seal provides compressive seal, the crosssection of the seal designed to provide greater sealing surface. The union   is designed to take a maximum of 7° misalignment on the pipe. Sizes which are catered for are 6", 8", 10" and 12", 6", 8" and 10" sizes can be socket welded to pipe or butt welded to tubing. 12" size requires butt weld.

Features

• Elongated cross-section of seal ring ensures greater sealing surfacewhen in contact with the pipe

• Makes up with hammer

• Molded nitrile seal provides a compression seal

• Tank union   accepts up to 7° pipe misalignment

• Available in 6, 8, 10, and 12 inch sizes

• 6”, 8”, 10” union  s may be socket welded or butt welded to piping. 12" union  s require butt-weld only

• Large diameter, medinm-low voltage and frequently dismantling, rapid installation.

Technical parameter:

1. Medium available: mud, oil, water

2. Medium temperature: 0°C~90°C

3. Ambient temperature: -30°C~50°C

4. Medium presssure: 0.6Mpa

Please see the specification as following:

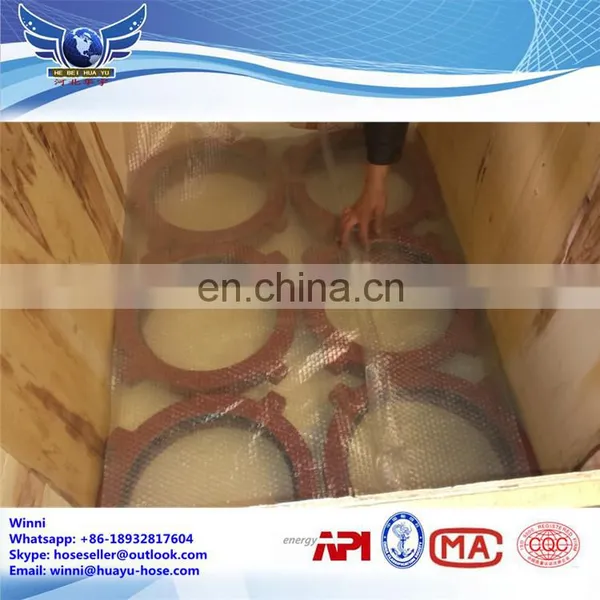

wooden package or as your special requirement

Shipping

Our company has service department and we can offer good service for our client

Our complete sales staff ensures that  you receive a quality hose at the right price.Pressure testing of union available on request . We can package union as your requirement.

Since the inception ,relying on the science and technology for development ,Established long-term cooperation with oil fields,steel mills ,mining ,machinery and other industries companies in the domestic .and export to South Korea,Monglia,Russia and other countries. More details of our company and productions please visit our homepage:

Our company also  produces a variety of rubber hoses, like the drilling hose, concrete hose,suction&discharge hose, dredge hose, mining hose and so on. If you have any question or demand, please contact us.
