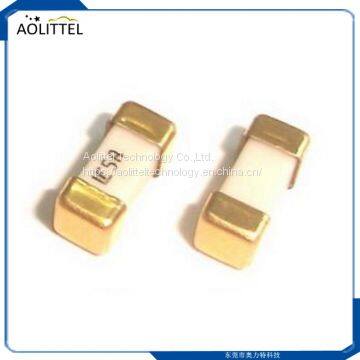

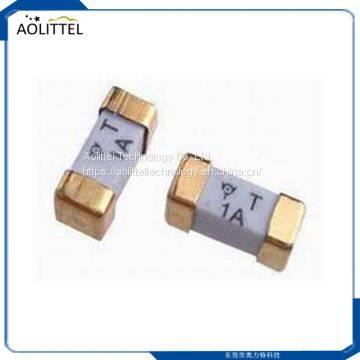

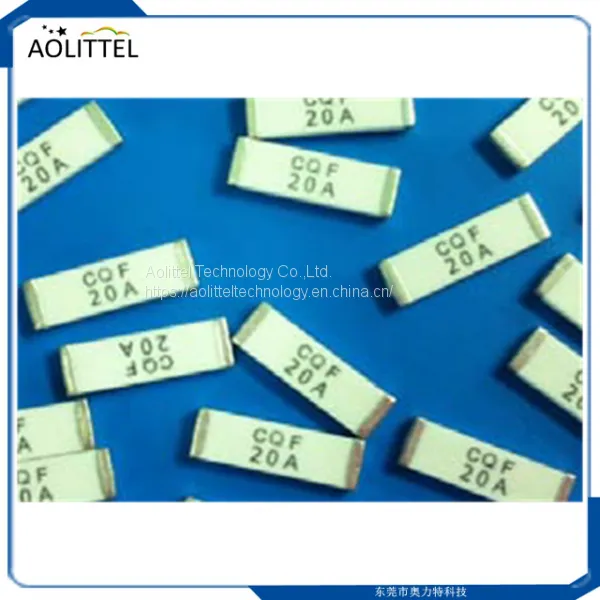

High Voltage Explosion Proof 10.1x3.1mm 4012 Time Delay Surface Mount Fuse 1A 600VAC 350VDC
AOLITTEL NANO² SMD fuse is ideal for use in Datacom and telecom equipment
The Littelfuse 463 series NANO² fuse is a fast-acting, very high current fuse designed for high operating current applications. It offers enhanced thermal cycling endurance (up to 500 cycles). Its low temperature rise and excellent temperature stability characteristics make it ideal for use in Datacom and telecom equipment like high-end servers, base stations, power supplies, and blade computing applications. The 463 series offers high-amp circuit protection, ultra-high interrupting ratings (up to 500 A at 72 VDC), and a compact (10.1 mm x 3.12 mm x 3.12 mm) surface-mount form factor to save board space.
Features & Benefits
High current rating (15 – 30 A) with higher voltage up to 100 VDC
Enhanced thermal cycling endurance
High melting i2t
Surface-mount fuse in a small footprint
Operating temperature range from -55°C to 125°C
Enables blade servers operating at higher power
Provides higher reliability in harsh thermal cycling conditions
Prevents nuisance tripping caused by transient surge during blade server hot swapping
Allows for greater flexibility in fuse placement on slim blade server boards
Ensures robust performance and reliable protection in ultra-high ambient temperature working environments
Materials & Dimension
Construction Body Material: Ceramic
Termination Material: Silver(Ag),Nickel(Ni),Tin(Sn)
Fuse Element: Silver(Ag)
Recommended Land Pattern--Reflow Solder
Unit:mm
| L2 | L1 | W | |
| 1-40A | 6.1 | 3.25 | 3.43 |
Part Numbering
Part number system
CQ40LT 001
CQ40LT -- Series
001 -- AMP Code (Refer to below table )
| PN | Ampere Rating [ In ] |
Voltage Rating ( V ) |
Nominal Resistance Cold Ohms |
Nominal Melting I t A Sec |
| CQ40LT001 | 1A |
600VAC 350VDC |
0.8500 | 0.5800 |
| CQ40LT002 | 2A | 0.4000 | 1.1100 | |
| CQ40LT020 | 20A | 0.0060 | 32.630 | |
| CQ40LT030 | 30A | 0.0030 | 136.89 | |
| CQ40LT040 | 40A | 0.0014 | 547.10 |
Electrical Characteristic
| Rated current | 1 In | 2 In | 3 In | 8 In | |
| Min. | Min. | Max. | Max. | Max. | |
| 1-40A | 4 hour | 1sec | 60 sec | 3 sec | 0.1 sec |
Environmental Temperature at 25°C
Application
High end servers / Blade computing
Base station power supply
Voltage regulator module
Cooling fan system for PC Server
Advance Telecommunication Computing Architecture (ATCA) applications for cloud computing
Battery Management System (Industrial Tools)
Interrupting Rating
1A~30A :
150 amperes at 350V DC
150 amperes at 600V AC
600 amperes at 60V DC
40A: 600 amperes at 60V DC
Soldering Method
*Reflow Soldering : 260°C, 30Sec. max.
*Wave Soldering : 260°C, 10Sec. max.
*Hand Soldering : 350°C, 3Sec. max.
Tape and Reel Specification
Tape & Reel Quantity: 1000PCS/Reel
Product Characteristics
Materials
Body : Ceramic
Ceramic Cap : Silver Plated Brass
Insulation Resistance (after Opening) MIL-STD-202, Method 302, Test Condition A (10,000 ohms, Minimum)
Solderability MIL-STD-202, Method 208
Resistance to Soldering Heat MIL-STD-202, Method 210, Test Condition B (10 sec at 260°C) PCB Recommendation for Thermal Management Min. copper layer thickness = 100µm
Minimum copper trace width = 10mm
Alternate methods of thermal management may be used. In such cases, under normal operations, the maximum temperature of the fuse body should not exceed 80°C in a 25°C environment.
Operating Temperature –55ºC to 125ºC with proper derating
