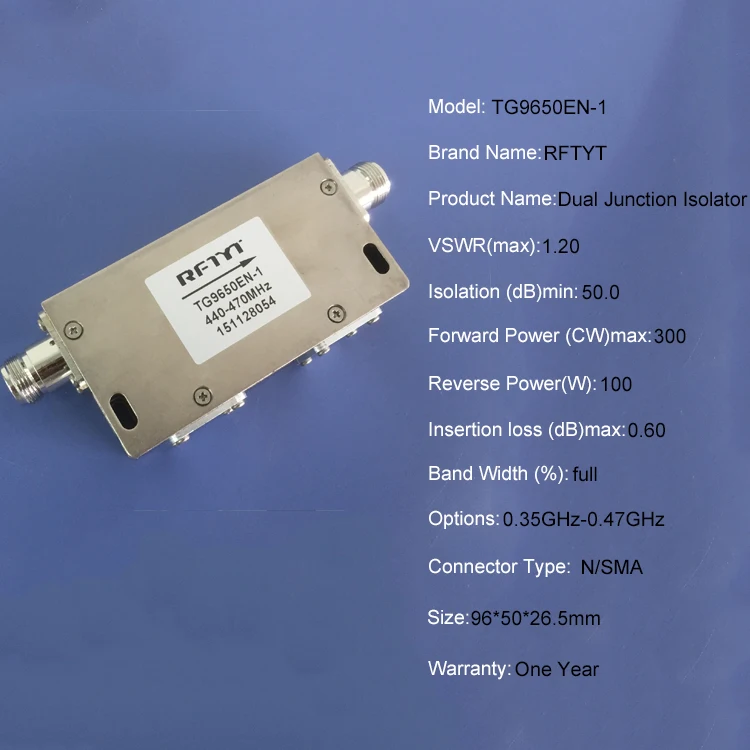

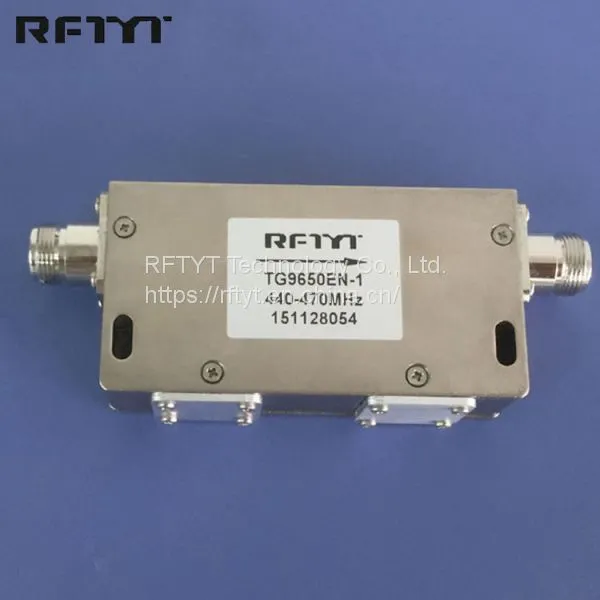

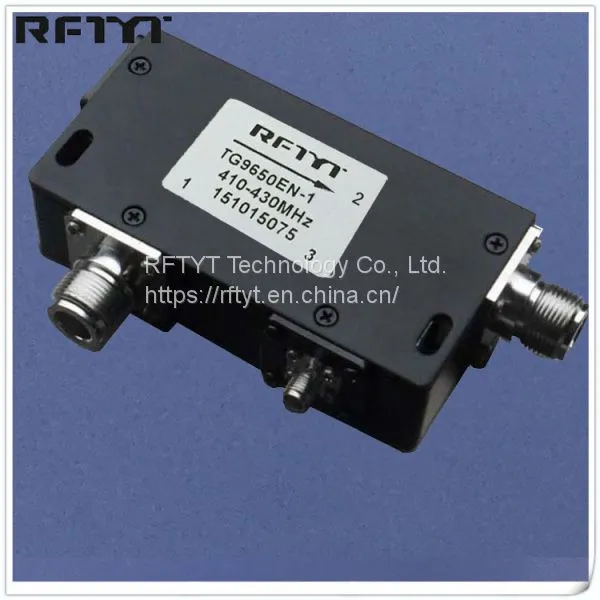

RF Dual Junction N/SMA Connector GMHz Coaxial Isolator
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard
60MHz-18.0GHz Dual/Multi Junction Isolator
| Model | Frequency Range |
Forward Power (max) |
Reverse Power | Size | Connector Type |
|---|---|---|---|---|---|
| TG23090H | 80-230MHz | 150W | 100W | 230.0*90.0*40.0 mm | SMA/N |
| TG17080H | 350-800MHZ | 300W | 100W | 170.0*80.0*40.0 mm | SMA/N |
| TG12060E | 80-230MHz | 50W | 10-50W | 120.0*60.0*25.5 mm | SMA/N |
| TG10458E | 200-300MHz | 200W | 10-150W | 104.0*57.5*22.0 mm | SMA/N |
| TG12762H | 361-366MHz | 200W | 100W | 127.0*62.0*22.0 mm | N |
| TG9662H | 380-500MHz | 300W | 100W | 96.0*62.0*22.0 mm | SMA/N |
| TG7448E | 360-2700MHz | 150W | 100W | 73.8*48.3*22.0 mm | N |
| WG5032X | 350-4000MHz | 150W | 100W | 50.8*31.7*10.0 mm | TAB |
| WG4027X | 800-4000MHz | 100W | 100W | 40.0*27.5*8.6 mm | TAB |
| WG4020X | 800-4000MHz | 100W | 20W | 40.0*20.0*8.6 mm | TAB |
| TG2619C | 8.0 - 12.0 GHz | 30W | 5W | 26.0*19.0*13.0 mm | SMA |
For more detail specifications, please contact us or go to the official website.
(WWW.RFTYT.COM)
Forms are specify frequency range and other ranges available
(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)
