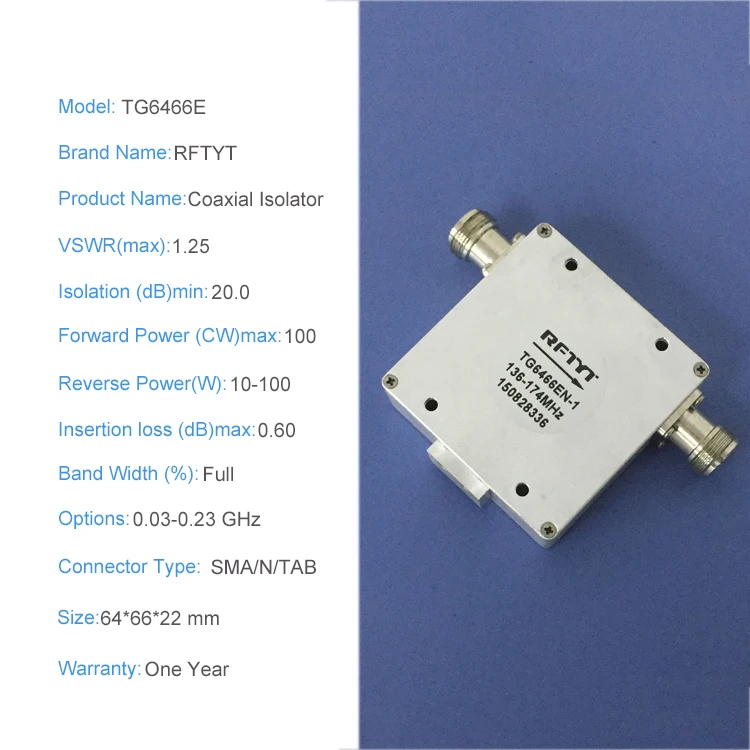

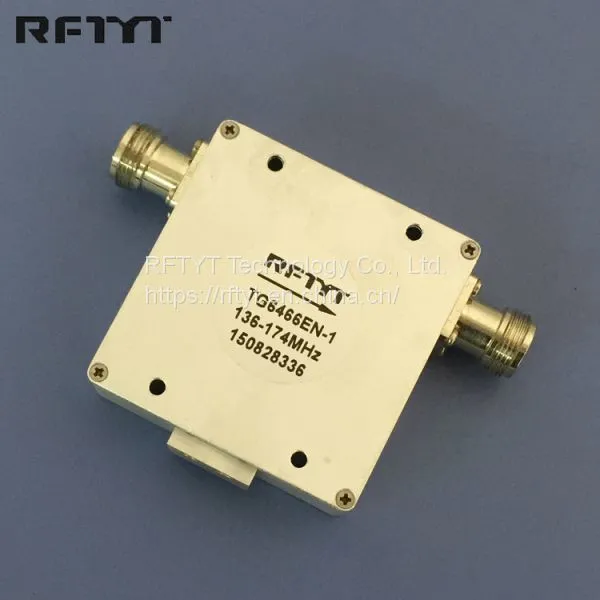

Help CenterRFTYT TG6466E 0.03-0.23 GHz Low VSWR IBS High Quality RF Coaxial Isolator
Related Products
-
RFTYT SHF TG3434E 0.7-3.1 GHz SMA N Connector Low VSWR RF Coaxial IsolatorUS$ 10 - 100MOQ: 1 Piece -
RFTYT Customized TG3232ANJK 0.7-3.1 GHz N Female to Male RF Coaxial IsolatorUS$ 10 - 100MOQ: 1 Piece
-
RFTYT Customized RF Coaxial IsolatorUS$ 10 - 100MOQ: 1 Piece
-
RFTYT VHF Hot Sale Brand Products TG3042E 0.92-0.96 GHz RF Coaxial IsolatorUS$ 10 - 100MOQ: 1 Piece
-
RF TYT Radio-Freqency Custom 0.9-0.93GHz Through Wall Coaxial IsolatorUS$ 10 - 100MOQ: 1 Piece
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard
10MHz-26.5GHz Power(Max) 2000W Coaxial Isolators
|
Model |
Frequency range |
Power (max) |
Reverse Power |
Size |
Connector Type |
|---|---|---|---|---|---|
|
TG6466E
|
30-230MHz |
150W |
10-150W |
64.0*66.0*22.0 mm |
SMA/N |
|
TG6060E
|
30 - 230MHz |
50W |
10-50W |
60.0*60.0*25.5 mm |
SMA/N/TAB |
|
TG6466E
|
130-200MHz |
500W |
10-250W |
64.0*66.0*22.0 mm |
SMA/N |
|
TG5258E
|
160-330MHz |
500W |
10-250W |
52.0*57.5*22.0 mm |
SMA/N |
|
TG4550E
|
300-1100MHz |
400W |
10-100W |
45.0*50.0*25.0 mm |
SMA/N |
|
TG3538X
|
300-1850MHz |
300W |
10-250W |
35.0*38.0*15.0 mm |
SMA/N |
|
TG3434E
|
700-3100MHz |
300W |
20-100W |
34.0*34.0*22.0 mm |
SMA/N |
|
TG3232X
|
700-3100MHz |
300W |
20-100W |
32.0*32.0*15.0 mm |
SMA/N |
|
TG3033X
|
700-3100MHz |
300W |
20-100W |
30.0*33.0*15.0 mm |
SMA/N |
|
TG2528B
|
900-4000MHz |
200W |
10-100W |
25.4*28.5*15.0 mm |
SMA/N |
|
TG6466E
|
950-2000MHz(full) |
100W |
10-100W |
64.0*66.0*26.0 mm |
SMA/N/TAB |
|
TG2025X |
1500-4000MHz
|
100W |
20W |
20.0*25.4*15.0 mm |
SMA |
|
TG3234A
|
2.0 - 4.0 GHz(full) |
100W |
20W |
32.0*34.0*21.0 mm |
SMA/N/TAB |
|
TG2528C
|
3.0-6.0GHz(full) |
60W |
20W |
25.4*28.0*14.0 mm |
SMA/N/TAB |
|
TG1626B
|
3.7 - 5.0GHz |
60W |
5W |
16.0*26.0*15.0 mm |
SMA |
|
TG1523C
|
3.6 - 7.2 GHz |
60W |
5W |
15.0*23.0*13.8 mm |
SMA |
|
TG2123B
|
4.0-8.0GHz(full) |
60W |
20W |
21.0*23.0*15.0 mm |
SMA |
|
TG1319C
|
7.0- 15.0GHz |
20W |
5W |
13.0*19.0*12.7 mm |
SMA |
|
TG1220C
|
9.0 - 15.0GHz |
30W |
5W |
12.0*20.0*13.0 mm |
SMA/ Through wall connector |
|
TG1622B
|
6.0 - 18.0 GHz
|
30W |
5W |
16.0*22.0*14.0 mm |
SMA |
For more detail specifications, please contact us or go to the official website.
(WWW.RFTYT.COM)
Forms are specify frequency range and other ranges available
(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)
Q1. How many years have you engaged in this business?
A1: Our company have engaged in this business more than 20 years, and we professional in microwave passive devices (radio frequency isolators, circulators, RF resistors, attenuators, coaxial loads and attenuators) and microwave passive components research, production, sales and services.
Q2. What’s your payment terms?
A2: Our payment term is T/T , L/C.
Q3. What is your MOQ (minimum order quantity) ?
A3: 1 piece.
Q4. How do you ensure the quality of products?
A4: Each products we made are based on international standards.Meanwhile, every product is strictly checked before loading.
Q5. What price you can offer?
A5: EXW, FOB, CFR/ CIF, etc.
Q6.What’s your delivery time ?
A6: Production finished within 1-30 days after receiving the deposit.
Q7. Can you do OEM for us ?
A7: Yes,we can do OEM according the customer quality standard and packing .
