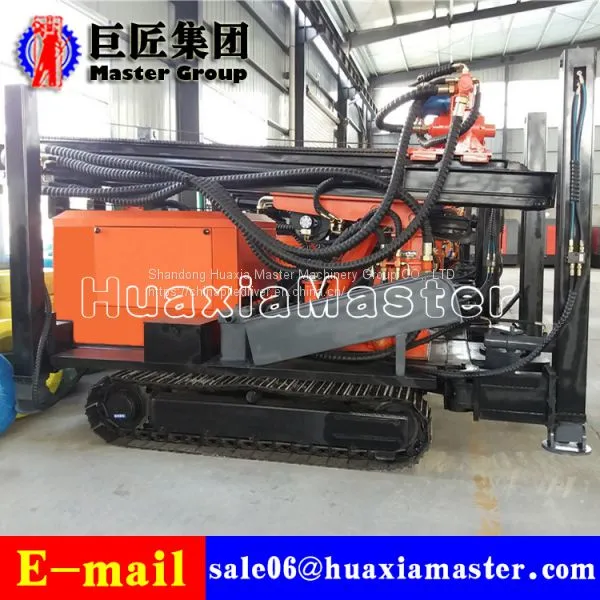

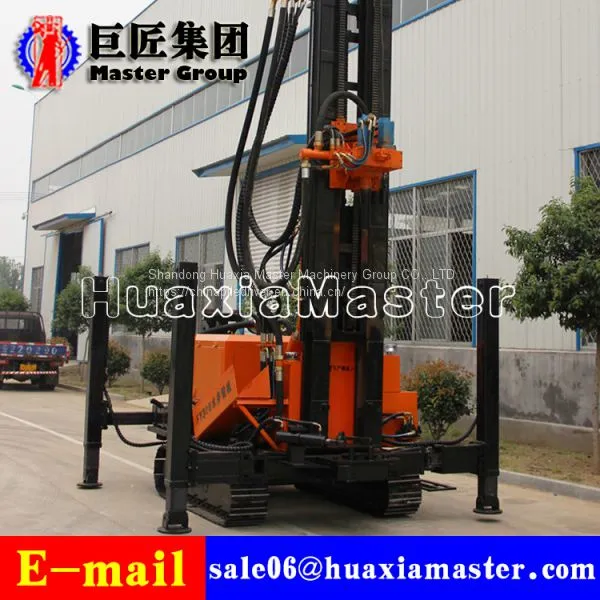

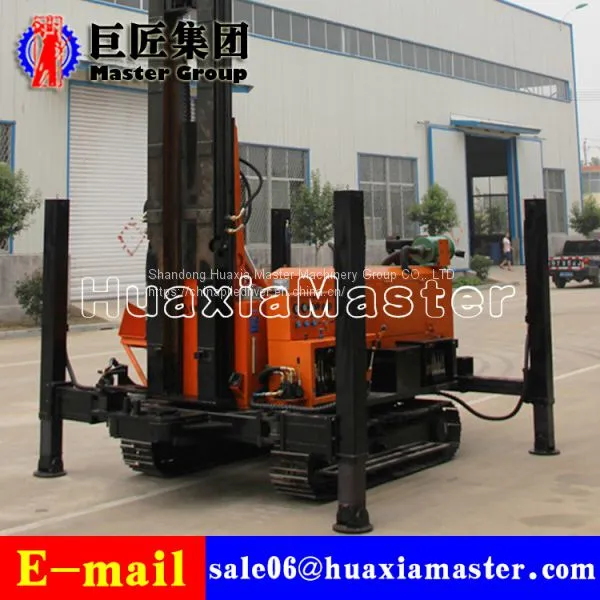

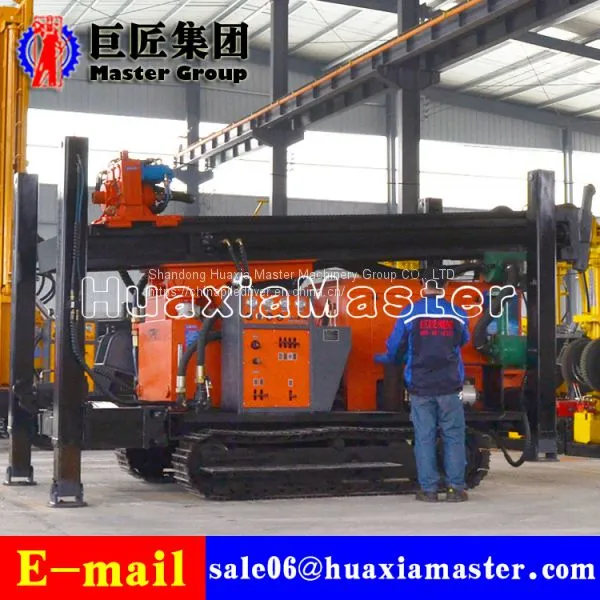

FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality

FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality thumbnail-1
FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality thumbnail-2
FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality thumbnail-3
FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality thumbnail-4
FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality photo-1
FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality photo-2
FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality photo-3
FY400 Impacted Power Hammer Rock Core Air Water Well Drilling Rig With Good Quality photo-4
US$ 3000 - 3500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia Master
Place of Origin:
China
Model Number:
FY400
Contact Supplier Request Quote Chat Now
Shandong Huaxia Master Machinery Group CO,. LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxia Master
Place of Origin China
Model Number FY400
Type Rotary Drilling Rig
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 6 months
Weight 8.7T
Dimension(L*W*H) 5050*2100*2800 MM
Power Type Diesel
Voltage 380V
Usage Water Well
Condition New
Power(W) 95KW

1.The applications of FY400 crawler type water well drilling rig

l civil engineering drilling

l geothermal drilling

l drilling with large diameter and deep drilling footage

l It’s fast, flexible and efficient.

2. The specifications of FY400 crawler type water well drilling rig

Model

FY400

Gross weight

T

8.7

Dimension

mm

5050*2100*2800

Aperture

mm

140-325

Drilling depth

m

400

Feed stroke

mm

6000

Travel speed

km/h

2.5

Grade ability

max.

30°

Rising height from ground

mm

250

Wind pressure

mpa

1.7-3.5

Air consumption

m³/min

17-35

Engine power

kw

95

Rotary speed

rpm

45-75

Rotation torque

n.m

8500-10000



Shandong Master Machinery Group Co.,Ltd.

Sales Manager：CocoYan

Wechat: 18865479510

Whatsapp: 008618865479510

QQ：3048400352

Sales hotline：400-167-0537

Tel: 86-0537-3860909
