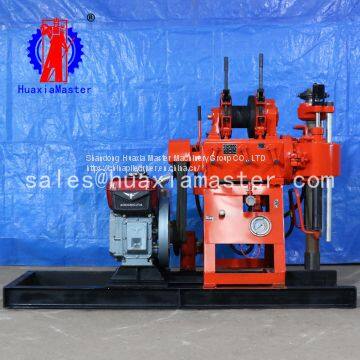

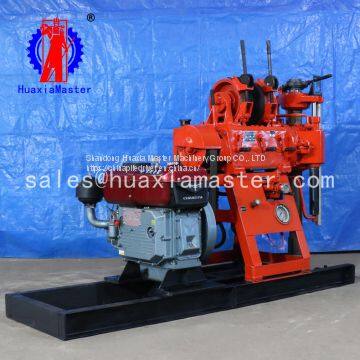

XY-200 Hydraulic Core Drilling Rig Machine 200m for Water Well

Name: XY-200 Hydraulic Core Drilling Rig Machine 200m for Water Well
Brand: HUAXIA master
SKU: 159804631
Availability: InStock

US$ 1500 - 2000 MOQ: 1 Set

Key Specifications

Brand Name:

HUAXIA master

Place of Origin:

China

Model Number:

XY-200

Shandong Huaxia Master Machinery Group CO,. LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

7 days

Brand Name HUAXIA master

Place of Origin China

Model Number XY-200

Type Rotary Drilling Rig

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Warranty 6 months

Weight 760KG

Dimension(L*W*H) 2.75*0.95*1.60m

Power Type Diesel

Voltage 380v

Usage Water Well

Condition New

Power(W) 14.7kw

1. Applications of XY-200 core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-200 core drilling machine

Maximum opening diameter	400mm
Maximum borehole depth	200m
Diameter of the end hole	75mm
Borehole dip angle	90-75°
Machine overall size	2.750.951.60m
Drill pipe diameter	50mm
Weight of drill rig diameter of drill pipe (without power)	760kg
A vertical scroll of painting
Shaft rotation speed	71/142/310/20r/min
Vertical axis stroke	450mm
Windlass
Maximum lifting weight of single rope	2008kb
Drum lifting speed	17/35/75/160 rm/s
Wire rope diameter:	13mm
Wire rope capacity	35mm
Width of sluice	70mm
Mud pump
Type: horizontal single cylinder double action	flow：180L/min
Maximum pressure	1.5mpa
Working pressure	0.7mpa
Inlet size	50mm
Outlet pipe diameter	45mm
Power
Diesel oil	22hp
Rated speed	2200r/min
Electric machinery	15kw
Rated speed	1460r/min
