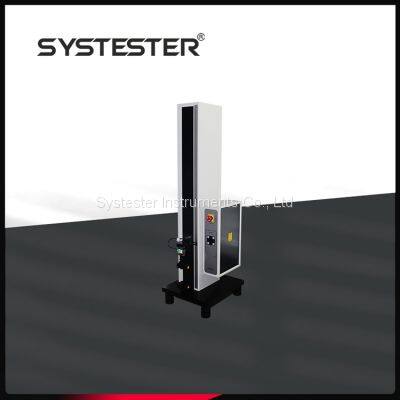

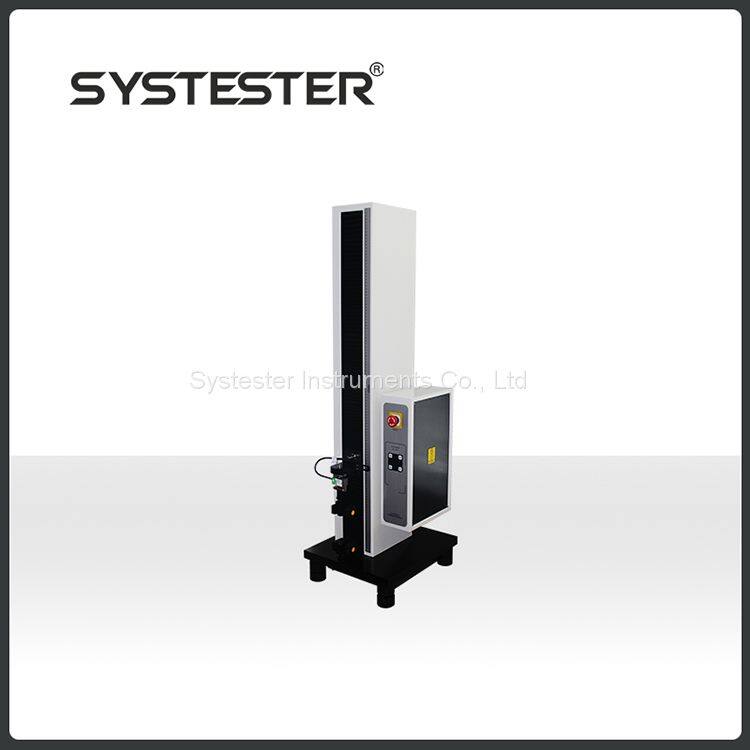

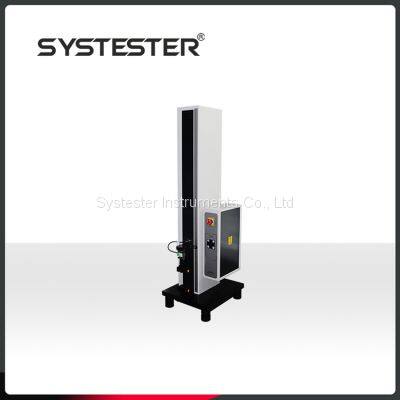

Medical Packaging Tensile Tester TSL Thermal Strength Test

Product Details

Application:

Applies to the test of all kinds of rubber plugs, rubber gaskets, Al-plastic combined covers, hypodermic needles, hypodermic caps, ampoule bottles, hypodermic syringes, syringe pistons and so on, as well as plastic films, sheets, rubber, laminated films, extrusion films, foils, paper, release paper, non-woven fabrics etc testing of various items, such as tensile, break force, elastic modulus, elongation, seal strength, T-style peeling strength, 90 peeling strength, 180 peeling strength, widely used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.

Features:

1: Professionally design, multiple medical test fixture optional

2: Bilingually controlled by computer and embedded system

3: Highly accurate load cell, Bi-direction test.

4: High performance servo drive.

5: Test speed can be preset freely through software.

6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.

7: Silence running,<25db@1000.

8: ISO, ASTM standards test available and non-standard test available.

9: Electronic limit, computer preset, non-mechanical limit.

10: Overload protection, less power consumption.

11: DB9 RS232 communication port .

12: Tensilyst workstation support.

13: Break force, elastic modulus, seal strength, tensile,90 peeling strength, 180 peeling strength test available.

14: Historical data traceable, system log.

15: 5 degrees user management.

16: Group test, auto multiple curves overlaying display, auto statistic calculation.

17: DSM system is optional(Laboratory Management Information System), easy to manage test data.

Technical Indexes:

1: Load range: 50N, 100N, 250N, 500N, 1000N.(Personal customization available)

2: Accuracy: 0.03%FS max

3: Max travel distance: 1000mm.

4: Test speed: 0.1mm/min – 1000mm/min.

5: Displacement accuracy: better than 0.01mm.

6: Sample width: 38mm. (optional)

7: Sample thickness: 5mm. (optional)

8: Power supply: AC 220V 50Hz.(optional)

9: Power consumption: 300W.(Max)

10: Dimension 380mm(L) X 450mm(B) X 1309mm(H)

11: Net weight: 92kg.

Standards:

ASTM, ISO, GB
