Automatic Glass Edge Polishing Machine

Automatic Glass Edge Polishing Machine thumbnail-1
Automatic Glass Edge Polishing Machine photo-1
US$ 8,000 - 23,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Techwin
Place of Origin:
Guangdong, China
Model Number:
TWZM9325
Contact Supplier Request Quote Chat Now
Shandong Glass Washing Machine Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Techwin
Place of Origin Guangdong, China
Model Number TWZM9325
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Weight 1000kg
Dimension(L*W*H) 6300x1000x2500mm
Production Capacity 0.5-5m/min
Condition New
Voltage Customized
Power(W) 19.5kw
Machine Type Glass Edging Machine

9 motors Glass straight line edging machine



I. INTRODUCTION:

TWZM9325 Glass straight line edging machine

1. Suitable for grinding straight edge of different size and thickness flat glass.
2. The coarse grinding, fine grinding, chamfering and polishing can be finished at one time.

3. Working speed and working load can be adjusted smoothly by continuously variable

  mechanism transmission.

4. Adjust front rail to match different glass thickness.

5. The machine is equipped with automatic clamping system and voltage stabilizing system.

6. It is a necessary tool with high precision, high efficiency and easy operation in glass

  processing industry.



II. TECHNICAL SPECIFICATIONS:

TECHNICAL SPECIFICATIONS

voltage

Power

Min size

Max size

380v/50Hz

19.5kw

80x80mm

3000x3000mm

Glass thickness

Feeding speed

Weight of machine

Overall Size(LxWxH)

3-25mm

0.5-5m/min

2700kg

6300x1000x2500mm



Nude packing size: 2900*1000*1700mm

Wood packing size: 3200*1200*1800mm

III. Grinding wheels



ADZM9325 Grinding wheels



Wheels

Spec.

Grit

Function

Segment

#1

Diamond

φ150x12

80

Edging coarse grinding

External half segmented

#2

Diamond

φ150x12

240

Continuous  rim

#3

Resin

φ130x12

240

chamfer coarse grinding

#5

Resin

φ130x12

240

#4

Polyurethane

φ130x60

domestic

chamfer Polish

#6

Polyurethane

φ130x60

domestic

#7

Resin

φ150x70

240

Edging fine grinding

#8

Polyurethane

φ150x70

Import

Edging Polish

#9

X3000/CE3

φ150x70

domestic



Automatic glass edge polishing machineAutomatic glass edge polishing machine



Packaging & Shipping

 Automatic glass edge polishing machine

Our Services

 Automatic glass edge polishing machine

On the Exhibition

 Automatic glass edge polishing machine

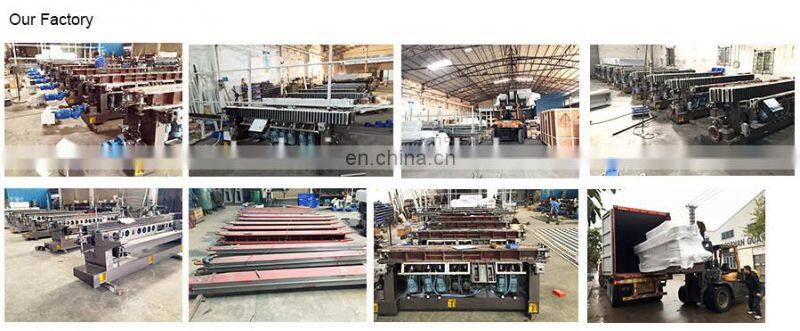

Factory Tour

 Automatic glass edge polishing machine

FAQ



WHY YOU CHOOSE US?

1. Any information on your company?

Techwin is synonymous of quality since its beginning. Specialized in the field of manufacturing horizontal and vertical glass washers, glass drilling machines, automatic glass conveyers, multi-functional glass cutting tables, Glass loading/off-loading production lines, PVB laminated glass processing lines. We have years of OEM experience for some famous glass machinery companies in China. We have provided machines to more than 20 overseas countries including: US, Australia, New Zealand, Malaysia, Venezuela, India, Russia, Turkey, Iran, Pakistan, Tunis ...

Our list of satisfied clients is growing monthly.



2. What’s the customer service?

1).Reply within 24 hours.

3).24 hours for after-sale service.

4).More than 20 years experience in this field.

5).Fluent English, communication barrier free.



3. What’s the guarantee?

1)The whole set of machine warranty period is 1 year.

2).24 hours technical support by email or calling.

3).English manual and tutorial. Free training provides. We could dispatch engineer overseas, the buyer should pay the fly ticket and accommodation

4).We will provide the consumable parts at an agency price.



4. Why your price is higher than another company or factory?

We use world famous brands of electrical parts with longer usage life. Our strong engineers have more than 10 years of R&D experience in this field, we always use mature structure/design of our machines.



5. How long is the delivery time?

Normally its 20 to 45 days.



6. How's the payment?

T/T: 30% T/T deposit, balance 70% before shipment ; L/C; Trade Assurance.



7. If I want to use some certificates to pay less tax for importing your machines,can you help me?

We can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.



8. Can you make the machine according to my requirements?

Yes, of course. Customerized service is provided.
