Washing Tempered Laminated Glass Machine/glass Cleaning Machine Water Jet

Washing Tempered Laminated Glass Machine/glass Cleaning Machine Water Jet photo-1
Washing Tempered Laminated Glass Machine/glass Cleaning Machine Water Jet photo-2
Washing Tempered Laminated Glass Machine/glass Cleaning Machine Water Jet photo-3
Washing Tempered Laminated Glass Machine/glass Cleaning Machine Water Jet photo-4
Washing Tempered Laminated Glass Machine/glass Cleaning Machine Water Jet photo-5
Washing Tempered Laminated Glass Machine/glass Cleaning Machine Water Jet photo-6
US$ 11,000 - 12,000 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
Techwin
Place of Origin:
Guangdong, China
Model Number:
TWQX-1600BX
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Techwin
Place of Origin Guangdong, China
Model Number TWQX-1600BX
Certification CE
After-sales Service Provided Overseas third-party support available
Warranty 1 Year
Weight 1300kg
Dimension(L*W*H) 4310*2610*27OOMM
Production Capacity 1.5-10m/min
Condition New
Voltage 380V 50HZ 3 Phase
Power(W) 16.8KW
Machine Type Glass Washing and Drying Machine
Product Description

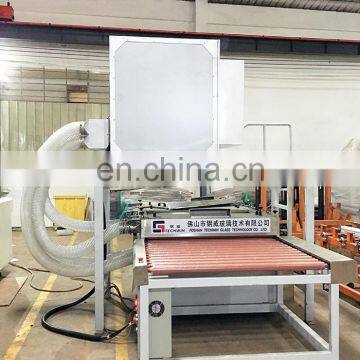

  Automatic Tempered/ Low-e Glass/ Mirror/ glass washing machine TWQX-1600BX



Details for High speed glass washer TWQX-1600BX

washing tempered laminated glass machine/glass cleaning machine water jet



Specificatons for Techwin Glass Washing and Drying Machine TWQX-1600BX



TWQX-1600BX

Max. Glass Width(mm)

1600

Min. Glass Size(mm)

230*230

Glass Thickness(mm)

3-12

Washing Speed(m/min)

1.5-10

Brush(pcs)

4

Air Knives(pairs)

3

Voltage

380-415V

HZ

50/60HZ

Weight(kg)

1300

Motors Powder(kw)

16.8

Overall Dimension(mm)

4310*2610*2700







Main features:

Strong welded construction with powder coating paint.

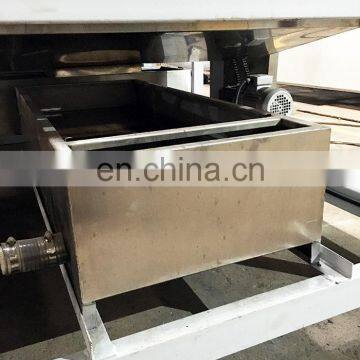

Stainless steel components and tanks for all water applications.

Rubberized vulcanized and rectified conveyor rollers.

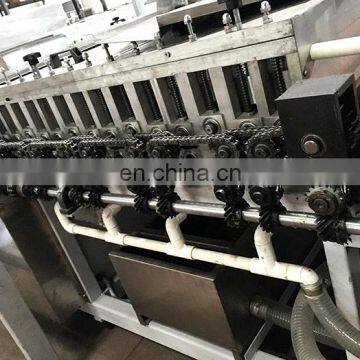

Conveyor device: Bevel gears are adopted for steady and synchronous transmission.

Washing part and drying part can be lifted, max. lifting 450mm.

High pressure spraying system for pre-washing.

Four pairs of brushes and two separate water tanks.

Three pairs of air knives.

High speed, can combined with glass double edger.

Suitable for washing Low-E glass.



Our Services

 washing tempered laminated glass machine/glass cleaning machine water jet

Packaging & Shipping

 washing tempered laminated glass machine/glass cleaning machine water jet

On the Exhibition

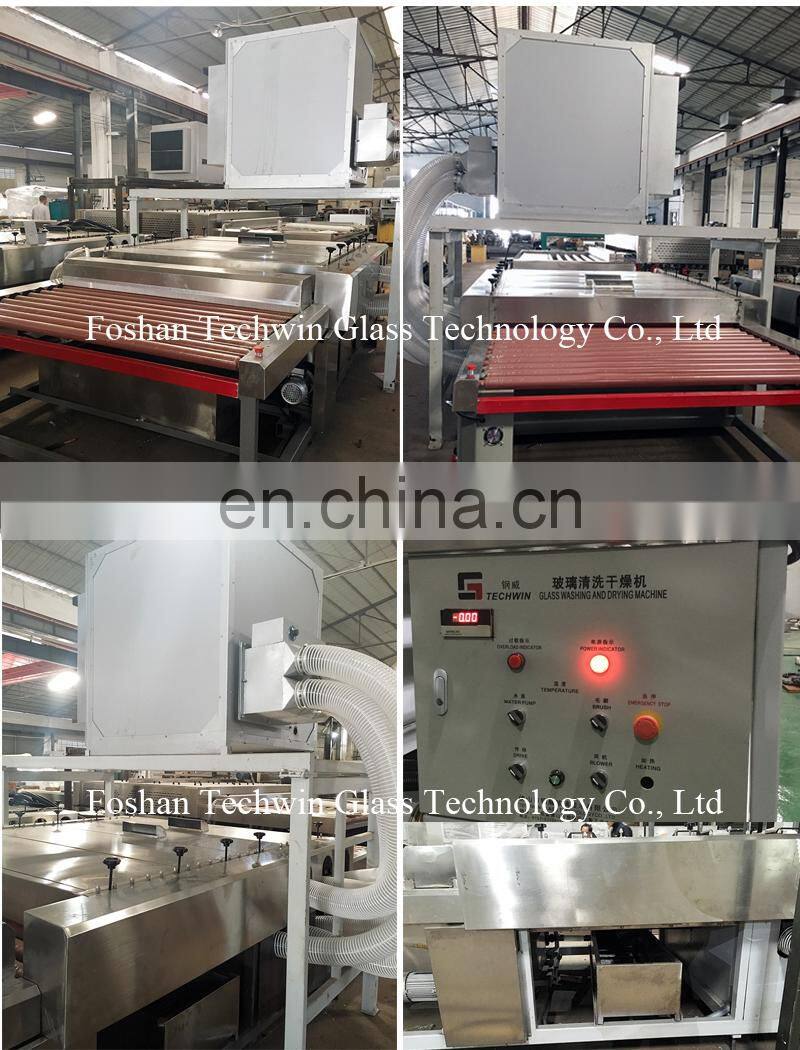

Factory Tour

 washing tempered laminated glass machine/glass cleaning machine water jetwashing tempered laminated glass machine/glass cleaning machine water jetwashing tempered laminated glass machine/glass cleaning machine water jet

FAQ



WHY YOU CHOOSE US?

1. Any information on your company?

Techwin is synonymous of quality since its beginning. Specialized in the field of manufacturing horizontal and vertical glass washers, glass drilling machines, automatic glass conveyers, multi-functional glass cutting tables, Glass loading/off-loading production lines, PVB laminated glass processing lines. We have years of OEM experience for some famous glass machinery companies in China. We have provided machines to more than 20 overseas countries including: US, Australia, New Zealand, Malaysia, Venezuela, India, Russia, Turkey, Iran, Pakistan, Tunis ...

Our list of satisfied clients is growing monthly.



2. What’s the customer service?

1).Reply within 24 hours.

3).24 hours for after-sale service.

4).More than 20 years experience in this field.

5).Fluent English, communication barrier free.



3. What’s the guarantee?

1)The whole set of machine warranty period is 1 year.

2).24 hours technical support by email or calling.

3).English manual and tutorial. Free training provides. We could dispatch engineer overseas, the buyer should pay the fly ticket and accommodation

4).We will provide the consumable parts at an agency price.



4. Why your price is higher than another company or factory?

We use world famous brands of electrical parts with longer usage life. Our strong engineers have more than 10 years of R&D experience in this field, we always use mature structure/design of our machines.



5. How long is the delivery time?

Normally its 20 to 45 days.



6. How's the payment?

T/T: 30% T/T deposit, balance 70% before shipment L/C; Trade Assurance.



7. If I want to use some certificates to pay less tax for importing your machines,can you help me?

We can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.



8. Can you make the machine according to my requirements?

Yes, of course. Customerized service is provided.



Agents Wanted: We are finding agents all over the world.

Any question, please email me or call me directly or chat with me online.



Contact us right now to get a big discount!!

washing tempered laminated glass machine/glass cleaning machine water jet
