CNC ultra-high pressure waterjet intensifier pump

FOB Price

USD $35,000 - $86,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Dalian
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	All-Powerful	Place of Origin:	Liaoning, China	Model Number:	APW38037Z-09A
Application:	Other	Fuel:	Other	Power:	Hydraulic
Usage:	Water	Theory:	Jet Pump	Structure:	Piston Pump
Pressure:	High Pressure

Product Description

Main technical data

Main motor power: 37KW	Length: 1745mm
Max. working pressure: 380Mpa	Width: 1045mm
Max. flow rate: 3.7L/min	Height: 1350mm
Control system: PLC(Omron)	Weight: 1200Kg
Cutting Water Inlet pressure: >0.1Mpa	Lp Low Pressure Filter: 10um
Cooling Water Inlet pressure: >0.5Mpa	Safety unloading valve: Standard components
Max. oil pressure: 20Mpa	Oil level and oil temperature sensor: Standard components
Accumulator Volume: 1.2L
High Pressure Outlet Connections: M16×X1.5

Main technology feature

1. There is shock absorber instal led in the four corners of the motor,which reduces the shock and noise.

2. The wave crest cotton has good effect to low the noise.

3. Double oil filter for inlet and outlet ports,which will improve the clean of hydraulic oil and the stability of machine working.

4. The stage safety unloading valve can discharge the system pressure which guarantee the safety of operators and machine,when the machine need to stop in emergency.

5. There is low pressure inlet water safety overflow switch,which can guarantee the safety of high pressure water,and the inspection of low pressure inlet water can avoid the trouble shooting of machine casued by the less low pressure inlet water supply.

6. The efficient cooling system component can reduce the volume of oil tank and low the wirking cost.

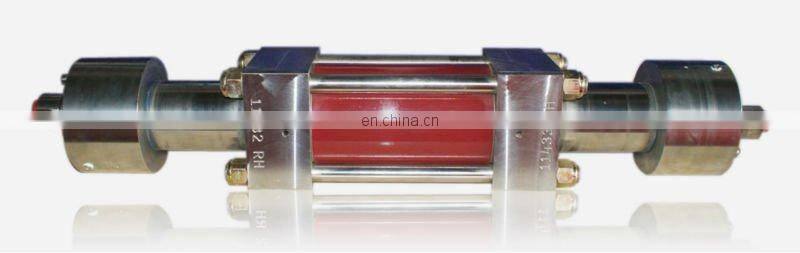

7. Imported intensifier,which guarantees the quality of the whole pump(SEE THE FOLLOWING PICTURE).
