Application of waterjet cutting machine
High-pressure CNC water jet machinery is realized by waterjet with great kinetic energy and high speed stream of water. It belongs to high energy beam processing area as well as laser, ionic beam, electron beam, while high-pressure waterjet is the only cold cutting technology. High-pressure water cutter as a high-tech is virtually a revolution in cutting field.
Currently HP water cutting is mainly used in below areas.
a) Application in metallic material cutting
1) To cut the metallic materials that used for architectural decoration, such as stainless steel.
2) To make and cut the crust of machine equipments

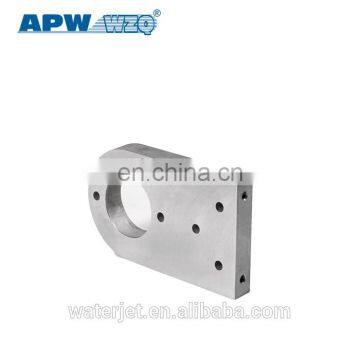

3) To cut all kinds of metallic spare parts
b) Application in glass cutting
1) To cut glass for household electrical appliances
2) To cut glass for bathroom
3) To cut glass for architectural decoration, craftwork and automobile.

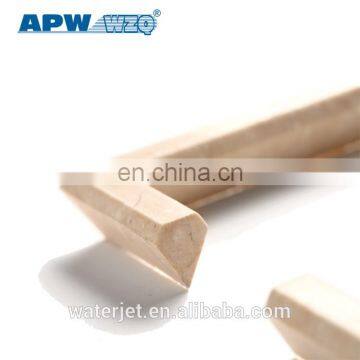

c) Application in processing tiles, stones and other building materials.
Waterjet started to be used in tiles and stones cutting quite earlier. Currently it has become the most widely used field among domestic customers. Now, the tile matching and stone matching products that made by All-Powerful waterjet have been sold worldwide.
d) Application in composites, bulletproof material, soft material and others
1) With robot arm to cut automotive interior components
2) To cut foam, sponge, paper, rubber, etc.
3) To cut nylon, carpet, etc.
Table model |
1520BA |
1525BA |
1530BA |
2040BA |
2515BA |
3040BA |
Cutting area |
1.5m×2m |
1.5m×2.5m |
1.5m×3.0m |
2.0m×4.0m |
2.5m×1.5m |
3.0m×4.0m |
Max moving speed |
6000mm/min |
6000mm/min |
6000mm/min |
6000mm/min |
6000mm/min |
6000mm/min |
Way of drive |
AC servo |
AC servo |
AC servo |
AC servo |
AC servo |
AC servo |
Control accuracy |
±0.01 |
±0.01 |
±0.01 |
±0.01 |
±0.01 |
±0.01 |
Cutting accuracy |
±0.1~±0.2 |
±0.1~±0.2 |
±0.1~±0.2 |
±0.1~±0.2 |
±0.1~±0.2 |
±0.1~±0.2 |
Pump model |
APW38037Z |
APW38037Z |
APW38037Z |
APW38037Z |
APW38037Z |
APW38037Z |
Max working pressure |
380Mpa |
380Mpa |
380Mpa |
380Mpa |
380Mpa |
380Mpa |
Continuous operating pressure |
330MPa |
330MPa |
330MPa |
330MPa |
330MPa |
330MPa |
Power requirement |
37KW 380V/50HZ |
37KW 380V/50HZ |
37KW 380V/50HZ |
37KW 380V/50HZ |
37KW 380V/50HZ |
37KW 380V/50HZ |
Max. oil discharge |
90 L/min |
90 L/min |
90 L/min |
90 L/min |
90 L/min |
90 L/min |
Max. water discharge |
3.7L/min |
3.7L/min |
3.7L/min |
3.7L/min |
3.7L/min |
3.7L/min |
Max. diameter of orifice |
0.3mm |
0.3mm |
0.3mm |
| Reference Cutting Speed | |||
| Material | Thickness(mm) | Cutting Speed of 300MPa pump working pressure is 260MPa(mm/min) | Cutting Speed of 380MPa pump working pressure is 330MPa (mm/min) |
| Marble | 20 | 300 | 380 |
| 30 | 200 | 300 | |
| Granite | 20 | 250 | 330 |
| 30 | 150 | 200 | |
| Glass Brick | 12 | 800 | 960 |
| Glass | 5 | 1200 | 1500 |
| 10 | 500 | 600 | |
| 20 | 350 | 420 | |
| Glue Chipped Glass | 10 | 450 | 540 |
| Sponge | 50 | 5000 | 6000 |
| Foam | 50 | 5000 | 6000 |
| Wood | 10 | 1000 | 1200 |
| 50 | 200 | 240 | |
| Steel | 2 | 600 | 720 |
| 4 | 400 | 500 | |
| 6 | 300 | 420 | |
| 8 | 200 | 300 | |
| 10 | 120 | 200 | |
| 15 | 75 | 120 | |
| 20 | 30 | 50 | |
| 60 | 12 | 20 | |
| Laminates | 10 | 1500 | 1800 |
| Aluminum | 5 | 350 | 500 |
| Copper | 5 | 350 | 420 |
| Glass Fibre Reinforced plastic | 2 | 1200 | 1500 |
