Components of the whole set of machine are as follows:
1. Cutting table:
bridge style, Z-axis journey is 150mm, Three-axis control, Auto zero positioning, drives and motors are from Japan, ball screw and linear guide are from Spain and America seperately.
2, Intensifier pump:
Intensifier pump is JETLINETMJL-1from Germany KMT company's branch in Shanghai
3. CNC controller:
EVOC brand Industrial Personal Computer and 19BENQ LCD, specialized waterjet cutting software, Omron brand PLC instead of relay,
Windows XP based.
4.Accessories: spare parts and deionization system.
5.New products: 4-axis cutting head, 5-axis cutting head and auto abrasive feeder.
Common used models and their technical data are as follows:
| APW38037Z- JETLINETMJL-1××××BA bridge style cutting table series | ||||||||
| Table model | 1520BA | 1525BA | 1530BA | 2015BA | 2515BA | 3015BA | ||
| Cutting area | 1.5m×2m | 1.5m×2.5m | 1.5m×3.0m | 2.0m×1.5m | 2.5m×1.5m | 3.0m×1.5m | ||
| Max moving speed | 6000mm/min | 6000mm/min | 6000mm/min | 6000mm/min | 6000mm/min | 6000mm/min | ||
| Way of drive | AC servo | AC servo | AC servo | AC servo | AC servo | AC servo | ||
| Control accuracy | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ||
| Cutting accuracy | ±0.1~±0.2 | ±0.1~±0.2 | ±0.1~±0.2 | ±0.1~±0.2 | ±0.1~±0.2 | ±0.1~±0.2 | ||
| Pump model | JETLINETMJL-1 | JETLINETMJL-1 | JETLINETMJL-1 | JETLINETMJL-1 | JETLINETMJL-1 | JETLINETMJL-1 | ||
| Max working pressure | 380Mpa | 380Mpa | 380Mpa | 380Mpa | 380Mpa | 380Mpa | ||
| Motor rated current | 380V/50HZ 43 A | 380V/50HZ 43 A | 380V/50HZ 43 A | 380V/50HZ 43 A | 380V/50HZ 43 A | 380V/50HZ 43 A | ||
| Control voltage and power supply | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | ||
| Control system | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens | ||
| Max. water discharge | 2.3L/min | 2.3L/min | 2.3L/min | 2.3L/min | 2.3L/min | 2.3L/min | ||
| Compressed air pressure | 5.9 bar | 5.9 bar | 5.9 bar | 5.9 bar | 5.9 bar | 5.9 bar | ||
6. Applications
This machine can be used in many materials cutting and has a lot of advantage than other cutting methord, no heat effected zone, narrow kerf, good edge finish and high accuracy.
The application is below:
metal product cutting
marble product cutting
glass product cutting
granite, stone,steel, aluminium,rubber, plastic and other materials.
7. Cutting speed
The cutting speed depends on the thickness of material, the thicker the slower.The following is the reference cutting speed of different material with different thickness.
| Material | Thickness(mm) | Cutting Speed of 300MPa pump working pressure is 260MPa(mm/min) | Cutting Speed of 380MPa pump working pressure is 330MPa (mm/min) |
| Marble | 20 | 300 | 380 |
| 30 | 200 | 300 | |
| Granite | 20 | 250 | 330 |
| 30 | 150 | 200 | |
| Glass Brick | 12 | 800 | 960 |
| Glass | 5 | 1200 | 1500 |
| 10 | 500 | 600 | |
| 20 | 350 | 420 | |
| Glue Chipped Glass | 10 | 450 | 540 |
| Sponge | 50 | 5000 | 6000 |
| Foam | 50 | 5000 | 6000 |
| Wood | 10 | 1000 | 1200 |
| 50 | 200 | 240 | |
| Steel | 2 | 600 | 720 |
| 4 | 400 | 500 | |
| 6 | 300 | 420 | |
| 8 | 200 | 300 | |
| 10 | 120 | 200 | |
| 15 | 75 | 120 | |
| 20 | 30 | 50 | |
| 60 | 12 | 20 | |
| Laminates | 10 | 1500 | 1800 |
| Aluminum | 5 | 350 | 500 |
| Copper | 5 | 350 | 420 |
| Glass Fibre Reinforced plastic | 2 | 1200 | 1500 |

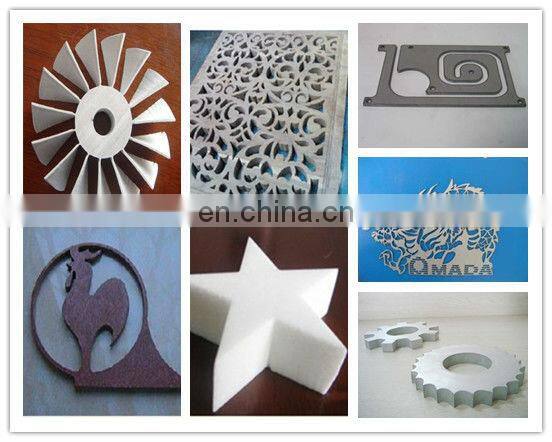

Cutting samples
