Metal Glass Bridge Style Double Intensifiers Pump Waterjet Cutting With Italian CNC Control System and Diamond Orifice

Metal Glass Bridge Style Double Intensifiers Pump Waterjet Cutting With Italian CNC Control System and Diamond Orifice photo-1
Metal Glass Bridge Style Double Intensifiers Pump Waterjet Cutting With Italian CNC Control System and Diamond Orifice photo-2
Metal Glass Bridge Style Double Intensifiers Pump Waterjet Cutting With Italian CNC Control System and Diamond Orifice photo-3
Metal Glass Bridge Style Double Intensifiers Pump Waterjet Cutting With Italian CNC Control System and Diamond Orifice photo-4
Metal Glass Bridge Style Double Intensifiers Pump Waterjet Cutting With Italian CNC Control System and Diamond Orifice photo-5
Metal Glass Bridge Style Double Intensifiers Pump Waterjet Cutting With Italian CNC Control System and Diamond Orifice photo-6
US$ 35,000 - 87,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
APW
Place of Origin:
Liaoning, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.
Brand Name APW
Place of Origin Liaoning, China
Certification CE
Weight 8 ton
Dimension(L*W*H) 3000*2000*150mm
Condition New
Voltage 220V

Technical data of water jet metal glass cutting machine



The intensifier pump



Max. oil discharge is 90 L/min

Max. water discharge is 3.7L/min

Max. diameter of orifice is 0.3mm

Max. operating pressure is 380MPa

Continuous operating pressure is 330MPa

Power requirement : 37KW,380V/50HZ

Type of shift is electronic

maintenance free accumulator whose capability is 1.3L using American technology



The controller



we research and develop our own professional software, components are as follows:

EVOC brand Industrial Personal Computer and 19BENQ LCD

specialised waterjet cutting software

Omron brand PLC instead of relay

Windows XP based



The cutting table



Structural style: bridge style

Valid processing range:3000mm*2000m

Z-axis journey:150mm

Control accuracy:±0.01mm

Cutting accuracy:±0.1-0.2mm

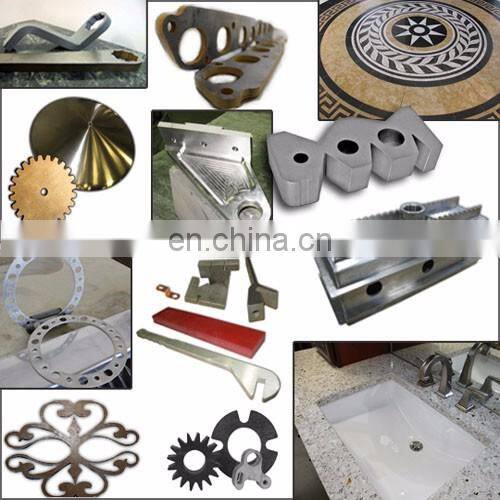

Applications on different materials:

This machine can be used in many materials cutting and has a lot of advantage than other cutting methord, no heat effected zone, narrow kerf, good edge finish and high accuracy.

The application is below:

metal cutting

marble cutting

glass cutting

granite, stone,steel, aluminium,rubber, plastic and other materials cutting.

The cutting speed depends on the thickness of material, the thicker the slower.





 metal glass bridge style Double Intensifiers Pump waterjet cutting with Italian CNC Control System and Diamond Orifice
