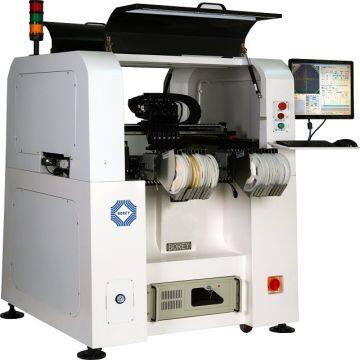

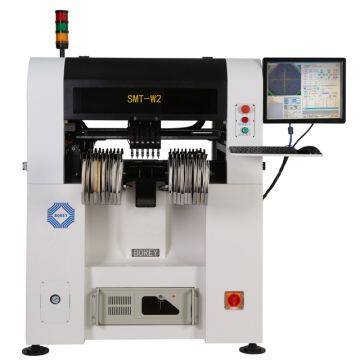

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders

Name: High Speed Chip Module Joining Pick And Place Machine With 60 Feeders
Brand: Borey
SKU: 159566737
Availability: InStock

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders thumbnail-1

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders thumbnail-2

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders thumbnail-3

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders thumbnail-4

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders thumbnail-5

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders photo-1

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders photo-2

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders photo-3

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders photo-4

High Speed Chip Module Joining Pick And Place Machine With 60 Feeders photo-5

US$ 11000 - 12000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Borey

Place of Origin:

China

Model Number:

SMT-W2

Contact Supplier Request Quote Chat Now

Beijing Boreytech Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Borey

Place of Origin China

Model Number SMT-W2

Product Description

Product introduction

1.Six-headed Pick up.

2.Six sets of high-speed cameras,1set of precision camera and set of Mark.

3.Computer Control.

4.Automatic Identification Of Mark Point.

5.Panasonic servo motor in Japan.

6.Japanese THK ball screw.

7.Components Available: 0402--QFP(35x35mm).

8.Automatic transmission of PCB board.

9.Full English interface.

10.Professional remote video technical support.

Item	Model No.	BOREY SMT-W2
1	Quantity of Mounting Head	6
2	Quantity of Cameras	8 Sets (6 sets of high-speed cameras, 1 set of precision camera and 1 set of Mark camera)
3	Max. PCB Board Size	330mm*250mm
4	Z Axis Max. Moving Range	15mm
5	Quantity of Feeders Available	50 sets of Tape Feeders of 8mm, supporting Tube Feeder, Bulk Feeder and IC Tray Feeder.
6	Max. Theoretical Mounting Speed	10000CHP
7	Average Theoretical Mounting Speed	8000CHP
8	Positioning Accuracy	0.01mm
9	Resetting Accuracy	±0.03mm
10	Buffering Range of Suction Nozzle	4mm
11	Motion Driving System	Servo Control System + Original Ball Screw of Japan Brand
12	PCB Boarding Mode	on-line automatic boarding
13	Component Rotational Angle	0-360°, synchronous rotation
14	Operating System	Windows XP, Win7 operating system
15	Components Available	0402, 0603, 0805 RC Components, Diode, Triode, SOT, TSOP, SOP and PLCC, CSP, QFP, BGA(35*35mm)with line spacing at 0.3mm, etc.
16	Motors	Panasonic Servo system
17	Visual Display	Industrial Control Display (Proportion: 4:3; Resolution: 1280*1024)
18	X/Y Motion Mode	2 axes simultaneous motion
19	Average Power	1000W
20	Power Supply	220V 50HZ
21	Programming Mode	able to import file format, like: Pick place file, Protel file, and import coordinates point by point.
22	Net Weight	About 450KG
23	Compressed Air Supply	0.6Mpa
24	Overall Dimension	110010001450MM

Main Structure-Part I(Mechanical Parts)

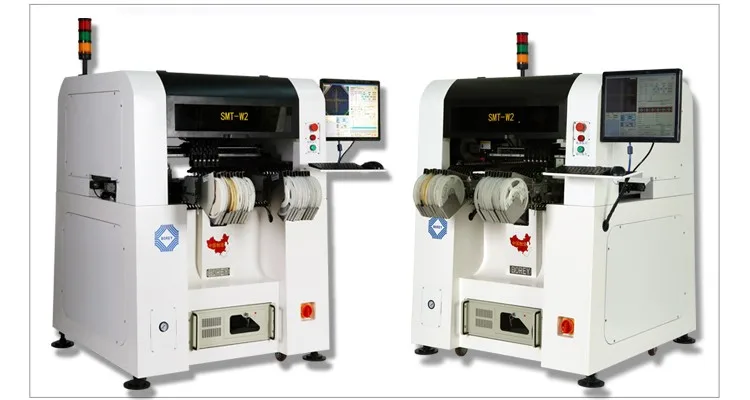

BOREY Model W1 SMT Pick and Place Machine is specially designed for industrial PCB production with small-batch, also suitable for R&D work in companies and for education purpose, which is refined on the design and the machining, being more compact with stronger ribs based on the previous version. Nice rigidity and high installation accuracy is ensured by the whole polishing treatment on the machine. The imported precision lead screws are applied in the whole machine to ensure accurate and reliable mounting during the production.

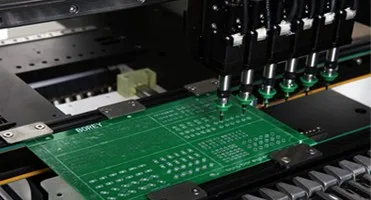

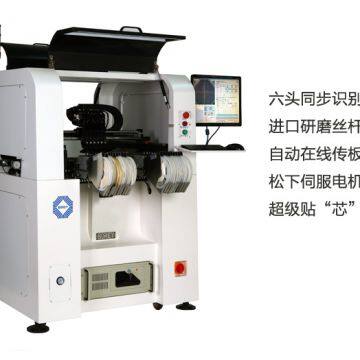

Synchronous Mounting of Six Heads for components from 0402 to the precision IC.

Certifications

Detailed Images

Main Structure-Part I(Mechanical Parts)

Full-automatic PCB Conveying

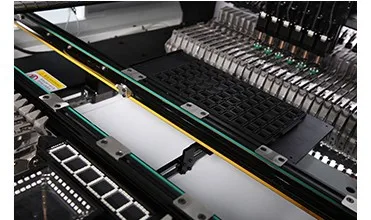

1.Full-automatic PCB Boarding and Leaving System.
2.being automatically connected with production.
3.for higher mounting productivity with easier operation.

Detection and Recognition System

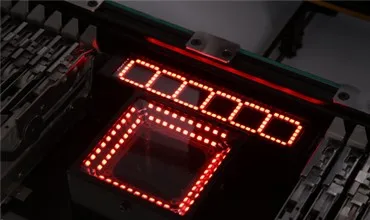

1. All Industrial CCD playing different roles are to maximize the mounting productivity based on the designed accuracy.
2. The Mark camera (Mark Point) being installed on the mounting head assembly is searching for Mark Point in the corresponding region by image recognition algorithm, the exact coordinates are calculated by software, and the mounting position coordinates for the components are generated.
3. after picking the component, the head places the component exactly by different visual identification CCDs (high speed CCD and single high definition chip recognition CCD).
4. The consistency of resetting accuracy of SMT machine is perfectly achieved by the combined effect of software and hardware.

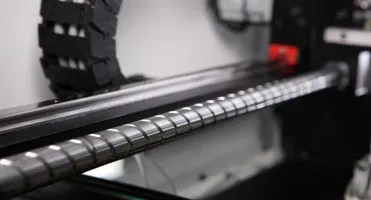

Original Ball screw

The stronger imported precision ball screw and the silent linear guide rail are adopted to ensure the mounting accuracy within 0.01mm.

SUCKERS

Adopt JUKI general nozzle, convenient and flexible。

500、501、502、503、504、505、506.

Our Service

Panasonic Servo Motors

Based on the previous version, model No. of W1 SMT Pick and Place Machine selects more powerful Panasonic servo system with superior mechanical adaptability to ensure the mounting accuracy being within±0.01mm for real production, which is suitable for the multi pin chips and QFN, BGA, etc..

Feeder

1.50 sets of tape feeders of 8mm supporting.

2.8 sets of exectric feeders supporting.

3.Stick feeders.

Packing & Delivery

The actual display

Packaging
Size	1150 (L) * 1200 (W) * 1100 (D)
Weight	450KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
