Specifications
Heavy copper Iron base PCB 6.0MM thickness Immersion GoldIron 4-Layer 2.5MM thickness 1.5OZ cu
Green soldermask
God finger

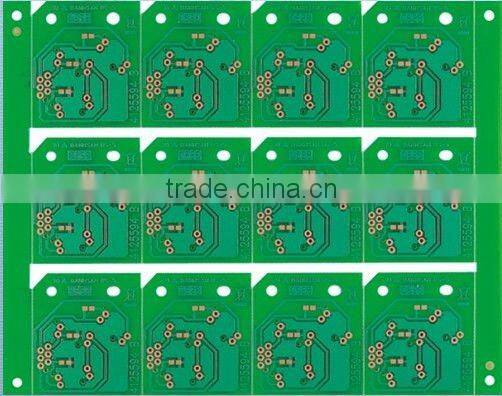

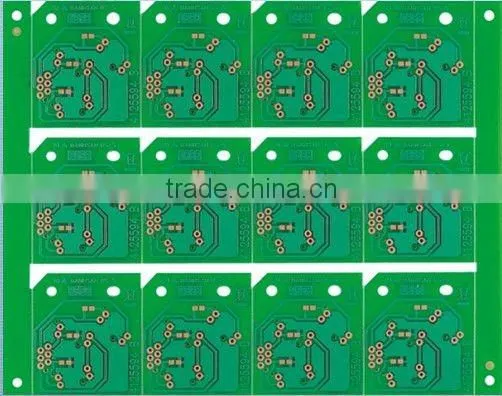

IC PCB SMT machine
Basic electronic parameters:
1. Manufacturer: RayPCB
2. Original place: Shenzhen China
3. Board material: Iron base
4. Tg: 120 °C
5. Board thickness: 2.5MM
6. Layer number: 4-Layer
7. Finishing copper size: 1.5OZ
8. Min line width / track: 0.3MM
9. Min line space / clearance: 0.3MM
10: Min hole / via diameter: 0.2MM
11: Via in plated pad over / VIPPO: No
12. Impedance control: No
13. Soldermask: Green
14 Silkscreen: /
15. Surface treatment technology: Gold finger
16: Single size: 275*205MM
Panel size: According to UR GERBER design requirements
17. More special requirements: Need YOUR confirmation
RayMing specializes in the PCB manufacturing of IC PCB SMT machine.
Main business: Single-sided, double sided and multilayer printed circuit boards(up to 40L), an some high end boards, e.g. high-frequency circuit boards, HDL boards with Buried & Blind Via PCB, Single-sided and double-sided Alumium boards.
Our products are widely use in power supplies, computers, comunications, optoelectronics, industrial instruments, engineer control, automobile and other consumer electronics.
Also, one-stop business of manufacturing PCB+PCB assembling+helping to purchase components, we'll serve for you.
We equipped with advance Processing Equipments and Measurement Techniques, such as: High Pecision CNC Drilling Machines, AOI Tester, German Flying Probe Testers and other advanced equipments, and High Frequency Board manufacturing, Special Impedance Control, Buried & Blind Via manufacturing, Flying Probe Test techniques.
Our customers mainly focus on North and South Americas; Europe; Australiasia; Russian and so on.
Any queries, just contact sales08 Nicole-----raypcb08(Skype)
