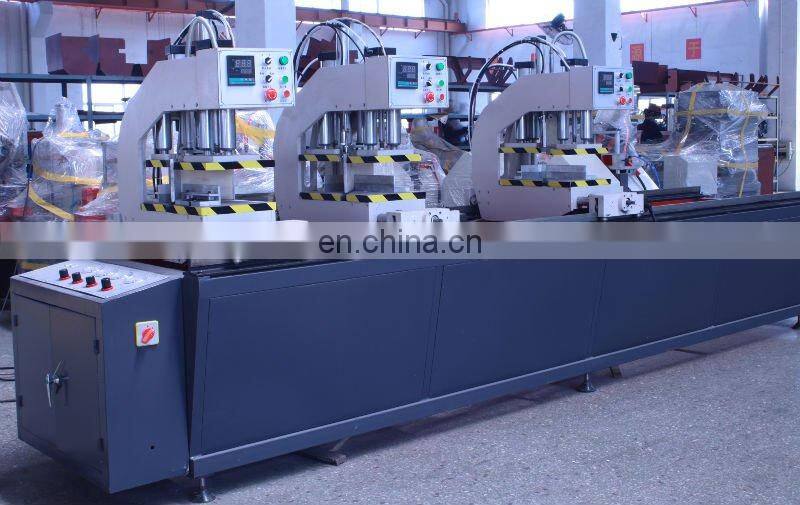

2 head welding machine for (UPVC window and door machine)
1.PVC door and window machine
individually and jointly
3.one of the machine head can work for any angel
Technical Parameter
| Model | SWFHJ-3500.3/3C | SWFHJ-2200.2/2B | SWFHJ-3800.2/2A |
| Power supply | 380V/220V 50HZ | 220V 50HZ | 220V 50HZ |
| Input Power | 3.5KW | 5.5KW | 3.5Kw |
| Air preeure | 0.4-0.6MPA | 0.6-0.8MPA | 0.4-0.6Mpa |
| Air consumption | 160L/min | 150L/Min | 150L/Min |
| Welding profile height | 20-100mm | 20-200mm | 15-260mm |
| Welding profile width | <=120mm | <=120mm | <=200mm |
| Welding length | 400-3300mm | 500-2200mm | 350-3800mm |
| Outside dimension | 4300x1000x1700mm | 3000x900x1950mm | 5000x1300x1750mm |
| Weight | 1200Kg | 1400Kg | 1080kg |
Functions
The machine is used for PVC window and door welding processing ; it can achieve the whole welding processing individually.It features advanced techn-ology,reliable function ,and easy operation.It adopts PC control ,penumatic driving and locating .The movable stand adopts nonil lubricating bearing and linear ball bearing that make it of high precision, easy operation ,and convenient maintenance. The machine heads can be used individually, simultaneously or combinatively.
The machine not only has the function of four-head welding machine, but also increases new function of "seamless" welding for colored and co-extrusion profiles. This machine has high efficiency and it can be suitable for large quantity and mass production.
Technique Other related machines
Classification |
Description |
PVC Welding Machine |
Two-Head Seamless Welding Machine SHZ2C-120X3500 |
|
Three-Head Seamless Welding Machine SHZ3C-120X3500 | |
|
Four-Head Seamless Welding Machine SHZ4C-120X3500 | |
|
Horizontal four corner welding machine SH4-120×1800×3000 | |
|
PVC Saw Machine
|
Double mitre saw for PVC profile SJ02-3500 |
|
Double mitre saw for PVC profile SJ06-3700 | |
|
PVC win-door glazing bead saw SYJ03-1800 | |
|
PVC win-door V-cutting saw VJ02-65 | |
|
PVC Cleaning Machine |
CNC Cleaning Machine for PVC Window and Door SQTS-120 |
|
CNC Cleaning Machine for PVC Window and Door SQTS-150 | |
|
PVC win-door corner cleaning machine SQT06-120 | |
|
PVC win- door V-corner cleaning machine SQJ05-120 | |
|
Portable Corner Cleaning Machine QJS03-120 | |
PVC Milling Machine |
Double axial automatic water groove milling machine SCX01-2 |
|
End-milling machine LXD02-200 | |
|
PVC profile sealed cover milling machine SFX01-160 | |
Other Machines |
PVC arch bending machine SYH-1800 |
Should any of our items be of interest to you,please don't hesitate to contact us.
Remarks:
A. Pkg: for long time transportation
B. Terms: Freight On Board (FOB Qingdao)
C. From Qingdao, China
D. Delivery Time: During 15 Days After We Receive Your First Payment.
E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
machine.
F. Guarantee period: 1 year from the date of customer receiving the machines.
