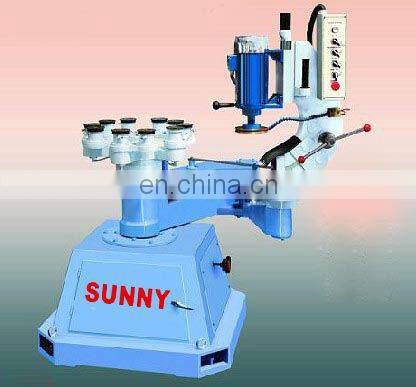

Round Glass Edging Machine

Round Glass Edging Machine thumbnail-1
Round Glass Edging Machine photo-1
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
sunny
Place of Origin:
Shandong, China
Certification:
CE
Contact Supplier Request Quote Chat Now
Nanjing Vacuum Bagging Film Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name sunny
Place of Origin Shandong, China
Certification CE
Warranty 1 year
Production Capacity high
Condition New
Voltage 380v
Machine Type Glass Edging Machine

                                                             round glass edging machine

Introduction:

1.it is designed for processing the edge of circle, ellipse, irregular glass

2.it can grind and polish pencil edge or ducklip edge, square edges, beveling and so on.

3.Its base is made of whole foundry, other parts are made of cast iron, which is put for long time assuring the high strength and long precision stability.

4.The glass is adsorbed onto a vacuum sucker. And with motor driving wheel or independent satellite rotating

5.its speed can be regulated freely

6. it can also semi -grinding on simple-shaped glass.

7.Using air pump to adjust the speed.

8.It can use three wheels for rough grinding, fine grinding and polishing.

9.If using it for grinding beveling edge, it can be installed a bowl-shape wheel and adjust the wheel beveling angle, can achieve better effect.

Main technical parameters:



Cover floor space:          1200mm x 1200mm

Thickness of the glass:        3mm-25mm

Max beveling width:          35mm

Processing diameter:        100mm-2100mm

Bevel edge angle:           0°-15°

Rotational speed:           0.5-2.5r/min

Total weight:                1000kg

Input voltage/frequency:   ~380v/50Hz

Power:                    3kw



related machines for glass:



 round glass edging machine     round glass edging machineround glass edging machine   round glass edging machine round glass edging machine



contacte person:jacky lee
