Insulating glass sealant spreading machine-ST02 Silicone Extruder Machinery
1. Features:
1.It is composed of raw material pump,solidification pharmaceutical pump,proportional pump,
sealant-mixture system,hydraulic pressure system,electric system and so on.
2.Raw material pump,solidification pharmaceutical pump and proportional pump adopt the
special high-pressure filling pump and the materials can be supported equivalently in two-way.
The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor.
3.There are high-pressure valves in the underpart entrance of solidification
pharmaceutitcal filter and material-feeding place of the mixing device and one-way valve is set
in the mixing device so as to prevent two-components from fleeing each other.
4.Rising and falling system is controlled by hand valve and the proportion of the two-components
can be changed by adjusting the slipper in the swinging pole.Tighening the nut once the demanding
scale is reached.
2. Technical data
Mixing ration proportion of mixture: |
6:1-14:1 |
Raw material barrel: |
55Gallon(200L) |
Solidification pharmaceutical barrel: |
5Gallon(20L) |
Max.air-consumption volume: |
0.5m3/min |
Max.squeeze pressure: |
20Mpa |
Air source pressure: |
0.5-0.8Mpa |

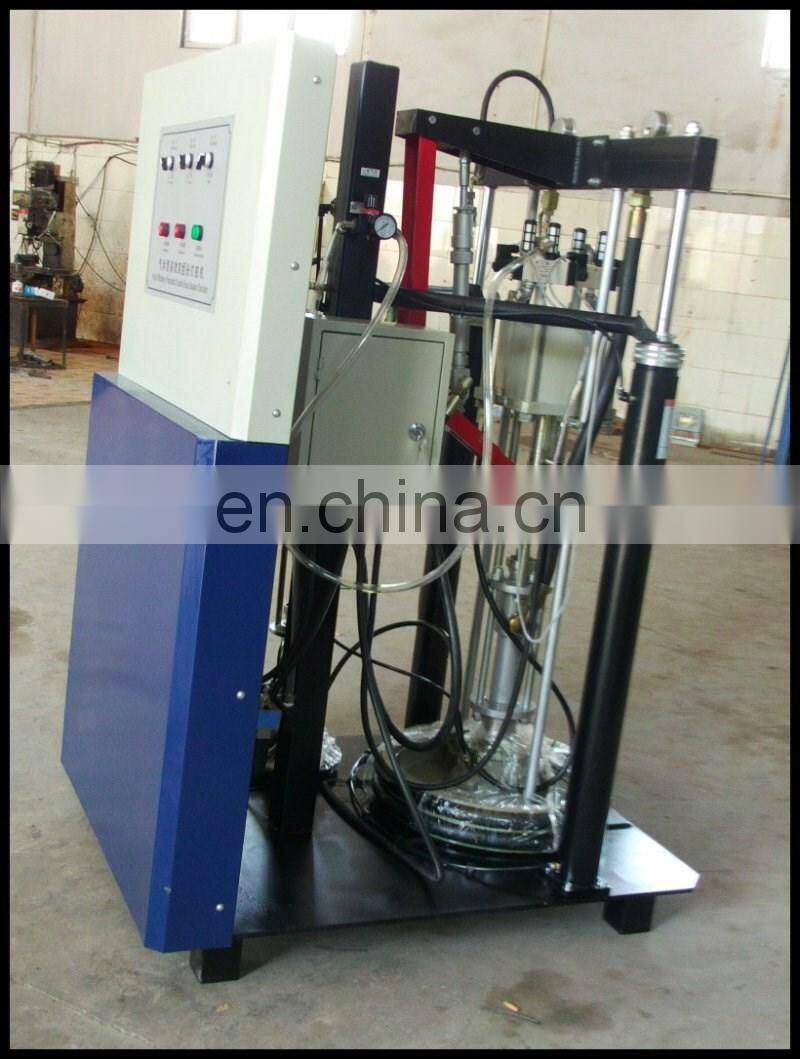

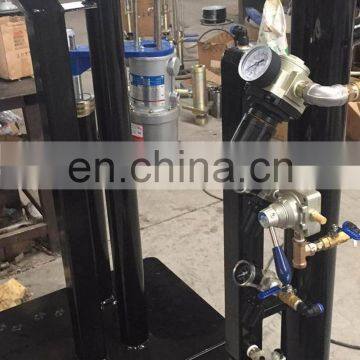

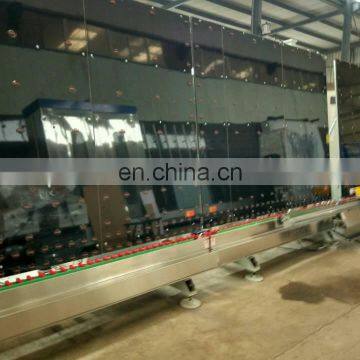

3. Real Photos
4. Remarks
Pkg: Seaworthy packing or customized
Terms: FOB/CIF/CFR/EXW
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive Your First Payment
Payment: Telex Transfer (T/T), 30% be Paid after Confirming the Order and
The rest 70% is effected while delivering the goods
Trademark: SUNNY
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
