IG flat press line-LBZ2500 Vertical Automatic Flat Press Insulating Glass Production Line
1. Features:
a. The whole line is composed of feeding part, glass washing and drying part, lamp inspection part,
glass conveyor part, aluminum frame locating part, flat (roller) press part, tilting part.
b. Low-E Insulating Glass Production Line, soft low-e brush installed, it can process low-e glass.
c. It can make triple insulating glass, that is three layers insulating glass and shaped insulating glass.
d. Washing and drying part with full stainless steel.
e. Heating device, auto heat the water in cold weather.
f. Man-machine interface, easy to operate
2. Technical Data
Model |
Max.Glass Size |
Min.Glass Size |
Glass Thickness |
Power |
Weight |
Dimension |
LBZ2500 |
2500*3000mm |
300*500mm |
3-50mm |
25Kw |
8000Kg |
22000*2000*3380mm |
LBZ2200 |
2200*3000mm |
300*500mm |
3-50mm |
25Kw |
6500Kg |
20000*2000*3000mm |
LBZ2000 |
2000*2500mm |
300*500mm |
3-50mm |
20Kw |
6000Kg |
14000*1680*2800mm |
LBZ1800 |
1800*2500mm |
300*500mm |
3-50mm |
20Kw |
5000Kg |
14000*1680*2600mm |
LBZ1800G |
1800*2500mm |
300*500mm |
3-50mm |
12.8Kw |
4800Kg |
13500*1680*2600mm |
LBZ1600 |
1600*2000mm |
300*500mm |
3-25mm |
13.59Kw |
4000Kg |
12000*1250*2600mm |
Above is the normallyed used size we produce, also we can make specially according to you requirements.

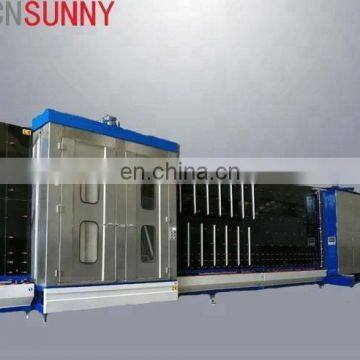

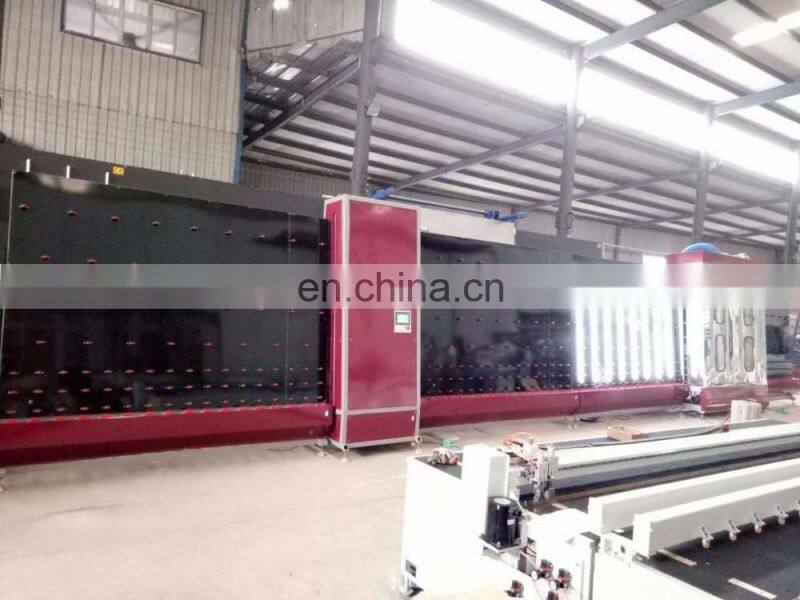

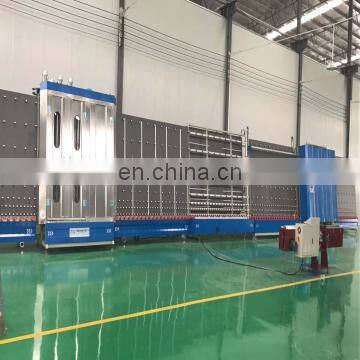

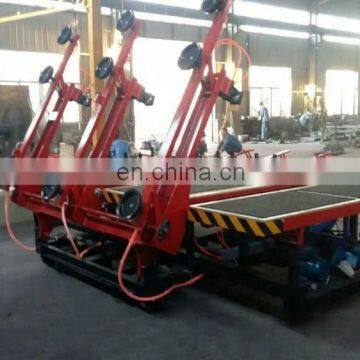

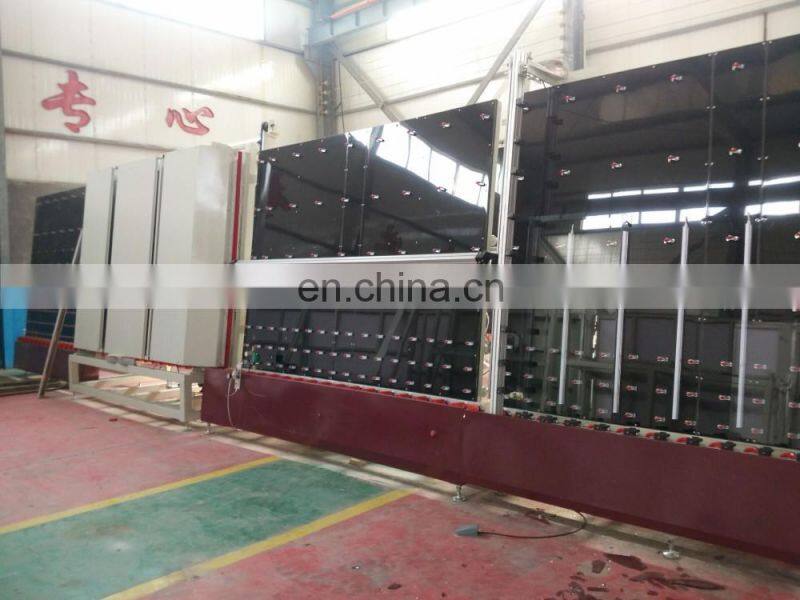

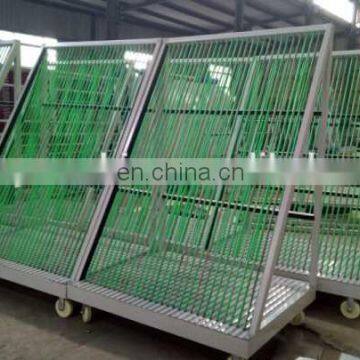

3. Real Photos
4. Remarks
Pkg: Seaworthy packing or customized
Terms: FOB/CIF/CFR/EXW
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive Your First Payment
Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and
The rest 70% is effected while delivering the goods
Trademark: SUNNY
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms.Sailing He
Mobile: +86 18005318120 (Wechat)
Skype: judy.he74
TM: cn209682722
