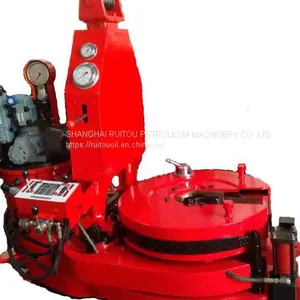

API Specification 7K /Power Tongs/ZQ203/125B Drill Pipe Power Tongs(with Hydraulic Suspender)
US$ 10000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Ruitou
Place of Origin:
China
Model Number:
ZQ203/125B Drill Pipe Power Tongs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Specification 7K /Power Tongs/ZQ203/100(125)C Drill Pipe Power TongUS$ 10000 - 100000MOQ: 1 Set -
API Specification 7K /Power Tongs/ ZQ216/140 Drill Pipe Power TongUS$ 10000 - 100000MOQ: 1 Set
-
API Specification 7K /Power Tongs/ ZTQ270-100 / ZTQ270-100A COMBINNING POWER TONGSUS$ 10000 - 100000MOQ: 1 Set
-
API Spec 7K Standard/Slips/ Slip Type Elevators/SpidersUS$ 10000 - 100000MOQ: 1 Set
-
API Spec 7K Standard/Slips/ Type WA-C and WA-T Safety ClampsUS$ 10000 - 100000MOQ: 1 Set
Brand Name
Ruitou
Place of Origin
China
Model Number
ZQ203/125B Drill Pipe Power Tongs
Type
Other
Certification
API 7K , ISO 9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1
Weight
Specification
Dimension(L*W*H)
Specification
Power Type
Electric
Voltage
Specification
Condition
New
ZQ203/125B Drill Pipe Power Tongs(with hydraulic suspender)
Technical Parameters:
| Model | ZQ203/125B | |
| Applicable Pipe Diameter | mm | 127～203 |
| in | 3½~8 | |
| Max. Torque | KN·m | ≥125 |
| lbf·ft | 92200 | |
| Rotational Speed of High Gear of Tongs Head | rpm | 40 |
| Rotational Speed of Low Gear of Tongs Head | rpm | 2.7 |
| Rated pressure | MPa | 20 |
| psi | 2900 | |
| Rated Flow | L/min | 114 |
| gpm | 30 | |
| Shifting Distance of Shifting Cylinder | mm | 1500 |
| in | 59 | |
| External Dimensions | mm | 1720×1050×1750 |
| in | 68×41×69 | |
| Weight | kg | 2600 |
| lb | 5730 | |
