Home > Manufacturing & Processing Machinery > Drilling Rig > Oilfield Drilling Rig > API Specification 7K /Power Tongs/ ZQ216/140 Drill Pipe Power Tong

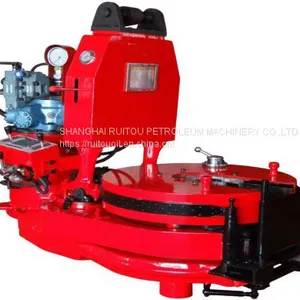

API Specification 7K /Power Tongs/ ZQ216/140 Drill Pipe Power Tong
US$ 10000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Ruitou
Place of Origin:
China
Model Number:
ZQ203/125B Drill Pipe Power Tongs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Specification 7K /Power Tongs/ ZTQ270-100 / ZTQ270-100A COMBINNING POWER TONGSUS$ 10000 - 100000MOQ: 1 Set -
API Spec 7K Standard/Slips/ Slip Type Elevators/SpidersUS$ 10000 - 100000MOQ: 1 Set
-
API Spec 7K Standard/Slips/ Type WA-C and WA-T Safety ClampsUS$ 10000 - 100000MOQ: 1 Set
-
API Spec 7K Standard/Slips/ Type MP Safety ClampsUS$ 10000 - 100000MOQ: 1 Set
-
API Spec 7K Standard/Slips/ DU Rotary SlipsUS$ 10000 - 100000MOQ: 1 Set
Brand Name
Ruitou
Place of Origin
China
Model Number
ZQ203/125B Drill Pipe Power Tongs
Type
Other
Certification
API 7K , ISO 9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1
Weight
Specification
Dimension(L*W*H)
Specification
Power Type
Electric
Voltage
Specification
Condition
New
ZQ216/140 Drill Pipe Power Tong
Technical Parameters:
| Model | ZQ216/140 | ||
|
Applicable Pipe OD |
Drill pipe | mm | 128-216 |
| in | 31/2〞～81/2〞 | ||
| Casing | mm | —— | |
| in | —— | ||
| Oil pipe | mm | —— | |
| in | —— | ||
| Max. Torque | kN·m | 140 | |
| ft·lbf | 103265 | ||
| High Speed | rpm | 35 | |
| Low Speed | rpm | 2.4 | |
| Air Pressure | MPa | 0.5～0.9 | |
| psi | 72.5～130.5 | ||
| Rated Pressure | MPa | 18.5 | |
| psi | 2683 | ||
| Rated Flow | L/min | 114 | |
| gpm | 30 | ||
| Shifting Distance | mm | 1500 | |
| in | 59 | ||
| Lifting Distance | mm | 0～1000 | |
| in | 0～39.4 | ||
| Size | mm | 1755×1060×1350 | |
| in | 69×41.7×53 | ||
| Weight | kg | 2800 | |
| lb | 6160 | ||
