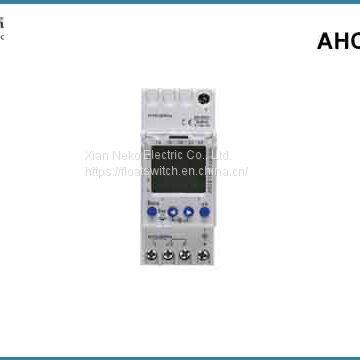

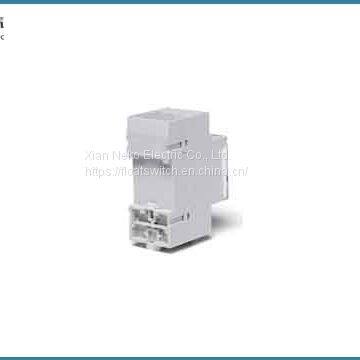

AHC810 220 VAC 50-60 Hz Programmable Automatic Control Type Digital Timer Switch

AHC810 220 VAC 50-60 Hz Programmable Automatic Control Type Digital Timer Switch

The AHC810 Din rail weekly program digital time switch have a wide screen, display more information, and unit have seven kinds of language to choice.



Description
- Digital time switch
- 44 memory locations
- Language(English/Spain/France/Portugal/Germany/Italy)
- Automatic summer/winter time
  EUROPE
  Great Britain
  U.S.A/Canada
- PIN Code
  Display year/month/day/hour/minute
- Built-in lithium battery,power failure memory
- Fully operable without mains connection
- Preset date and time
- Manual ON/OFF control
- Screw terminals

Applications

- Light of billboard or showcase control
- Air-condition or Commercial Refrigeration
- Pumps/Motor/Fan Control
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
- Boilers / Heater Control
- Ventilation
- Lighting Panel Control
- Landscape Lighting
- Bug and Pest Control Systems
- Aerobic Waste Water Systems
- General Electrical Circuits



Product Selection

Product Type	Voltage	Frequency	Consumed power	Terminal	Channel
AHC810-220/50Hz	220V	50Hz	4VA	5	1
AHC810-220/60Hz		60Hz
AHC810-110/50Hz	110V	50Hz	5VA
AHC810-110/60Hz		60Hz
AHC810-12V	AC/DC 12V	50/60Hz for AC	4VA
AHC810-24V	AC/DC 24V
AHC812-220/50Hz	220V	50Hz	7.5VA	8	2
AHC812-220/60Hz		60Hz
AHC812-110/50Hz	110V	50Hz
AHC812-110/60Hz		60Hz
AHC812-12V	AC/DC 12V	50/60Hz for AC
AHC812-24V	AC/DC 24V



Technical Data

Operating voltage	220V AC
Width	2 modules
Installation type	Din rail
Type of contact	Changeover contact
Switching output	Phase-independent
Method of connection terminal	Screw terminals
Power reserve	4 years
Switching capacity at  250 V AC, cos φ = 1	16A
Switching capacity at  250 V AC, cos φ = 0,6	10A
Incandescent/halogen lamp load 230V	2600W
Energy saving lamps	170W
LED lamp < 2 W	30W
LED lamp 2–8 W	100W
LED lamp > 8 W	120W
Fluorescent lamp load (electronic ballast)	650W
Fluorescent lamp load (conventional) not corrected	1000VA
Fluorescent lamp load (conventional) series-corrected	1000VA
Fluorescent lamp load (conventional) parallel-corrected	730 VA 80uF
Time accuracy at 25 °C	typical ± 2 s/day (quartz)
Test approval	CE
Type of protection	IP 20
Protection class	II according to EN 60 730-1
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Work  temperature:	-10 ~ +50 °C (non-icing)
Ambient humidity:	35~85% RH
