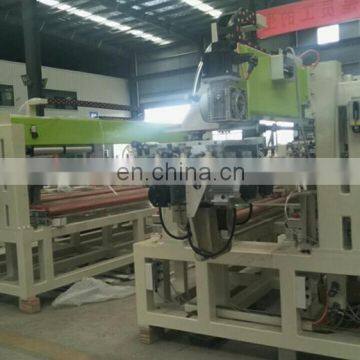

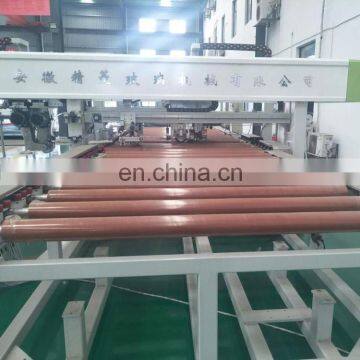

Automatic Glass 4 Side Grinding Machine

Automatic Glass 4 Side Grinding Machine thumbnail-1
Automatic Glass 4 Side Grinding Machine thumbnail-2
Automatic Glass 4 Side Grinding Machine thumbnail-3
Automatic Glass 4 Side Grinding Machine thumbnail-4
Automatic Glass 4 Side Grinding Machine thumbnail-5
Automatic Glass 4 Side Grinding Machine thumbnail-6
Automatic Glass 4 Side Grinding Machine thumbnail-7
Automatic Glass 4 Side Grinding Machine photo-1
Automatic Glass 4 Side Grinding Machine photo-2
Automatic Glass 4 Side Grinding Machine photo-3
Automatic Glass 4 Side Grinding Machine photo-4
Automatic Glass 4 Side Grinding Machine photo-5
Automatic Glass 4 Side Grinding Machine photo-6
Automatic Glass 4 Side Grinding Machine photo-7
US$ 40,000 - 40,000 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
JINGLING
Place of Origin:
Anhui, China
Certification:
CE
Contact Supplier Request Quote Chat Now
Henan Yuanbei Glass Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JINGLING
Place of Origin Anhui, China
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Weight 3000kg
Dimension(L*W*H) 7500*4000*2000mm
Production Capacity 25m/min
Condition New
Voltage 380V 50HZ
Power(W) 15kw
Machine Type Glass Edging Machine

Characteristic

-       PLC control, easy operation

-       Recycle water system

-       Glass size automatic identification

-       Glass automatic location

-       SUS304 model top quality stainless water tank

-       8 servo motor and 8 axis link work system

-       Self-diagnosis function

-       High work efficiency and precision



Main Parts:

Name

Brand

Place of origin

PLC

Mitsubishi/Delta

Japan

Touch screen

Wei Lun

Japan

Servo Motor

Delta/Estun

Taiwan

Linear Guides

PMI

Taiwan

Pneumatic element

Airtac

Taiwan









Technical Parameters

Max glass length

No limited

Max glass width

2400mm

Min glass size

650*350mm

Glass Thickness

4-8mm

Edging size

0.5-2mm

Edging speed

0-25m/min

Grinding quantity

2 Groups (2+2 wheels)

Dimension

7500x5000*1600mm

Power

12KW

Air pressure

0.6-0.8Mp



JL-CNC-4228 CNC Automatic Shaped Glass Cutting Line

Feature:

-       High automation

-       Optimize software, save glass material

-       High speed and high work efficiency

-       Any shape available



JL-CNC-4228 CNC Automatic Shaped Glass Cutting Line

Introduction

The line mainly contains three sections:

1.     JL-QSP-4228 Automatic Glass Loading Table

2.     JL-CNC-4228 CNC Automatic Shaped Glass Cutting Machine

3.     JL-BQZ-4228 Glass Breaking Table



The main performance of motion Controller (Galil)

-       Running fast, smooth operation, high precision control, the controller modular structure.

-        Line cutting mode, optical positioning cutting mode, cutting mode directly by the option set free. Process can readily achieve automatic cutting mode with the dry run mode.

-       After a full glass pressure store, disposable cutting thickness specifications of the input pressure to save, you can directly used.

-       Machining path display real-time tracking and timely recording moving coordinate axis status, I / 0 status, fault diagnosis and alarm automatically record.

-       Receive a variety of processing documents, accept standard G code Optima and other nesting software, AUTOCAD DXF file, the system comes with graphics editing software(Exactly the same way with Bottero editor).

-       Security can be set under the knife away. Editing files can not trimming, improve the utilization of glass.

-       Gallery nesting program, selected from the gallery shaped, set the relevant parameters, the number of processing, automatic nesting, generate toolpaths.

-       Compensation: Tool eccentricity compensation, backlash compensation, pitch compensation.

-       Optical positioning function (accurately determine the actual position of the glass), according to the actual position and the deflection angle, automatic adjustment of the cutting.

-       Can be realized by setting options in English interface switching, and imperial, metric programming. Easy to use foreign users.

-       Various protection: Includes soft and hard limit, blade pressure limit, external emergency stop control, etc.

-       Speed increase / decrease buttons timely optimize machine cutting speed.

-       Man-machine interface is simple and elegant, simple parameter adjustment, less need for the operator to modify the parameters, simple and intuitive, requiring low operating personnel.

-       Find edge speed, back to zero faster.

-       Cutting speed: 160m / min.

-       Has a relatively rich graphics library, you can expand the gallery.

-       Shaped scanning high precision, simple graphics can be saved directly processed.

-       Cutting interface displayed directly cut a small piece size (with the OPTIMA software).

-       Opened directly from within the software optimization software.

-       Under the pipeline mode automatically wrap view of optimization software program, continuous processing.

-       Fast patrol side positioning feature, you can grab a one-time patrol edge signal, improve work efficiency.



OPTIMA OPTIMIZATION SOFTWARE( Italy)

-       The main performance of  optimization software

-       Optimization results can be imported in the office to do;

-       Cutting programs can be created and edited manually.

-       With a copy and move functions.

-       You can manually edit the cutting sequence.

-       XYZ mode can be used to quickly create cutting plan.

-       Can be a variety of original pieces and small pieces while optimizing.

-       Optimized layout no size limit.

-       Optimization results rotate, mirror management.

-       Cutting a small piece of the priority management to optimize.

-       Priority management optimization original film.

-       Original film library management.

-       20 kinds of efficient optimization algorithms.

-       Graphics can be edited on the cutting.

-       Label design and label printing (Label-WAY).

-       Optimization results clearly printed report.

-       Excel data file import.

-       Low-E and laminated glass cutting management.

-       Graphics library containing 350 parametric graphic, including all common graphic types (Geo-Way).

-       Two-dimensional CAD system with profiled scan processing functions (Cad-Way).

-       The digital signal is automatically converted to a numerical control system from the graphical point forming.

-       Software interface has a choice of languages, including Chinese interface selectable.

-       Tracking the latest international software development, providing real-time upgrade version, for customers to achieve the latest functional requirements.
