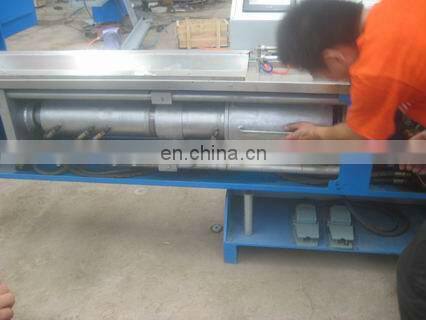

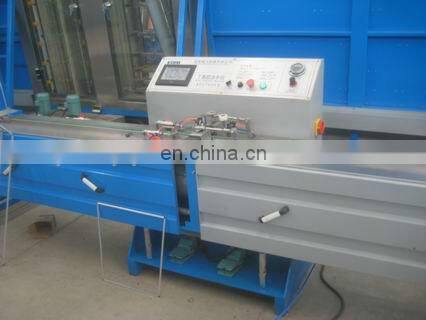

DJT04-H Butyl Rubber Extruder Insulating Glass Machine
US$ 5,600 - 8,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Weili
Place of Origin:
Shandong, China
Certification:
CE & SGS
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulating Glass Equipment Auto Butyl Glue Extruder Machine for Double Glazing Production Line IGUUS$ 7,220 - 8,000MOQ: 1 Set -
Butyl Coating Machine/Hot Melt Extruder Coating Machine for Insulating Glass Production LineUS$ 7,270 - 8,000MOQ: 1 Set
-
Insulating Glass Butyl Extruder Machine/butyl Coating Machine for Aluminum Spacer BarUS$ 7,270 - 8,000MOQ: 1 Set
-
Process Arc-shaped Spacer Bar WL-2000 Automatic Glass Double Machine Butyl Extruder MachineUS$ 7,500 - 9,200MOQ: 1 Set
-
Automatic Coating Butyl Machine for Making Insulating GlassUS$ 4,242 - 4,666MOQ: 1 Set
Brand Name
Weili
Place of Origin
Shandong, China
Warranty
1 Year
Weight
810kg
Dimension(L*W*H)
3000x620x1100m
Production Capacity
30 sets/month
Condition
New
Voltage
380V, 50HZ
Power(W)
2.9 Kw
DJT05-H butyl rubber extruder
Main Function

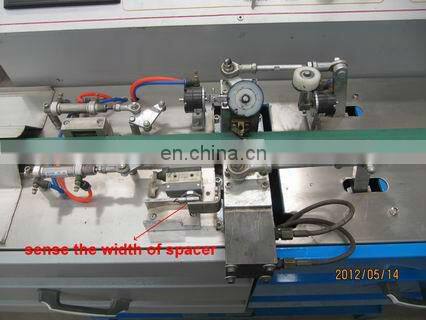

- Automatic control of nozzle width in application of pneumatic and hydraulic parallel method, controlled by program. Easily and quickly changeable of spacer width when operate consecutively.

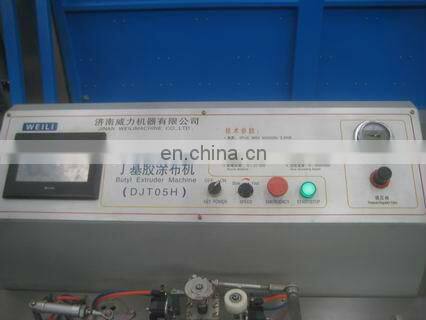

- Easily controllable by PLC control system with touch screen interface.
- Adopts the imported Hydraulic and Pneumatic supercharging system.
- Adopts the timing heating and advanced bidirectional glue cylingder-in and out system and function, it just takes few minutes to finshing replacing butyl and improves the working efficiency.
- Possess of unique butyl quantity alarm system.
- Much more humanism design, the entire machine operation table can be realized up and down automatically.
- Available for curved spacer extruding.
Main Technical Data
Power supply |
380V, 50HZ |
Total power |
2.9 Kw |
Transmit speed |
0~35 m/min |
Temperature |
110-160°C |
Air pressure |
0.6-0.8Mpa |
Squeeze pressure |
12~18 Mpa |
Adjustable range |
0~27 mm |
Air consumption |
50L/min |
External dimension |
3000x620x1100m |
Total weight |
810kg |
