Butyl Machine for IGU

Butyl Machine for IGU thumbnail-1
Butyl Machine for IGU photo-1
US$ 10,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WEILI
Place of Origin:
Shandong, China
Certification:
CE,BV and SGS
Contact Supplier Request Quote Chat Now
Qingdao Yuntai Industry Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WEILI
Place of Origin Shandong, China
Warranty 1 Year
Weight 700kgs
Dimension(L*W*H) 950*600*3000mm
Production Capacity 20sets/month
Condition New
Voltage 380V,50HZ
Power(W) 3.75kw
Machine Type Insulating Glass Production Line

                                      WL-2000  BUTYL EXTRUDER



This machine is designed combining domestic and foreign advanced technology. So the performance and function is reliable. Besides, gluing effect is good. it is indispensable equipment for whole processing.



Main Specification and character:



1 it is automatic butyl extruder



2 the whole body frame is made by CNC bended stainless steal



3 applied 5.7 inches color man-machine interface, at the same time, PLC Control system can be oriented and transfer



4 adopt stepless speed regulation and ensure aluminum frame transmission stable

5 Auto-induction system induct aluminum width and adjust the distance between nozzles, which can make extrude evenly

6 adjust import

MAXIMATOR Pneumatic and hydraulic supercharging system

 and make supply voltage stable, guarantee extrude evenly.

7 butyl cylinder can contain 14L butyl and it is so convenient and save time



Technical parameter







Machine sizes

950mm(H)*600mm(w)*3000mm(L)



Spacer width

  6mm,9mm,12mm,16mm,19mm

Minimal size

  250mm*250mm

Maximal size

2500mm*2500mm



Speed

0-25m/min



Butyl volume

14L(2blocks)



Power source

  AC 380V 3ph 50HZ

Total power

3.75kw

Air pressure

  8kgf/cm^2









Main spare parts







PLC

Omron

Japan

Hydraulic station

Maximator

Germany

Switching power suply

Omron

Japan

Low voltage device

Schneider

France

Pneumatic component

Airtac

Taiwan

Touch screen

Omron

Japan

Electromagnetic valve

Autos

Italy

Temperature controller

Omron

Japan









Product Description



butyl machine for IGU

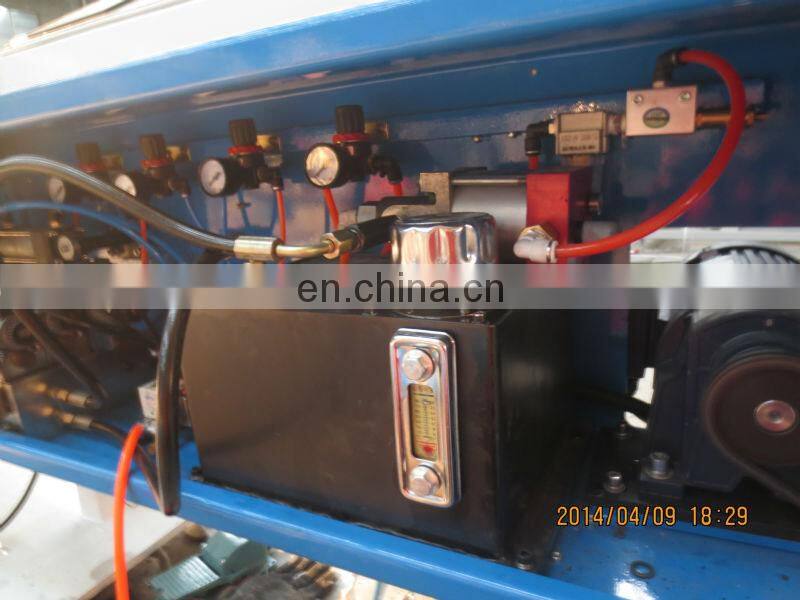

                  MAXMATOR supercharging system can

make sure run 100,000 times without fault

butyl machine for IGU

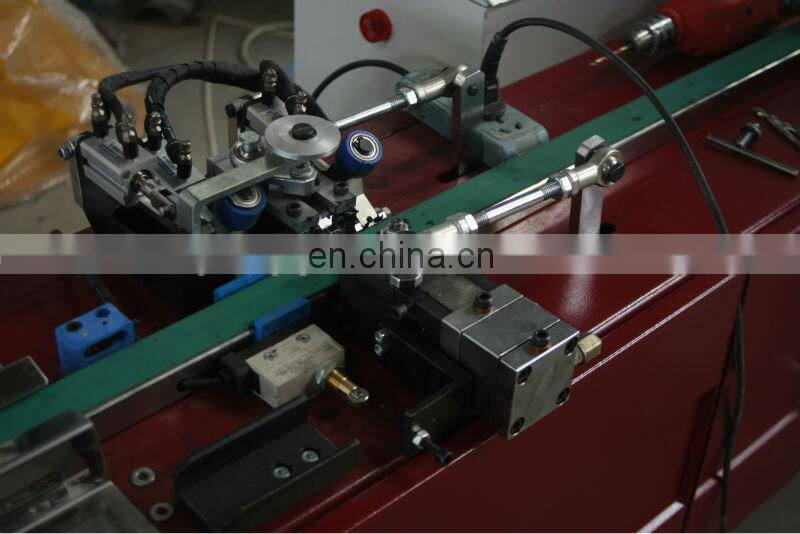

 Nozzle distance can be adjusted according to spacer bar width

 butyl machine for IGUbutyl machine for IGU





Company Information



  butyl machine for IGU



                                        Finished products area





 butyl machine for IGU
