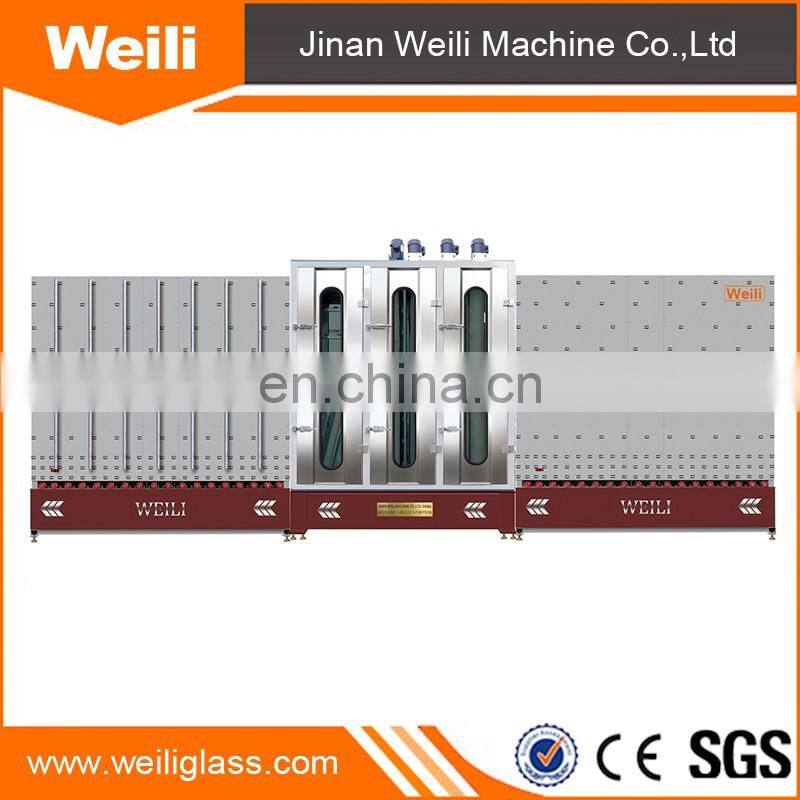

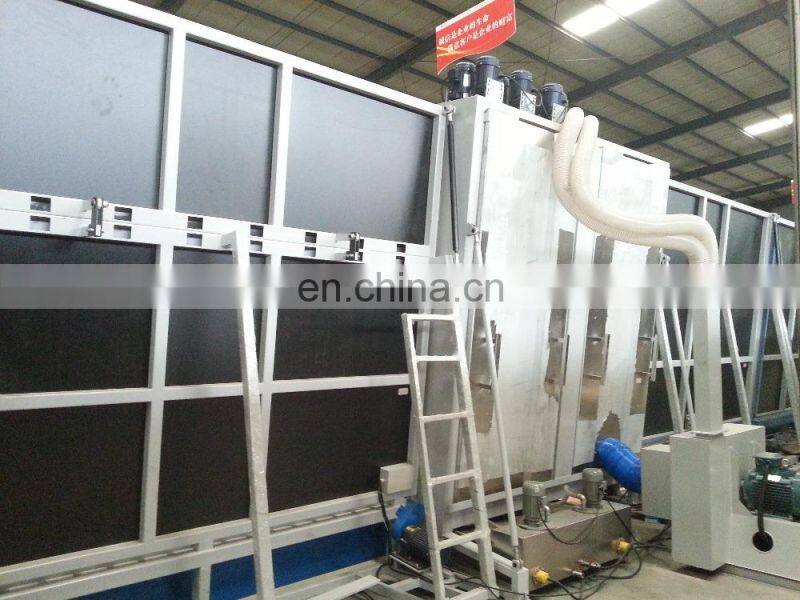

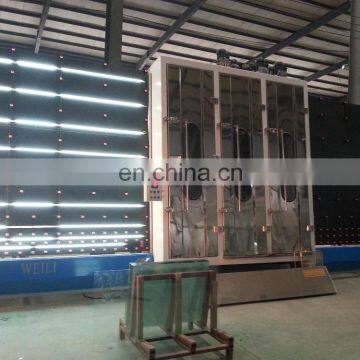

Help CenterLQ2500 Vertical Glass Washing and Drying Machine
Related Products
-
WX1800B Horizontal Brush Glass Washing and Drying Cleaning Machine Insulating Glass MachineUS$ 4,300 - 5,200MOQ: 1 Piece -
WX2000B Horizontal Glass WasherUS$ 3,200 - 4,600MOQ: 1 Piece
-
LBW2000PB Glass Washing and Drying Machine for Low-E GlassUS$ 15,200 - 16,600MOQ: 1 Piece
-
LBW1800PB Vertical Glass Washing and Drying Machine for Low-E GlassUS$ 12,100 - 13,300MOQ: 1 Piece
-
LBW2000PB Glass Washing and Drying MachineUS$ 15,150 - 16,650MOQ: 1 Set
Double Glazing Machine- Automatic Bar Bending Machine with High-efficiency
1.The cleaning section and the water tank are all made of stainless steel and corrosion-resistant materials. The transmission roller is made of acid & alkali proof rubber and it can automatically adjust the distance between the two rollers according to the thickness of the glass.
2. Three pair of brushes work together with the high-pressure water sprayers and a pair of sponge roller, guaranteeing the cleaning quality. The door is made of tempered glass and the washing conditions can be seen through the door. The water sprayers are easy to disassembly and clean. The hair of brushes is for common glass, andφ0.12mm.
3.The washing and drying section adopts stepless frequency speed control system to change the speed, enabling the glass move steadily at a proper speed.
4.The drying section has a pair of gradient air knife. According to the thickness of the glass, the front air knife can automatically adjust the distance. The wind machine with a heater blows out strong hot air. The wind machine, together with the infrared heating pipe, makes the two sides of the processed glass dry
5.The water system includes two independent water circulation systems and the water can be recycled. The water tank is equipped with a heater that can keep the water temperature automatically. If the water quality is bad, a water treatment plant is needed.
6.Electric components in cabinet adopts foreign brand, like Schneider from France.
Technical Data:
Power supply: |
380V 50Hz ,3p(can be designed according to customer’s demand) |
Power: |
18.6KW |
Max. process glass: |
3000x2500mm |
Min. process dimension: |
500x600mm |
Thickness of glass sheet: |
3~15mm |
Max. process speed: |
0-8m/min |
Dimension: |
8600x3000x3500mm |
Total Weight: |
About 3200 KGS |

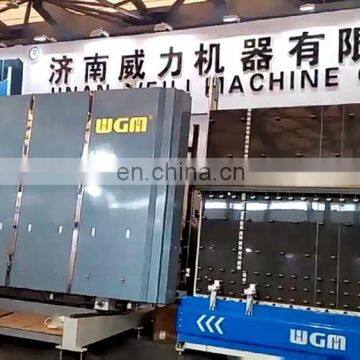

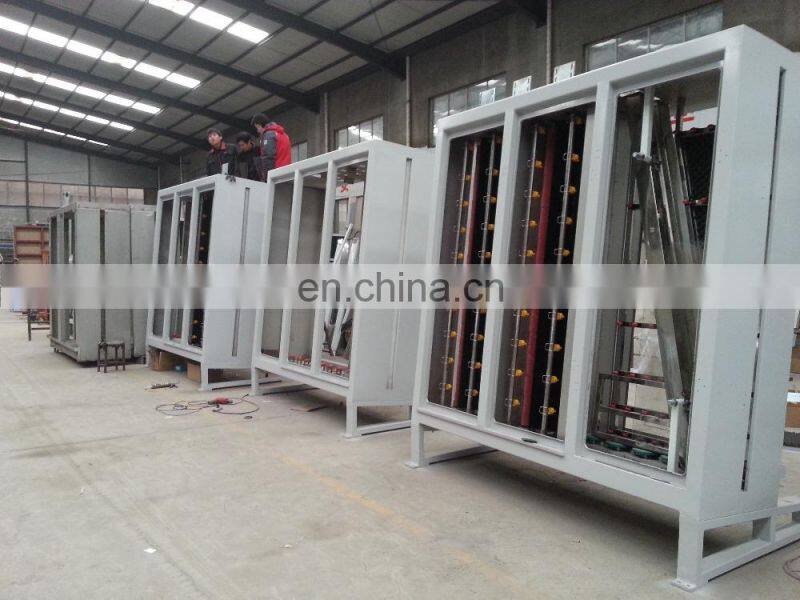

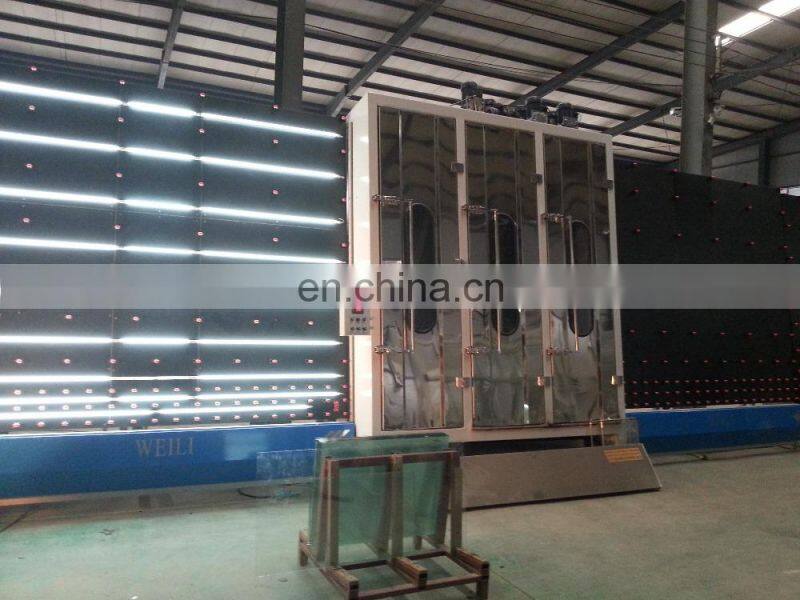

Workshop1

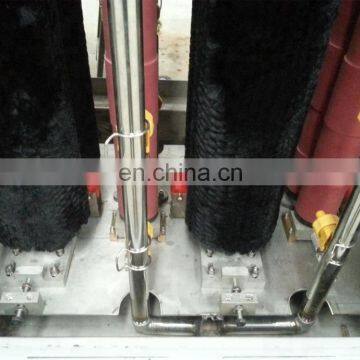

Washing Picture

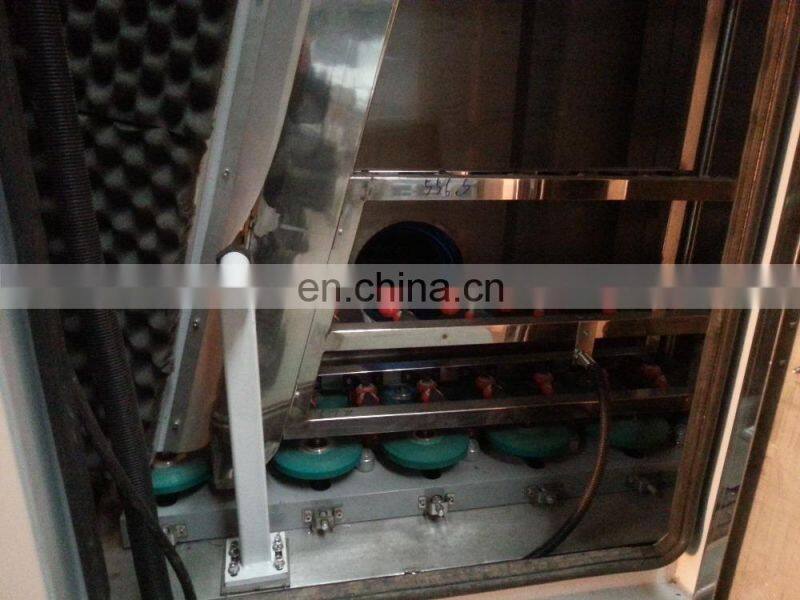

Drying Picture
The back picture of washing Machine

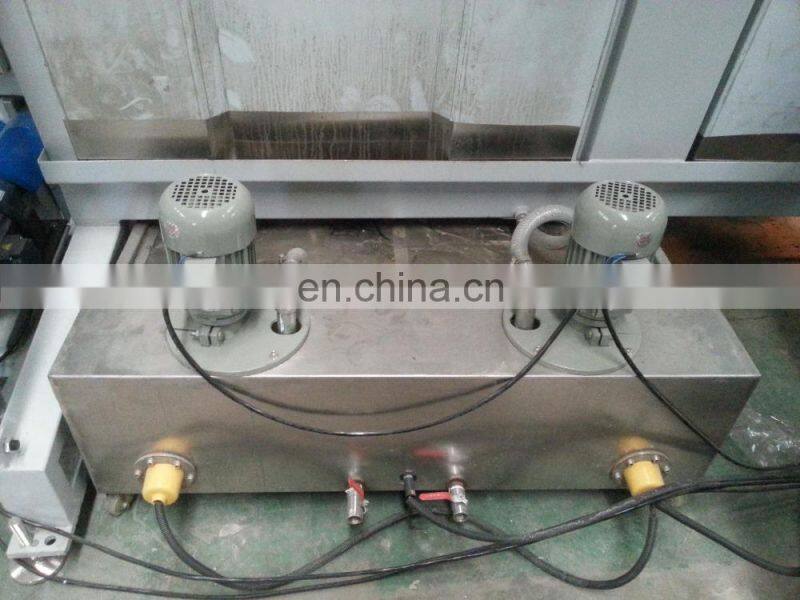

The Water Tank of Washing Picture

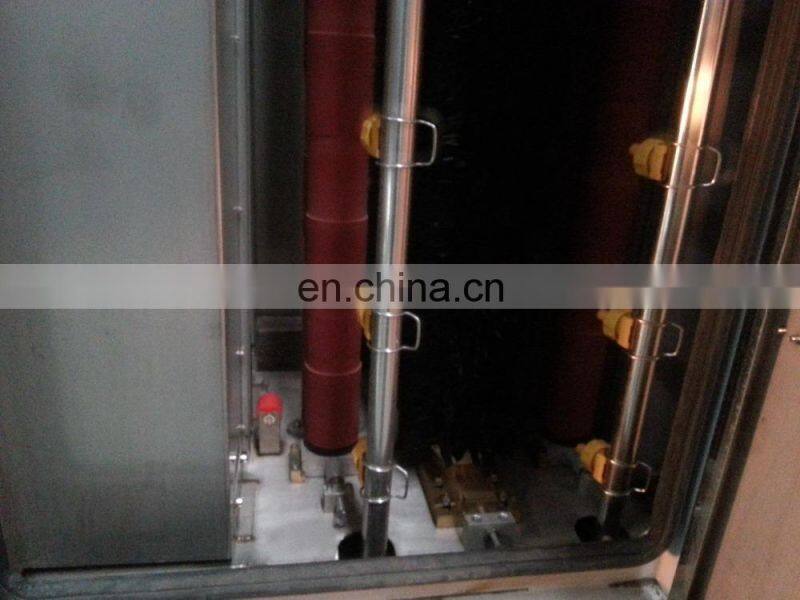

The wash roller for common glass & Low-e glass
Installation: If the buyer needs, the seller will send one or two technicians (one is electrical engineer, one is mechanical engineer) to install the machines and help train the workers.
Warranty time: Usually one year. It is negotiable.
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Based on the operating mode:”Professional, Meticulous, High, Top” ,our company has grown up to the leader of equipment line. It makes effort to create respected brand name by all glass industries.
Constantly making innovations, Capturing high technology, prompting the total level of industry, then to make Chinese mature and high technology insulating glass equipment for international, and accepted by international users. That is the Weili people working’s goal and responsibility.
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 16 years history since 2001.
2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What’s the guarantee ?
Answer:
1). Our guarantee for 18 months.
2). 18 hours’ technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filiing machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
