Automatic Glue Sealing Machine WL2500-31
The Introduction of System
This system is a set of automatic sealing system for double glazing/triple glazing insulating glass.

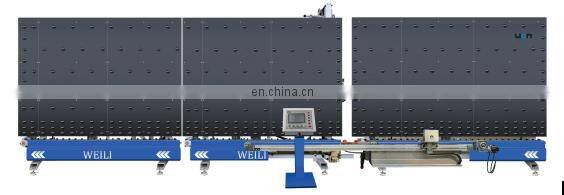

The system can be sealed for different size of the hollow glass processing. The system is shown in the figure below
Functions
Friendly man-machine interface is concise users will be more convenient to operate.
Touch screen
This system has the thickness detection device and depth detection device by the high resolution sensors.
Combined with automatically sealing function and adjusting the volume of the glue, it can greatly improve the efficiency of production.
This system is equipped with a clamping device, which can insure the glass to move more securely in the process of transmitting and gluing.
The system has two sets of sealing system(optional), to change glue easily during production.
This system can be used in triple glazing glass. Firstly,it glues for the first space,when it finishes,the rubber head will adjust the angle for gluing the second space.
The V belt can adjust automatically according to the thickness of glass.
Rubber head pressure device can adjust glue head moving cylinder pressure through the precision of electric proportional valve to make the glue head attach
the glass more smoothly

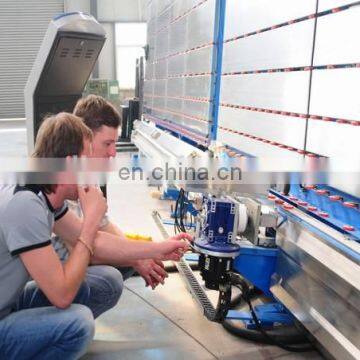

glue head
The structure of centering rubber head can adjust the rubber head according to the thickness of glass to ensure the effect of the gluing.
Main Electrical Component
No. |
Name. |
Brand |
Country |
1 |
Servo motor |
Yaskawa |
Japan |
2 |

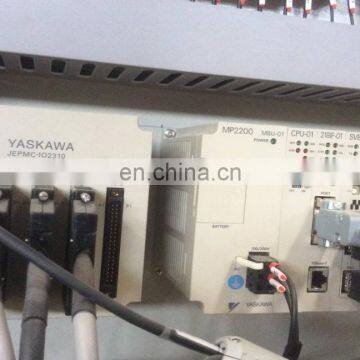

Controls ystem |
Yaskawa |
Japan |
7 |
Low-voltage component |
SIMENS |
GERMANY |
11 |
Precise adjust pressure valve(five ps) |
SMC |
Japan |
15 |
Air cylinder |
Airtac |
Taiwan |
Technical parameter
Product model |
WL2500-31 |
|
Min.glass size |
400*400mm |
|
Max.glass size |
2500*3500mm |
|
Glass thickness |
3-12mm |
|
Sealant-mixing system |
single Sealant-mixing system |
|
Insulating glass thickness |
12-56mm |
|
Sealing speed |
5-30m/min |
|
Sealing depth |
2-15mm |
|
Air supply |
0.5-0.8Mpa |
|
Working height |
520-580mm |
|
Dimension |
||
