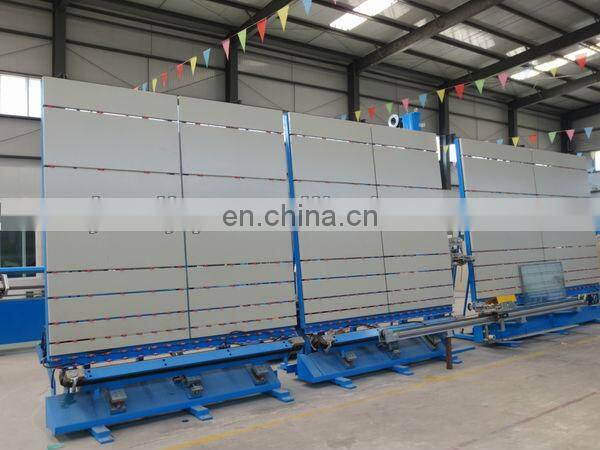

Hot Sales Automatic Silicone Coating Insulating Glass Machine

Hot Sales Automatic Silicone Coating Insulating Glass Machine photo-1
Hot Sales Automatic Silicone Coating Insulating Glass Machine photo-2
Hot Sales Automatic Silicone Coating Insulating Glass Machine photo-3
Hot Sales Automatic Silicone Coating Insulating Glass Machine photo-4
Hot Sales Automatic Silicone Coating Insulating Glass Machine photo-5
Hot Sales Automatic Silicone Coating Insulating Glass Machine photo-6

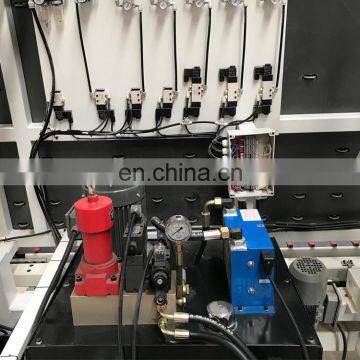

Hot Sales Automatic Silicone Coating Insulating Glass Machine photo-7
US$ 61,672 - 75,376 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
weili
Place of Origin:
Shandong, China
Certification:
CE&BV&SGS
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name weili
Place of Origin Shandong, China
Warranty 1 Year
Weight 3500KG
Dimension(L*W*H) 8750*3000*3400mm
Production Capacity 15sets/month
Condition New
Voltage 380V
Power(W) 13KW
Machine Type Insulating Glass Production Line

WL2500-31 Automatic silicone coating machine



Main feature and function:



1 this sealing line is divided into 3 parts



2 can keep insulating glass automatic continuously sealing, sealing with high efficiency

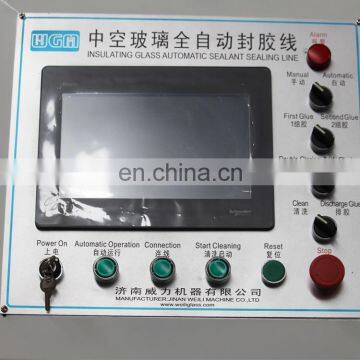

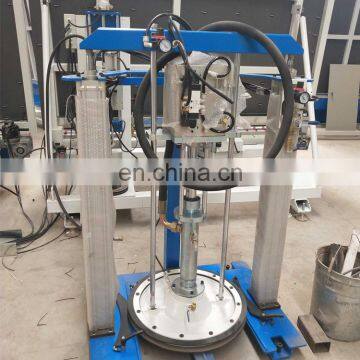

3single sealant supply system, which can be changed easily into double sealant supply system through the touch screen

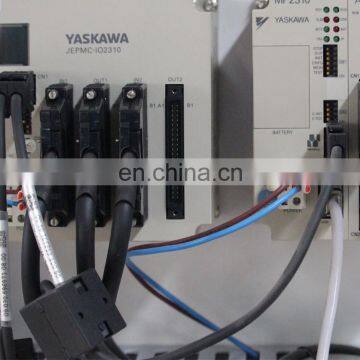

4 adopted world-renowned brand of servo control system, motion controller and controller card, performance is stable, besides we adopt 9 axis servo motorand make our glue with high precise.



5sucker can suck the middle of the glass make the glass transmission more stable



6ecise adjustment for the mixing ratio of the sealant.



7 can measure the depth of extruding sealant





Technical parameter







Product model

WL2500-31

WL2500-32

Min.glass size

300*450mm

300*450mm

Max.glass size

2500*3500mm

2500*3500mm

Glass thickness

3-12mm

3-12mm

Sealant-mixing system

Single Sealant-mixing system

Two Sealant-mixing system

Insulating glass thickness

12-56mm

12-56mm

Sealing speed

5-30m/min

5-30m/min

Sealing width

6-24mm

6-24mm

Sealing depth

2-15mm

2-15mm

Conveyor speed

0-48m/min

0-48m/min

Power supply

13KW

13KW

Air supply

0.5-0.8Mpa

0.5-0.8Mpa

Working height

520-580mm

520-580mm

Dimension

8750*3000*3400mm

8750*3000*3400mm

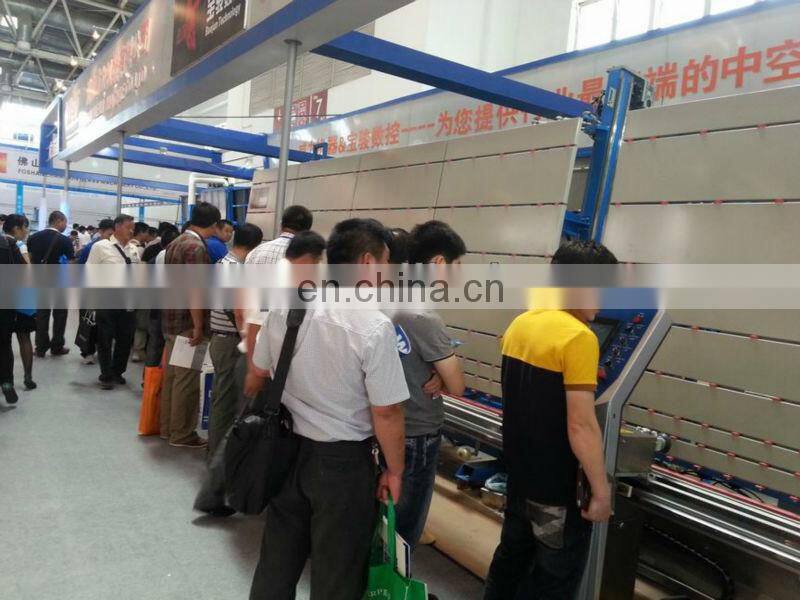

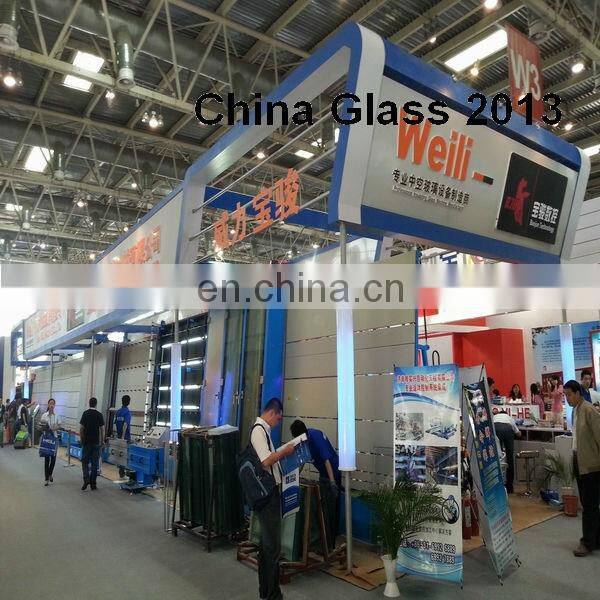

Glass Exhibition 2013



 Hot sales  automatic silicone coating insulating glass  machineHot sales  automatic silicone coating insulating glass  machineHot sales  automatic silicone coating insulating glass  machine

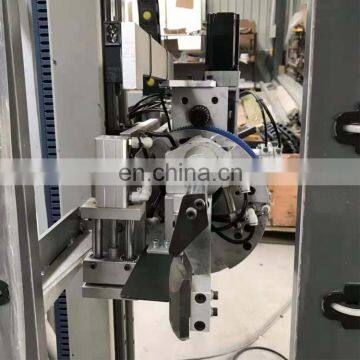

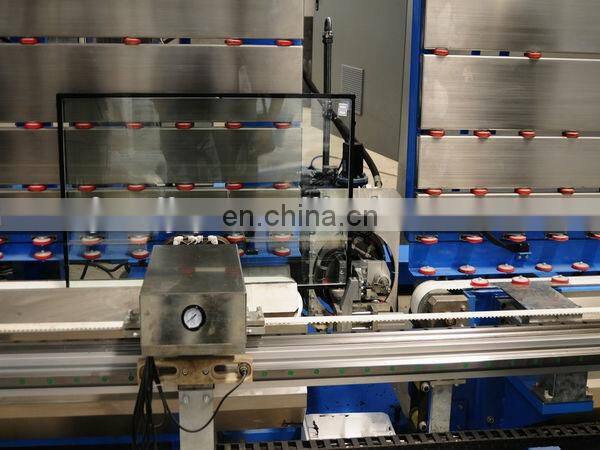

                                                                               Machine details



Hot sales  automatic silicone coating insulating glass  machine

Hot sales  automatic silicone coating insulating glass  machineHot sales  automatic silicone coating insulating glass  machine

Hot sales  automatic silicone coating insulating glass  machine
