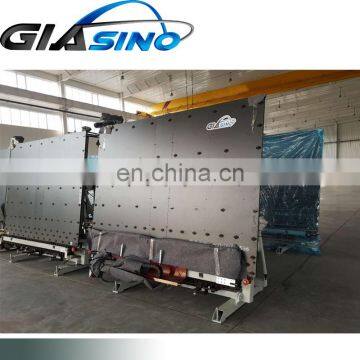

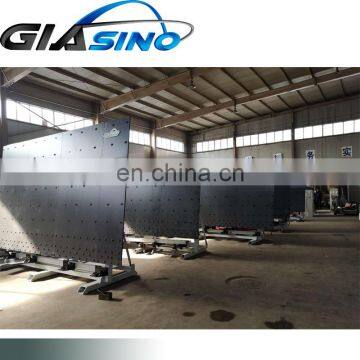

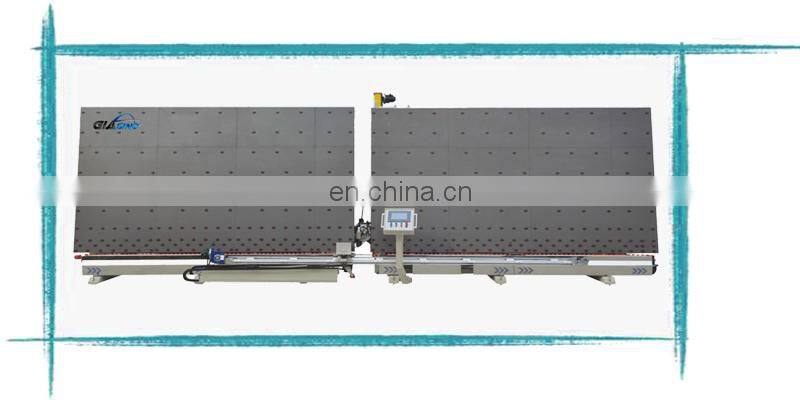

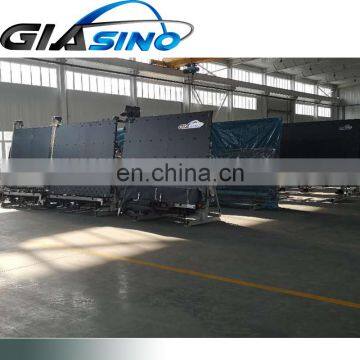

Insulated Low E Glass Coating Sealing Robot
US$ 40,000 - 55,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Glasino
Place of Origin:
Shandong, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulated Glazing Machine Insulated Double Glazing Glass MachineUS$ 7,000 - 8,000MOQ: 1 Set -
Automatic Vertical Coating Detaching Machine For Double GlassUS$ 20,000 - 20,000MOQ: 1 Set
-
Automatic Vertical Coating Detaching Machine for Insulating GlassUS$ 20,000 - 20,000MOQ: 1 Set
-
Automatic Insulating Glass MachineUS$ 20,000 - 20,000MOQ: 1 Set
-
Automatic Vertical Glass Film Removing MachineUS$ 20,000 - 30,000MOQ: 1 Set
Brand Name
Glasino
Place of Origin
Shandong, China
Certification
CE
Warranty
1 Year
Weight
4600kg

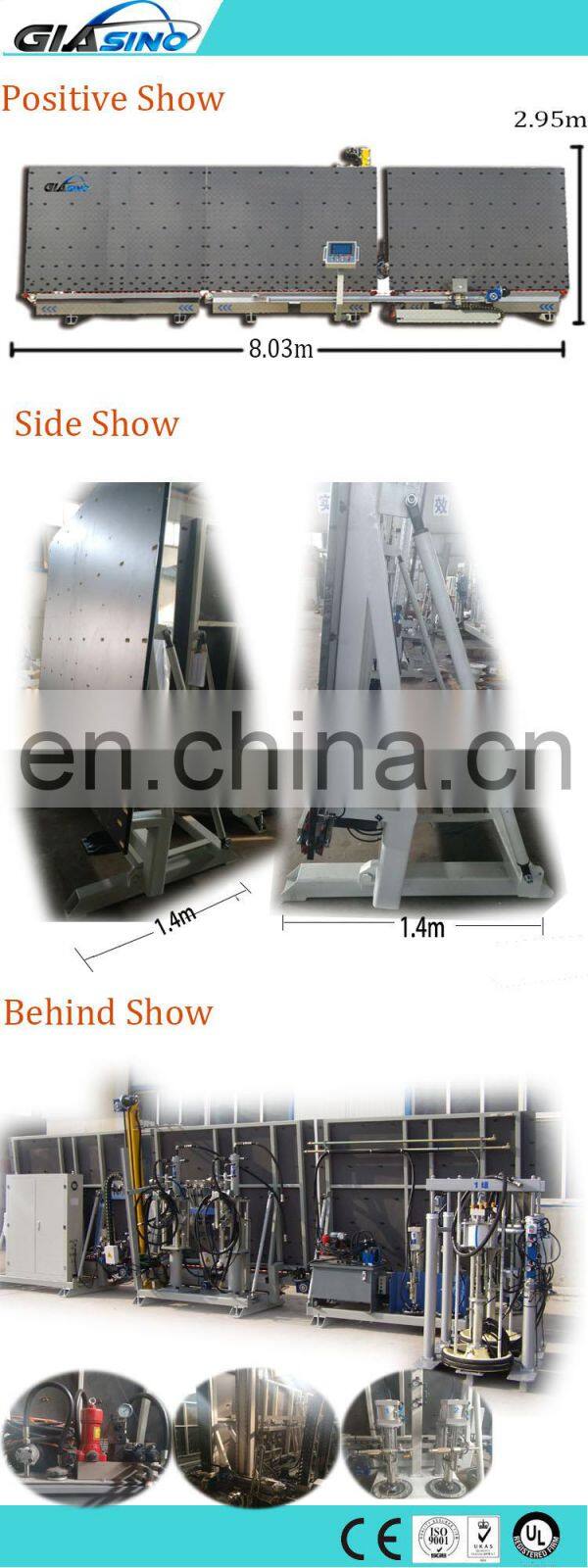

Dimension(L*W*H)
8000*1500*2700mm
Production Capacity
15-18 Loads/h
Condition
New
Voltage
380V
Power(W)
13KW
Machine Type
Insulating Glass Production Line

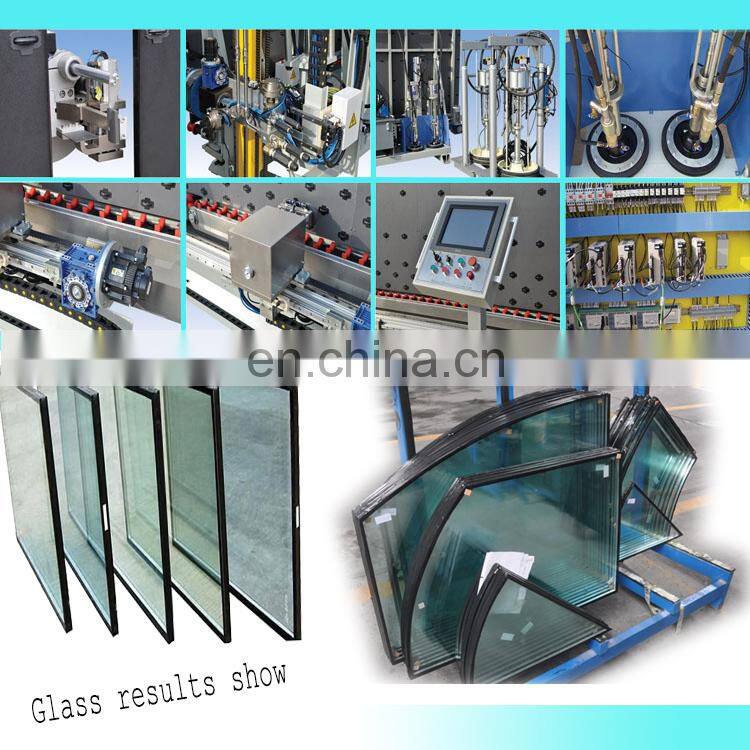

Mechanical characteristic:
1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor
intensity, save manpower,improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no
need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ),
two kinds of sealants switch fast ,in one-button operation easily (Model II)
5. The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7. The smallest insulating glass size can be processed is 300*300mm
8. Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate
positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass
edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the
machine can beused with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly .
intensity, save manpower,improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no
need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ),
two kinds of sealants switch fast ,in one-button operation easily (Model II)
5. The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7. The smallest insulating glass size can be processed is 300*300mm
8. Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate
positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass
edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the
machine can beused with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly .

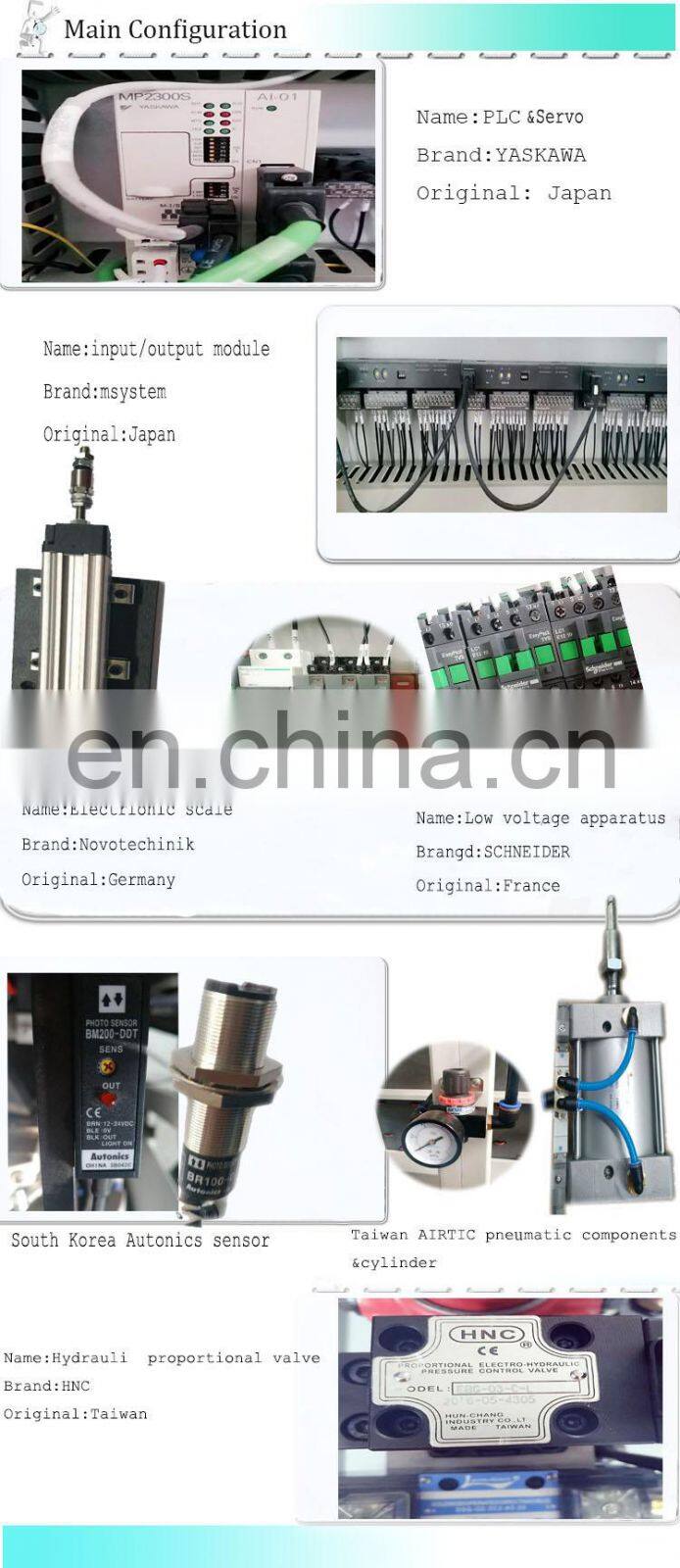

Main confifuaration
| PLC control system | YASKAWA | Japan |
| Reducer | xingxing | China |
| Low voltage electrical | Schendier | France |
| Photoelectric sensor | Autonics | South Korea |
| Cylinder | Airtac | Taiwan |
| Touch Screen | Kinco | China |
| Pneumatic component | SMC | Japan |
| Hydraulic proportional valve | HNC | Taiwa |
More details
Technical parameter:
Model |
Voltage Power |
Air Pressure |
Extruding pressure |
Max.Glass size |
Min.Glass size |
Glass thickness |
Working speed |
Overall dimension |
ZNJ2540 |
380V 13KW |
0.6~0.8Mpa |
32Mpa |
2500*4000mm |
300*300mm |
12~56mm |
5~40m/min |
8630*1400*3500mm |
