Double Glazing Equipment- Butyl Coating Extruder Machine Insulating Glass Machine
US$ 4,800 - 5,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Glasino
Place of Origin:
Shandong, China
Certification:
CE, ce
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Insulating Glass Flat-Pressing MachineUS$ 30,000 - 40,000MOQ: 1 Set -
Glass Handling Machine for Insulating GlassUS$ 4,000 - 5,000MOQ: 1 Set
-
Vertical Automatic Flat Press Insulation Glass Production LineUS$ 30,000 - 40,000MOQ: 1 Set
-
Double Glass Machine,Automatic Flat Press Insulating Glass Production LineUS$ 30,000 - 40,000MOQ: 1 Set
-
High Speed Insulating Glass Machine Sealing RobotUS$ 36,000 - 68,000MOQ: 1 Set
Brand Name
Glasino
Place of Origin
Shandong, China
Warranty
1 Year, 12 Months
Weight
520kg
Dimension(L*W*H)
3000*600*950mm
Production Capacity
20
Condition
New
Voltage
380V
Power(W)
3.8KW
Machine Type
Insulating Glass Production Line
Butyle extruder insulating glass machine
Machine Performance Introducion
1.Automatic control of nozzle width in application of pneumatic and hydraulic parallel method
2.Possilble to control a precise temperature and 1/100 sec inerval of sensor perception
3. Easily and quickly changeable of spacer width on a consecutive operation
4.Available to select a function for curved spacer, to control and operational height and conveyor belt speed

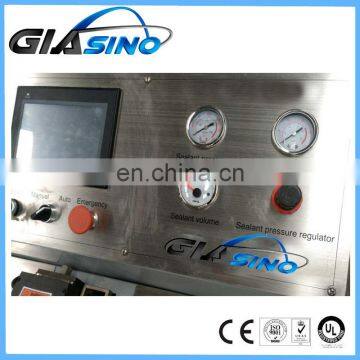

5.Easily controlable of all functions with Touch Screen and PLC program
6. Possible to control the length of Butyl application and monitoring current production quantity on color Touch Screen

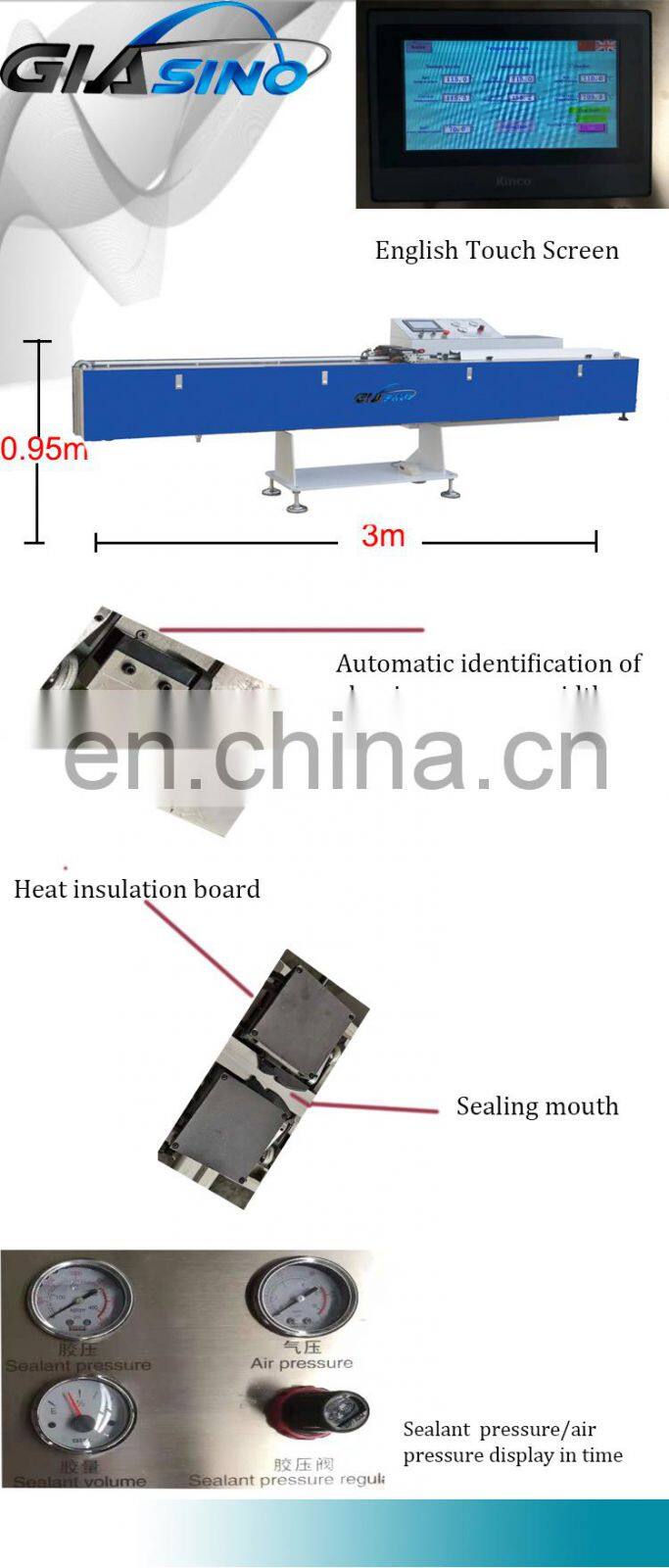

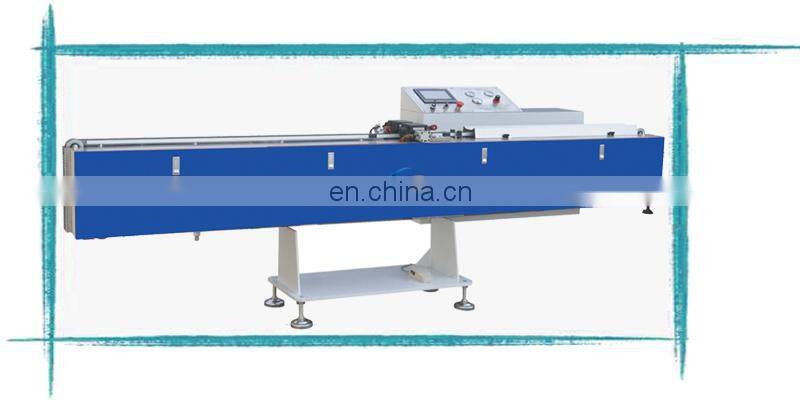

Product display
Main technical parameters
| Input voltage | 380V 50HZ |
| Total Power | 3.75kw |
| Extruding pressure | 8~23Mpa |
| Working speed | 4~40m/min |
| Air pressure | 0.6~0.8Mpa |
| Overall dimension | 3000*600*950mm |
