CNC-3725M CNC Multi-function Glass Cutting Table

CNC-3725M CNC Multi-function Glass Cutting Table thumbnail-1
CNC-3725M CNC Multi-function Glass Cutting Table thumbnail-2
CNC-3725M CNC Multi-function Glass Cutting Table thumbnail-3
CNC-3725M CNC Multi-function Glass Cutting Table thumbnail-4
CNC-3725M CNC Multi-function Glass Cutting Table thumbnail-5
CNC-3725M CNC Multi-function Glass Cutting Table photo-1
CNC-3725M CNC Multi-function Glass Cutting Table photo-2
CNC-3725M CNC Multi-function Glass Cutting Table photo-3
CNC-3725M CNC Multi-function Glass Cutting Table photo-4
CNC-3725M CNC Multi-function Glass Cutting Table photo-5
US$ 10,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Glasino
Place of Origin:
Shandong, China
Certification:
CE
Contact Supplier Request Quote Chat Now
Hebei Glass Tempering Furnace Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Glasino
Place of Origin Shandong, China
Certification CE
Warranty 1 Year
Weight 3500kg
Dimension(L*W*H) 5200*3500*1200mm
Production Capacity 100%
Condition New
Voltage 380V 50HZ
Power(W) 8kw
Machine Type Glass Cutting Machine
Product Description

Product Application

- Loading and cutting on the same table (Breaking function option)

- Mn bridge steel (Q345A ), perfect surface treatment

- Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched

- Cutting pressure automatic adjusted according to glass thickness

- Cutter head 360 degree rotating

- Water proof surface panel, stainless steel side covered, water and deformation resisting

- High quality felt, perfect level, anti-static

- Self-lubricating guide rail

- Air filter for keeping the oil clean

- Linear guide rail

- Automatic oiling for transmission system

- Any shape cut, high cutting speed

SPECIFICATIONS FOR CNC-3725M MULTI-FUNCTION GLASS CUTTING MACHINE

Main parameters
Max.glass sheet size
mm
3660*2440
Glass Thickness
mm
3~25
Max. Cutting speed
m/min
0~ 260

Main parameters
Dimensions (L*W*H)
mm
5300*3600*900
Power
Kw
10
Weight
Kg
4000

Main parameters
CNC Cutting system
Galil (USA)
Optimization software
Optima (Italy)
Air pressure
MPa
0.6~0.8


Certifications
Detailed Images

Machine Parts

Name: Servo motor

Brand: YASKAWA

Original: JAPAN

High speed and high stability.

Main Features

Name: Rack and rail
Brand: KHK
Original: JAPAN
High precision and high wear resistance.

2.5 modulus.

Machine Parts

Name:Low voltage electric parts
Brand: Schneider
Original: France

Main Features

Name: Cutting Software
Brand: Galil
Original: USA

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

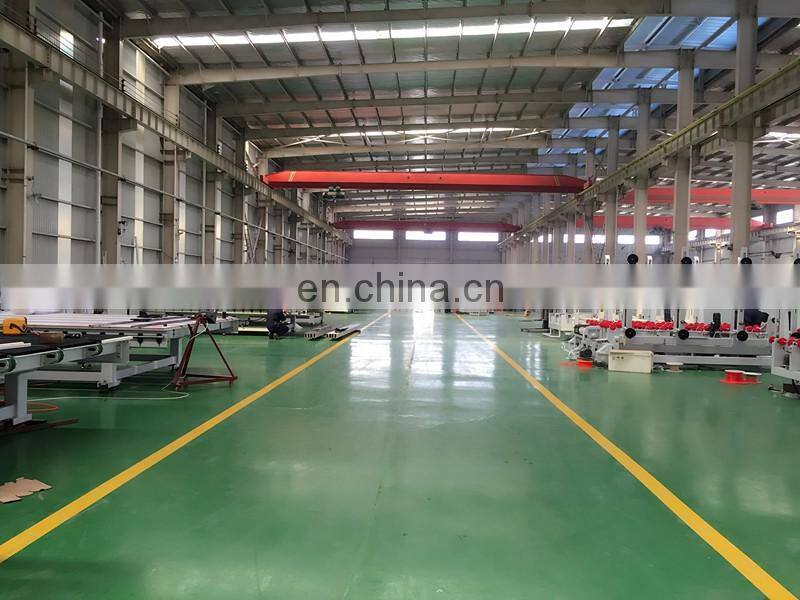

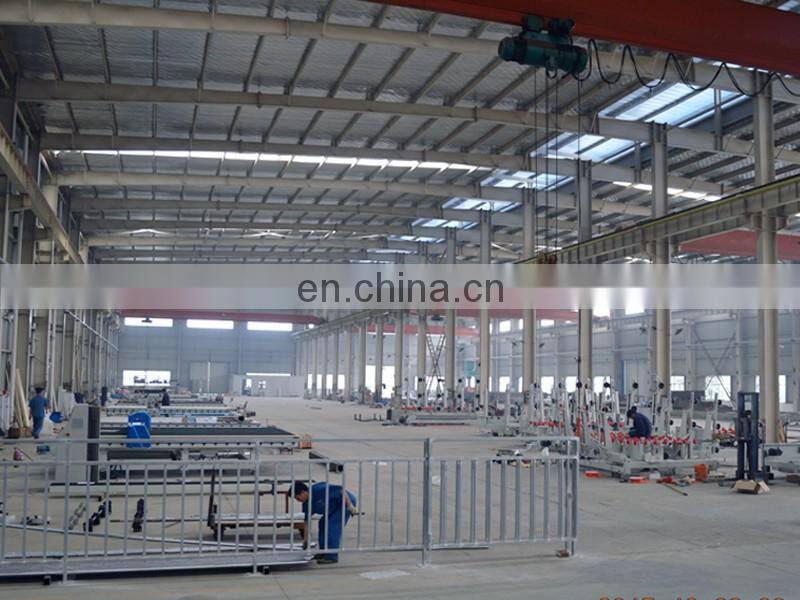

* View our Factory.

After-Sales Service

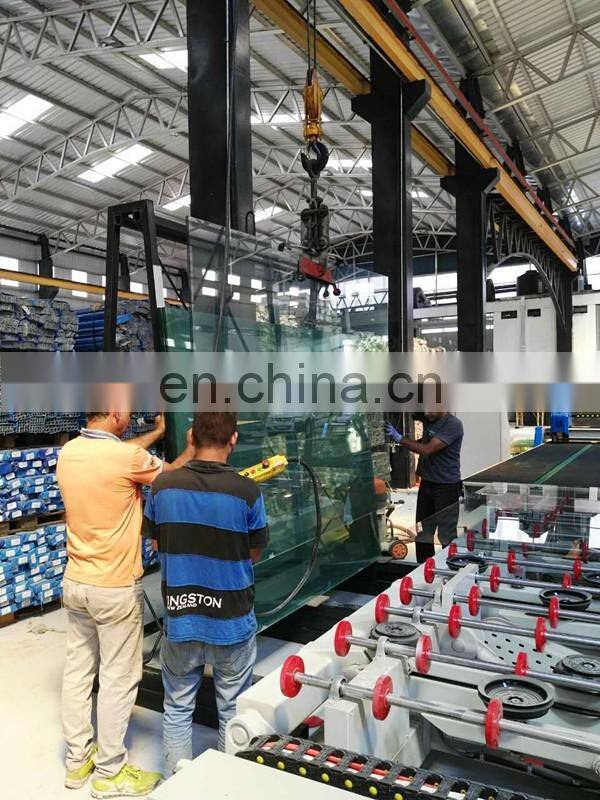

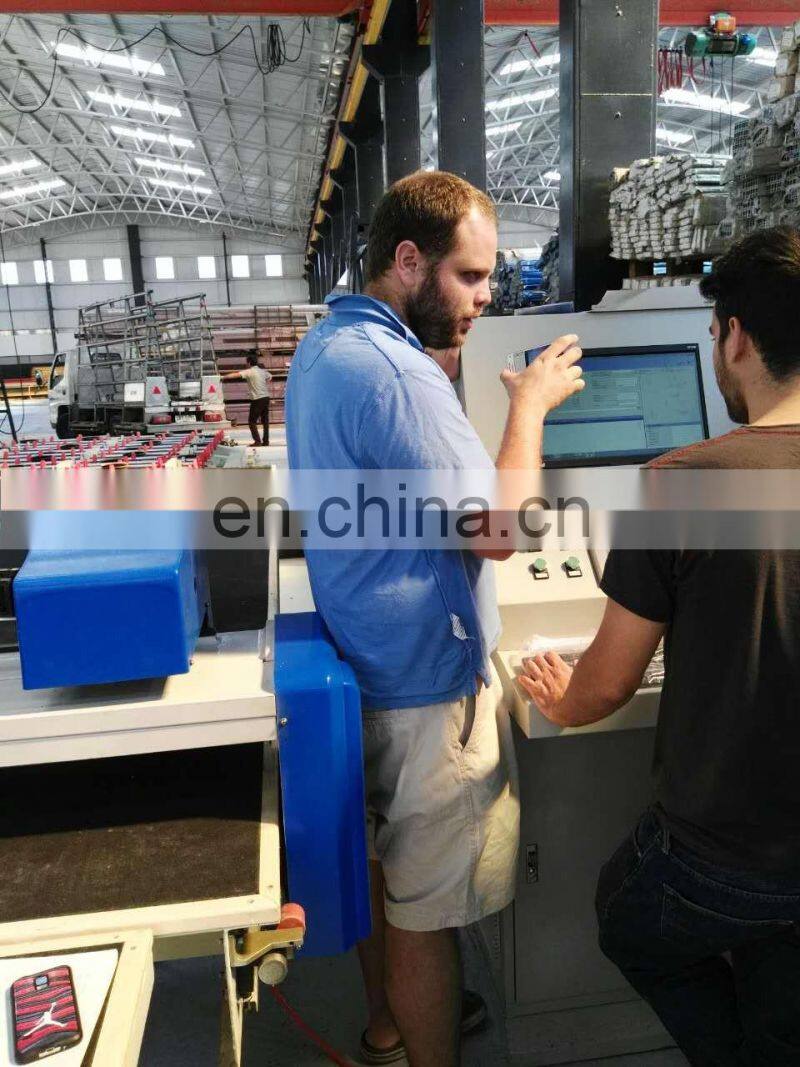

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

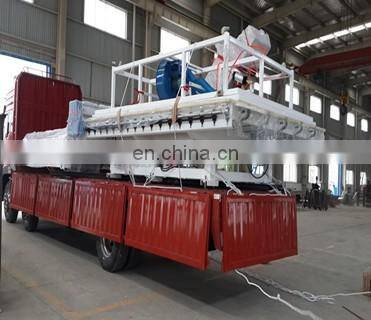

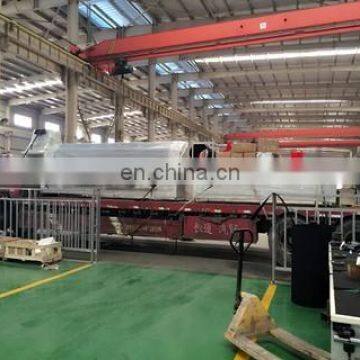

Packing & Delivery
Packaging
Size
5300*3600*900mm
Weight
4 T

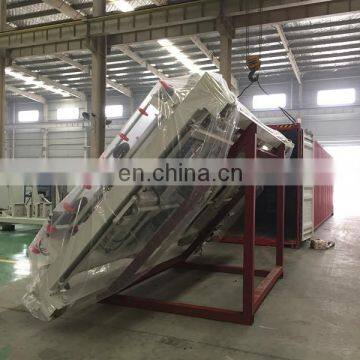

Packaging Details
Separate two parts into container.
Related Products

Automatic Laminated Glass Cutting Machine

Automatic Glass Cutting Line

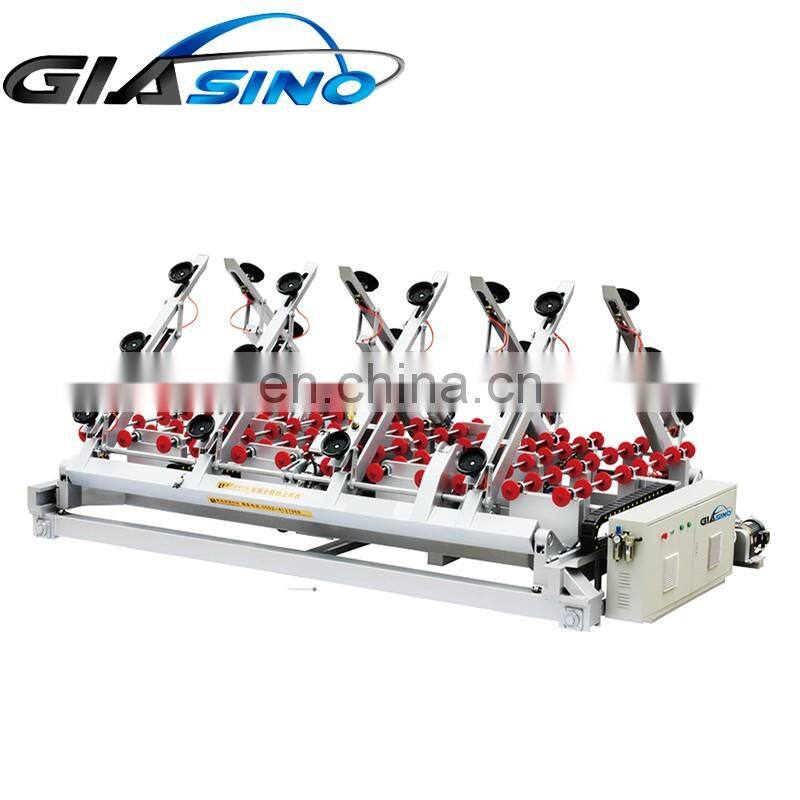

Automatic Glass Loading Machine
