Specification:
Spec. |
14 cores/Customized
|
Application
|
ROV/underwater
|
| Cable diameter.
|
10mm+-1mm
|
Certification
|
CE, ISO9001
|
| Conductor material
|
Bare copper
|
Depth
|
300 meters
|
| Color
|
Yellow/blue/green/white/black and TBD
|
Shield
|
No
|
| Insulation
|
PE
|
Inner sheath
|
No
|
| Tensile structure
|
High tensile strength of Kevlar fiber
|
Wrapping material
|
Quality non-woven
|
| Outer sheath |
Foam PUR(Buoyancy special material for preventing sea water) |
Temperature range
|
Fixed laying: -40℃~+90℃. Move installment: -30℃~+80℃
|
Remark:
1.Specifications are not limited to the samples listed, For more specifications please contact our company.
2.Other cross-sectional area and Number of cores can according to requirements provide.
3.High, medium and low voltage level specifications can according to requirements provide.
4.For more application,the cable need to be specially manufactured, please contact our company.
Description:

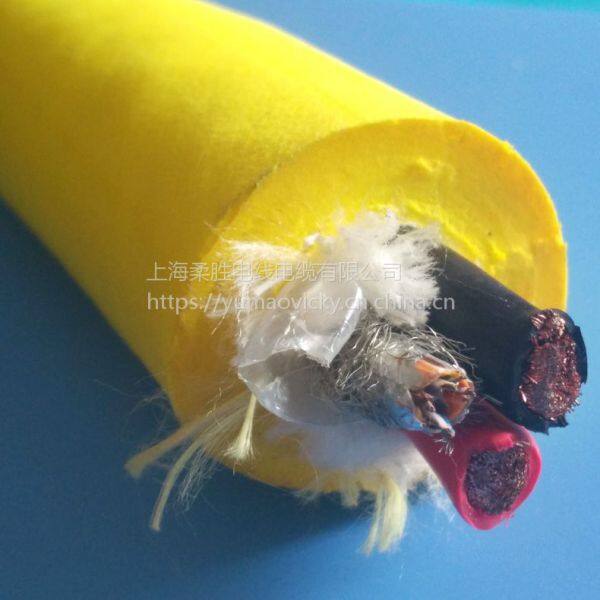

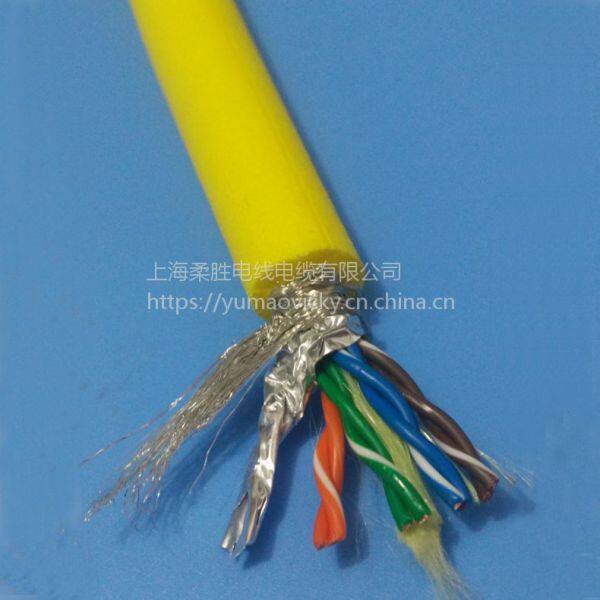

ROV Tether/ROV Umbilical/ Underwater Floating Cable
ROV Tethers include power conductors, shielded data
pairs and video using coax, TSP, or fi ber optics. Designs available
in several confi gurations, including Neutral Buoyancy.
A varied degree of strength designs available depending on
workloads and handling system. The sample cables listed below
are proven working designs for vehicles used worldwide.
Applications:
Features:
Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It has good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems
