Product Description

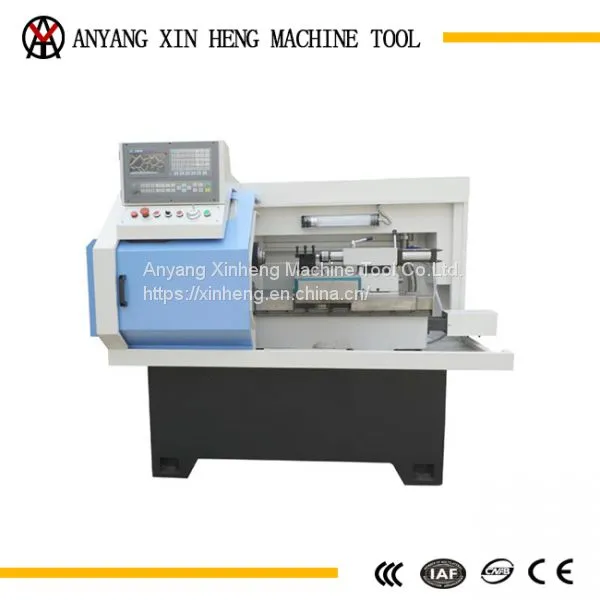

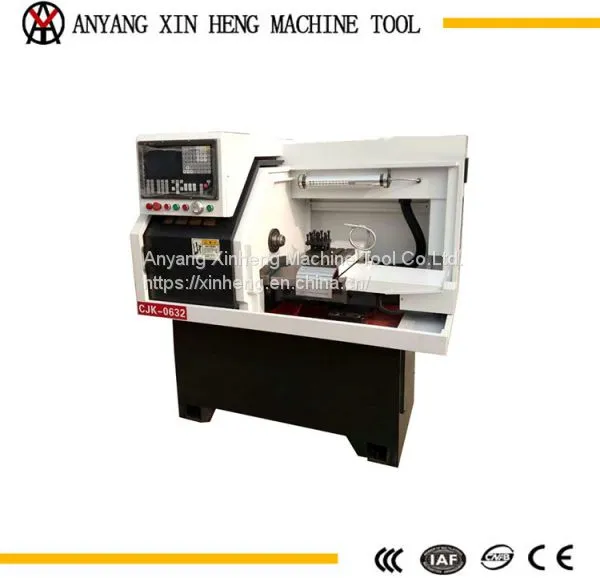

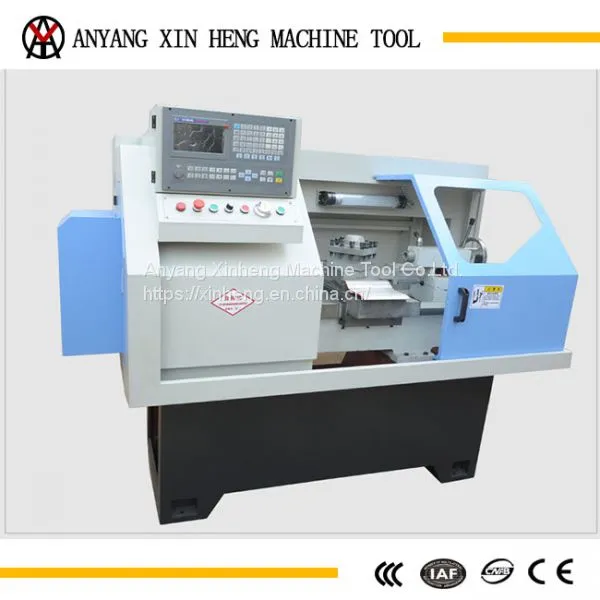

The Horizontal bench lathe machine SK0632 can achieve automatic control, automatically process a variety of parts of the inner and outer ring, end face, slot, any conical surface, spherical and other public Inch cylinders, taper threads, etc. The biggest feature of the small lathe is the main use of spring chuck clip workpiece. This method is particularly suitable for small pieces of the workpiece clamping, and the operation branch is simple, a skilled worker can operate 2-3 machines at the same time.
Standard Configuration :
Processing accuracy (0.01mm)
Repeat positioning (0.01mm)
CNC system:GSK928, servo motor and drive
3-jaw chuck
Four station electric tool post
Manual tailstock
LED light
Spindle center, live center
Cooling system
Lighten system
Automatic lubrication system
Optional configure:
Control system: Siemens, Funuc, GSK 980TB/TC.
Linear guide way (high precision, high speed)
Hydraulic chuck 4" / 6"
Six-station turret or eight-station turret
Auto bar feeder.
Product parameters
ITEM |
Unit |
SK-0632-S |
swing over bed |
mm |
240 |
max turning length |
mm |
200 |
max length of workpiece |
mm |
160 |
Max travel |
mm |
X: 220 |
Z: 220 | ||
rapid of X/Z |
mm |
X: 8000 |
Z: 8000 | ||
indexing repeatability |
mm/min |
X: 0.007 |
Z: 0.01 | ||
spindle bore |
mm |
30 |
shaft end form |
7"7"30" short cone |
|
hole taper |
21 |
|
Turret |
V 4 |
|
spindle speed |
r/min |
2800 |
main motor power |
kw |
3 |
capacitance |
KVA |
4 |
weight |
kg |
700 |
dimensions |
mm |
1450*1000*1550 |
About us
Anyang Xinheng Machine Tool Co. Ltd. are located in Anyang City, Henan Province. We have always been devoted to the research and manufacture of machine tools. We have LATHE, CNC LATHE, PIPE THREAD LATHE, SPHERE TURNING LATHE etc. There are many professional salespersons who can help you solve problems on purchase and technology related to the machine tools. Our products are sold both at home and abroad, and they are very popular around the world. Welcome to visit our company!
