Attractive price bearing ring lathes
- 100 Piece / Pieces per Month
- Shanghai ect.
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 60 days
Product Details
Brand Name: | XINHENG | Place of Origin: | China | Model Number: | AD25X |
Type: | Horizontal | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New | Automatic Grade: | Automatic | CNC or Not: | CNC |
Product Description
Product Description:
Automatic bearing outer ring inner race production line:

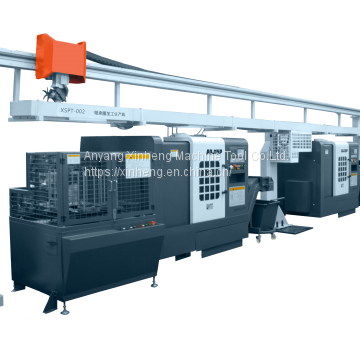

XSPT-002 bearing ring automatic line with three ADJ15P CNC lathes and a set of SMT20 Manipulator automatic loading and unloading device.
The automatic line to grab the workpiece weight ≤ 7Kg.
Outer diameter: 100mm-200mm
The width of disk type parts: 14mm-70mm.
Designed according to user-specific requirements.
Technology:
Workpiece | Bearing out ring(No. CG-GAC110S/K.01-LG1) |
Annual yield estimation | 12 months×26 days×20 hours×3600 seconds×0.85 Utilization rate/85 seconds(Automatic line cycle time)= 224640 pieces. |
Specification:
ITEM | UNIT | AD15 | AD25X | |
CAPACITY | Swing over bed | mm | 440 | 520 |
Max turning diameter | mm | 300 | 420 | |
Maximum cutting diameter of gap | mm | 255 | 360 | |
Max turning length | mm | 450 | 530 | |
TRAVEL | X-travel | mm | 180 | 230 |
Z-travel | mm | 480 | 590 | |
spindle speed | rpm | 50-4500 | 35-3500 | |
SPINDLE | spindle nose | A2-6 | A2-8 | |
chuck size | Inch | 8″ | 10″ | |
spindle hole | mm | 62 | 87 | |
turret working position | 8 | 12 | ||
TURRET | indexing time | s | 0.58 | 1 |
section of tool shank | mm | 25×25 | 25×25 | |
Diameter of bore shank | mm | 40 | 40 |

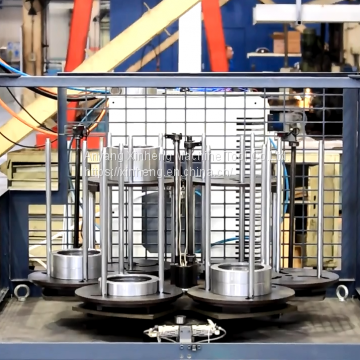

Six-station Rotary tray silos:
The feeding and unloading of the automatic line is completed by the 6 Station pallet type rotary silos, and the silo is controlled by the sensor induction signal to control the lifting of the feeding position and the stroke of each action.
