Retractable Cable Spiral Spring/retractable Coil Cable Low Voltage Flexible Retractable Spiral Spring Coiled Cable
US$ 1.7 - 2
MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
derul
Place of Origin:
Shanghai, China
Model Number:
DERUL00004
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pvc/pu Spiral Cable Spiral Cord Coiled Cable/retractable Cable Low Voltage Flexible Retractable Spiral Spring Coiled CableUS$ 1.7 - 2MOQ: 1 -
Pur Spiral Cable/pvc Retractable Coiled Cable Low Voltage Flexible Retractable Spiral Spring Coiled CableUS$ 1.7 - 2MOQ: 1
-
pu Spiral Cable/pur Coiled Spring Cable Low Voltage Flexible Retractable Spiral Spring Coiled CableUS$ 1.7 - 2MOQ: 1
-
Power Spiral Cable/protection Spiral Cable Low Voltage Flexible Retractable Spiral Spring Coiled CableUS$ 1.7 - 2MOQ: 1
-
Multicore Coiled Cable/power Cord Spiral Cable Low Voltage Flexible Retractable Spiral Spring Coiled CableUS$ 1.7 - 2MOQ: 1
Brand Name
derul
Place of Origin
Shanghai, China
Model Number
DERUL00004
Type
Low Voltage
Insulation Material
PVC
Jacket
PE
Conductor Material
Copper
Product Description
retractable cable spiral spring/retractable coil cable Low Voltage Flexible Retractable Spiral Spring Coiled Cable
Application
Spiral cables are mainly used for the most rigorous situations such as intensive use robots, electric doors, heavy duty machine, lifting ramps and drilling machines. They are suitable for both indoor and outdoor use and will provide long service life in very high duty applications. PUR outer sheath has resistance to abrasion, mineral oil, cooling liquid and gas. Additionally, PUR can be used all day long and anti microorganism and hydrolysis.
Construction
Conductor: Fine stranded bare/tinned copper
Insulation: PE (polyethylene)
Core color: TBD acc. to DIN 47100 standard. Wire gauge>0.5mm2, black insulation and white serial number with GR-YE protective conductor.
Outer sheath: PUR (polyurethane)
Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
Technical data
Rated voltage: 300V ( <0.34mm2), 300/500V (≥0.5mm2)
Testing volatge: 1200V ( <0.34mm2), 3000V (≥0.5mm2)
Temperature range: -5℃ till +70℃
Operating temperature: -5℃ till +70℃
Bending radius: Fixed installation 5xOD, In motion 7xOD
Additional information
Closed spiral length: max 4000mm
Extended spiral length: up to 4x closed length
Cable tails: normally ends 200mm / 200mm. Straight ends available up to 25m
Spiral OD: varies from 40mm to 150mm
Spiral ID: varies from 20mm to 130mm
Above information is norminal and it can be adjusted as per your requirements.
Spiral cables are mainly used for the most rigorous situations such as intensive use robots, electric doors, heavy duty machine, lifting ramps and drilling machines. They are suitable for both indoor and outdoor use and will provide long service life in very high duty applications. PUR outer sheath has resistance to abrasion, mineral oil, cooling liquid and gas. Additionally, PUR can be used all day long and anti microorganism and hydrolysis.
Construction
Conductor: Fine stranded bare/tinned copper
Insulation: PE (polyethylene)
Core color: TBD acc. to DIN 47100 standard. Wire gauge>0.5mm2, black insulation and white serial number with GR-YE protective conductor.
Outer sheath: PUR (polyurethane)
Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
Technical data
Rated voltage: 300V ( <0.34mm2), 300/500V (≥0.5mm2)
Testing volatge: 1200V ( <0.34mm2), 3000V (≥0.5mm2)
Temperature range: -5℃ till +70℃
Operating temperature: -5℃ till +70℃
Bending radius: Fixed installation 5xOD, In motion 7xOD
Additional information
Closed spiral length: max 4000mm
Extended spiral length: up to 4x closed length
Cable tails: normally ends 200mm / 200mm. Straight ends available up to 25m
Spiral OD: varies from 40mm to 150mm
Spiral ID: varies from 20mm to 130mm
Above information is norminal and it can be adjusted as per your requirements.

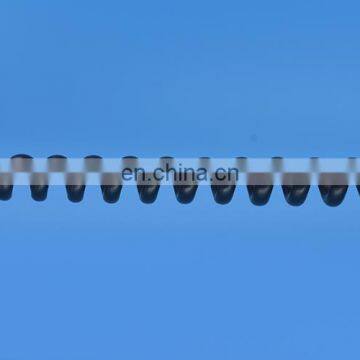

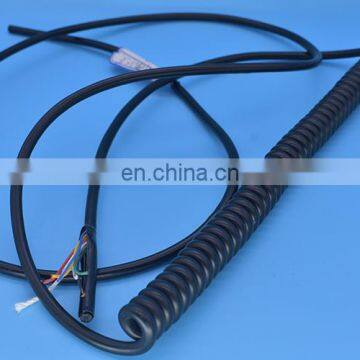

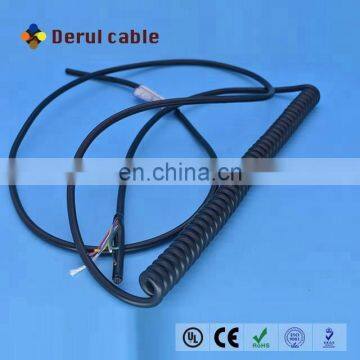

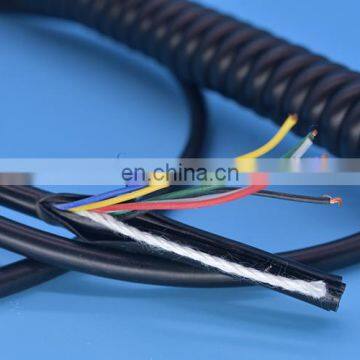

Detailed Images
