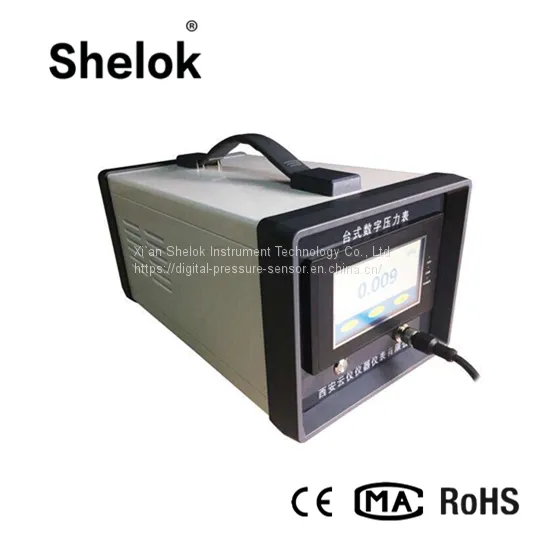

LCD display digital pressure gauge manometer have full electronic structure and use battery-powered, so they are very easy for on-site installation. Specifically, front-end high-precision piezoresistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drift amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after computing and processing the actual pressure value is showed on the LCD display.
Features of LCD display digital pressure gauge manometer:·Large-screen LCD display, high resolution, ignoring the error.
·Peak Hold function, record the maximum pressure values during the measurement
·Pressure on the percentage of dynamic display, (the progress bar display)
·Choice of five engineering units: psi, bar, kpa, kg / square centimetre Mpa
·Choose 0 ~ 15min auto-off feature.
·Micro-power consumption, work more than 2 years in power-saving mode, 2,000 hours continuous work.
·Parameter correction, correct zero and error in field application.
·Limit the upper and lower range
·Sampling rate: 4 times / sec
·Applicable to a variety of gases and liquids compatible with stainless steel pressure measurement.
Accuracy:0.02,0.05
Pressure Type:gauge pressure,absolute pressure
Thread size:M20*1.5,G1/2,G1/4,NPT1/2,NPT1/4,M14*1.5
