Home > Instruments & Meters > Optical Lens & Instrument > Spectrometer > 3nh Product Surface Paint and Coating Color Measuring Device Spectrophotometer YS3010 Spectrocolorimeter
3nh Product Surface Paint and Coating Color Measuring Device Spectrophotometer YS3010 Spectrocolorimeter
US$ 1640 - 1820
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
3nh/OEM
Place of Origin:
China
Model Number:
YS3010
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Hong Kong
Delivery Detail:
10 days
Related Products
-
YS6060 Benchtop Spectrophotometer for Yarn Dyeing Factory Similar to Datacolor SPECTRO-650US$ 5787 - 6045MOQ: 1 Set -
Benchtop Spectrophotometer Color Testing Equipment YS6010 With Color Matching Software to Replace Minolta CM3700AUS$ 4224 - 4415MOQ: 1 Set
-
SELON UV-6000PC DIGITAL SPECTROPHOTOMETERUS$ 3,099 - 3,616MOQ: 1 Set
-
LT-V721 Visible Digital SpectrophotometerNegotiableMOQ: 1 Set
-
UV1700 LCD Display UV/Visible Digital SpectrophotometerUS$ 1,000 - 2,000MOQ: 1 Piece
Brand Name
3nh/OEM
Place of Origin
China
Model Number
YS3010
Size
184*77*105mm
Weight
0.6kg
Measurement Range
0-200%
Wavelength Range
400nm-700nm
| Easy operation Smart spectrophotometer Incompable Accurancy Color Test Machine | ||||
| Company info. : | ||||
|
|
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.

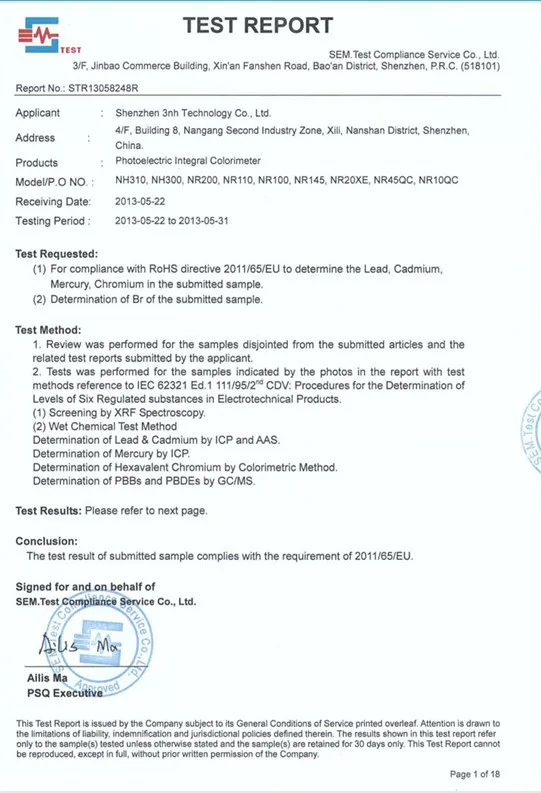

Our Certificates:
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers. |
|||
| Brief Introduction : | ||||
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.. | ||||
| Application : | ||||
|
Application Industry
| ||||
| Features : | ||||
|
| ||||
| Specification : | ||||
| ModelYS3060Illumination/observation systemReflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)Integrating sphere SizeΦ58mmLight SourceCombined LED Light, UV LightSensor256 Image Element Double Array CMOS Image SensorWavelength range400~700nmWavelength pitch10nmReflectance range0~200%Measuring ApertureDual Aperture: 10mm/8mm & 5mm/4mmColor SpaceCIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LABColor difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)Other Chromaticity DataWI(ASTM E313, CIE/ISO, AATCC, Hunter),YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° GlossinessObserver2°/10°IlluminantD65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12Display DataSpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color OffsetMeasurement Time1.5sRepeatabilitySpectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)Inter Instrument AgreementWithin DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)DimensionL*W*H=184*77*105mmWeight600gBatteryLi-ion battery. 5000 times within 8 hours.Lamp Life5 years, more than 1.6 million measurementsDisplay ScreenTFT 3.5inch, Capacitive Touch ScreenInterfaceUSB/RS-232Data MemoryStandard 2000 Pcs, Sample 20000 PcsOperating Temperature0~40℃(32~104°F)Storage temperature -20~50℃(-4~122°F)Standard AccessoryPower Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust CoverOptional AccessoryMicro Printer, Powder Test BoxNotesThe specifications are subject to change without notice. | ||||

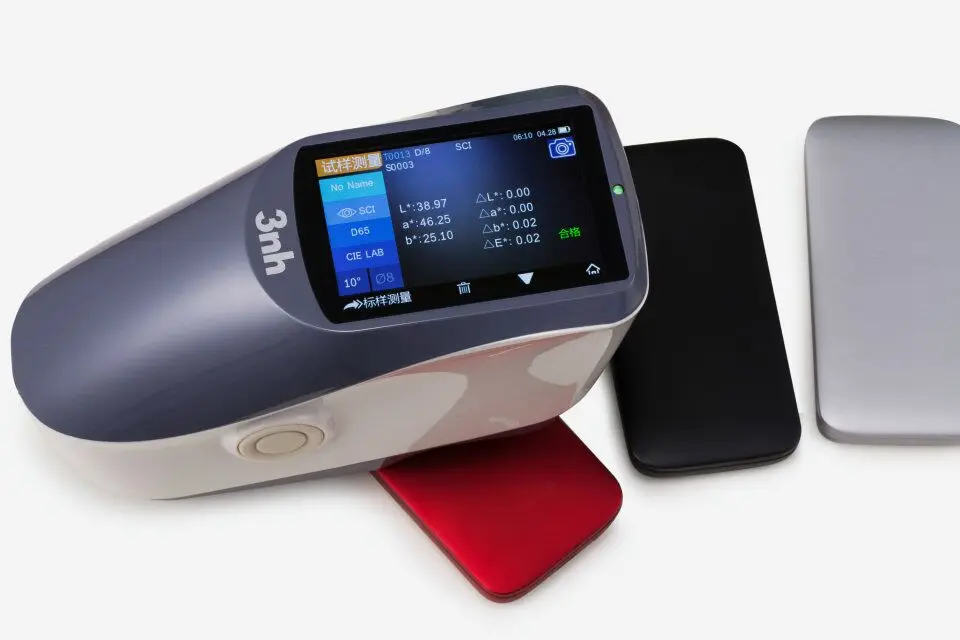

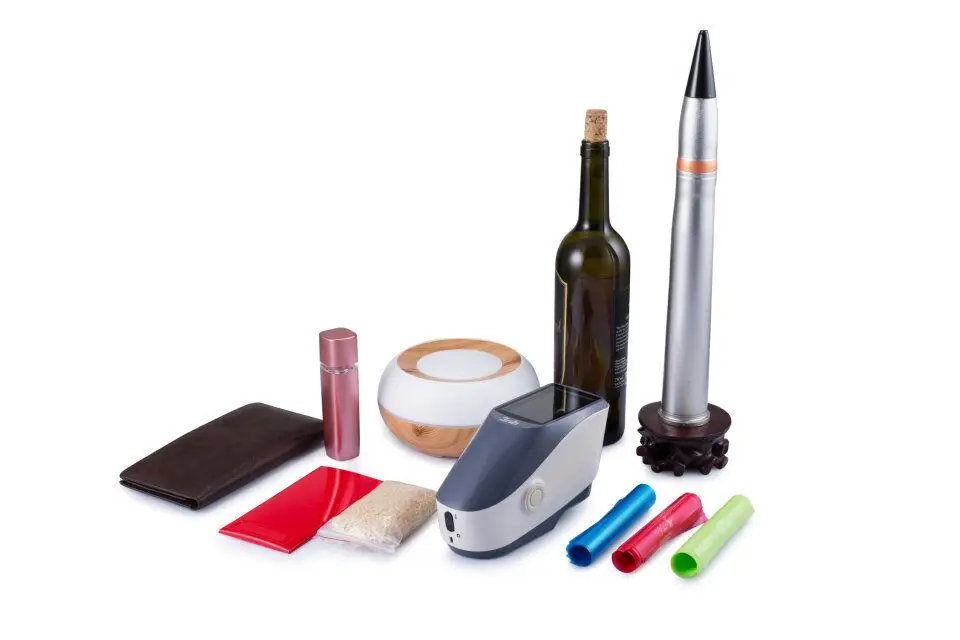

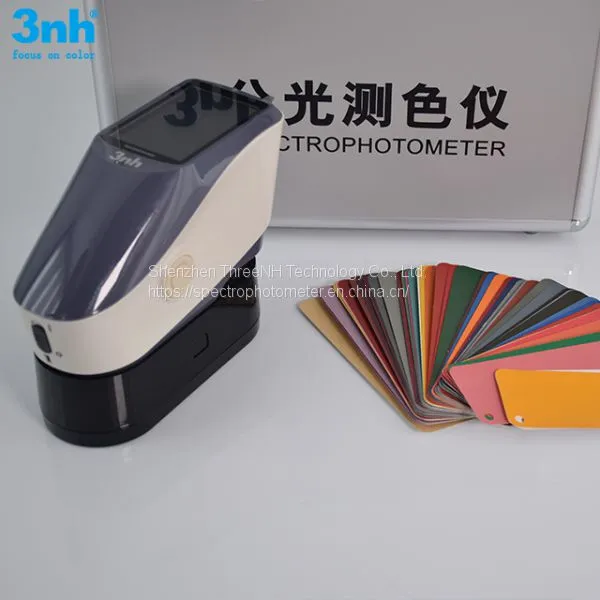

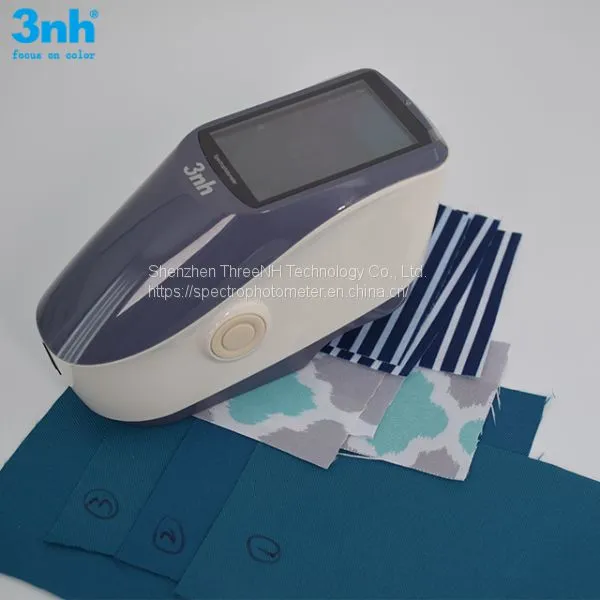

| Product Image : | ||||
|
| ||||
|
| ||||
|
|
||||
|
|
|
|
|
|
| Customer confirmation : | ||||
|
| ||||
| Contact Info. : | ||||
| ||||
| Waiting for your inquiry, any more questions I will reply you within 24 hours | ||||
