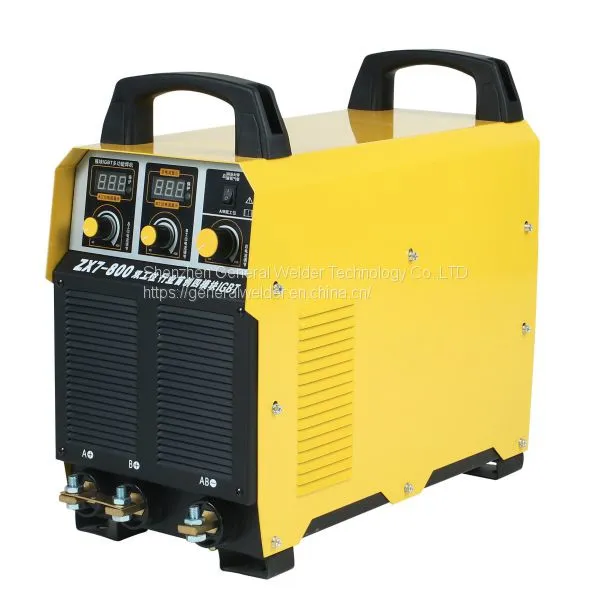

DC INVERTER ARC WELDER-IGBT MODULE-DUAL WELDER-HEAVY INDUSTRY USE
¢4.0mm Electrode No Stop Welding Carbon Arc Welding And Steel Butt Joint
Performance characteristics:
Double station parallel connection can output nominal welding current,it is especially suitable for electroslag welding and carbon arc gouging.
*Each station operates independently, and even if one of the workstations fails, the other station can work stably.
*The unique heat dissipation design extends the effective working time of the welding machine and keeps the main power devices dustproof and dew proof. The key parts of PCB and so on are dust-proof and anticorrosive treatment to improve the reliability of the whole machine.
*Digital display of current and voltage can accurately preset the welding current.
*Multiple protection functions such as output short circuit protection, overheating protection, inverter overcurrent and over voltage protection.
*The structure design of the machine is reasonable, and it has better function of rain and dust prevention, and can meet the construction requirements of harsh environment.
*The voltage and power grid fluctuates within 20%, and the welding machine can still stabilize welding, and the adaptability of high temperature environment is very outstanding.
*Adopting special control mode, the output current is constant, and the anti-interference ability is strong.
*The arc striking is very easy, the arc is stable and the splash is few, and the weld shape is beautiful.
*Under the same current and load persistence conditions, this welder is the smallest volume, the best material, is the industry model.
Technical Parameters:
| Type | ARC-800I | |
| control mode | IGBT inverter | |
| Rated input voltage, phase number | AC380V 3P | |
| Input power frequency(HZ) | 50/60 | |
| Rated input capacity(KVA) | 50 | |
| Rated input current(A) | 77 | |
| Cable cross-sectional area | mains input(mm2) | 10 |
| power output(mm2) | 95 | |
| ground wire(mm2) | 4 | |
| Rated output voltage(V) | 44 | |
| Rated load duration(%) | 100 | |
| Rated output no-load voltage(V) | 75 | |
| Adjustment range of welding current(A) | 40-800 | |
| Power factor | 0.93 | |
| Enclosure rating | IP21S | |
| Insulation rating | F | |
| Cooling method | Forced air cooling | |
| Dimensions(mm) | 490*235*500 | |
| Host weight(KG) | 27 | |
