Home > Products > Arc Welder > DC Inverter IGBT Mosfet/Portable/MMA Arc Welding Machine Welder-Arc120g/150g/180g

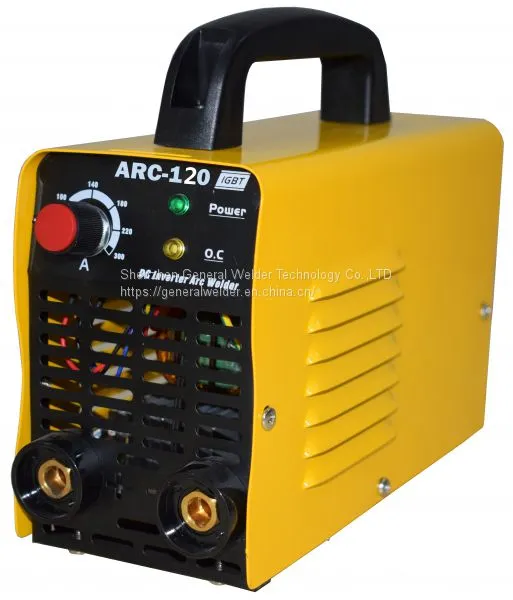

DC Inverter IGBT Mosfet/Portable/MMA Arc Welding Machine Welder-Arc120g/150g/180g
- 10000 Piece / Pieces per Month
- shekou
- T/T
- 25 days
Product Description
About the machine
The welding machine is a rectifier adopting the most advanced inverter technology.
The development of inverter gas-shielded welding equipment profits from the development of the inverter power supply theory and components. Inverter gas-shielded welding power source utilizes high-power component IGBT to transfer 50/60HZ frequency up to 100KHZ, then reduce the voltage and commutate, and output high-power voltage via PWM technology. Because of the great reduce of the main transformer's weight and volume; the efficiency increases by 30%. The appearance of inverter welding equipment is considered to be a revolution for welding industry.
The welding power source can offer stronger, more concentrated and more stable arc. When stick and work piece get short, its response will be quicker. It means that it is easier to design into welding machine with different dynamic characteristics, and it even can be adjusted for specialty to make arc softer or harder.
MMA welding machine has the following characteristics: effective, power saving, compact, stable arc, good welding pool, high no-load voltage, good capacity of force compensation and multi-use. It can weld stainless steel, alloy steel, carbon steel, copper and other color metal. It can apply to electrode of different specifications and materials, including acidity, alkalescence, and fibre. It can apply in high altitude, the open air and inside and outside decoration. Compared with the same products of home and abroad, it is compact in volume, light in weight, easy to install and operate.
PARAMETERS
Model Parameters | ARC 120G | ARC 150G | ARC 180G |
Power voltage(V) | 1phase AC220V ±15% | 1phase AC220V ±15% | 1phase AC220V ±15% |
Frequency (HZ) | 50/60 | 50/60 | 50/60 |
No-load voltage(V) | 56 | 59 | 59 |
Output current(A) | 30-120 | 30-150 | 30-180 |
Force range(A) | ---- | ---- | ---- |
Duty cycle (%) | 30 | 60 | 60 |
No-load loss (W) | 40 | 40 | 40 |
Efficiency(%) | 80 | 80 | 80 |
Power factor | 0.73 | 0.73 | 0.73 |
Insulation grade | F | F | F |
Housing protection grade | IP21 | IP21 | IP21 |
Weight (kg) | 5 | 5 | 7 |
Dimensions (mm) | 360×125×290 | 360×125×290 | 380×155×310 |
