EN124 Heavy Duty 500mm Round Manhole Cover

EN124 Heavy Duty 500mm Round Manhole Cover photo-1

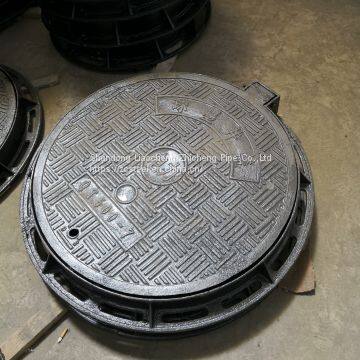

EN124 Heavy Duty 500mm Round Manhole Cover photo-2
US$ 1 - 300 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
ZHICHENG
Place of Origin:
China
Model Number:
EN124
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Brand Name ZHICHENG
Place of Origin China
Model Number EN124

1. High load strength
Less noise and lower vibration transmissions.
2. Against theft,noise and rust.
3. Durable life.
4. Free design
Class A15 Area which can only be used by pedestrians and pedal cyclists
Class B125 Folkways, pedestrian areas and comparable areas, car parks or parking decks
Class C250 For gratings installed in the area of kerbside channels of roads which, when measured from the Serb edge, extend maximum 0.5 m into the carriageway and maximum 0.2 m into the foot way
Class D400 Arrive ways of roads (pedestrian streets included), hard shoulders and parking areas for all types of road vehicles
Class E600 Areas subject to high axle loads such as docks and airports
Class F900 Areas subject to very high axle loads such as airports

Name
Ductile manhole cover
Material
Ductile iron GGG50/7, gray iron
Standard
EN124/1433/1563
Class
A15,B125,C250,D400,E600,F900
Shape
Round, square, rectangle
Size
200mm-1000mm or as per customers' drawing
Surface
Bituminous black
Molding
DISA Line
Process
Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection
Advanced technology and equipments
Tensile strength: 500Mpa Yield stress: 320Mpa

Elongation rate: 7%

Hardness: HBS170-230

Load capacity
D400 E600 F900
Tolerance
Machining:+/-0.02mm, finish machining:0.002mm
Application
Footway, pedestrians, car parks, aircraft pavements
Advantage
Longevity corrosion resistance, excellent anti-pressure
