FRP Manhole Cover And Road Grates/Square Manhole Cover

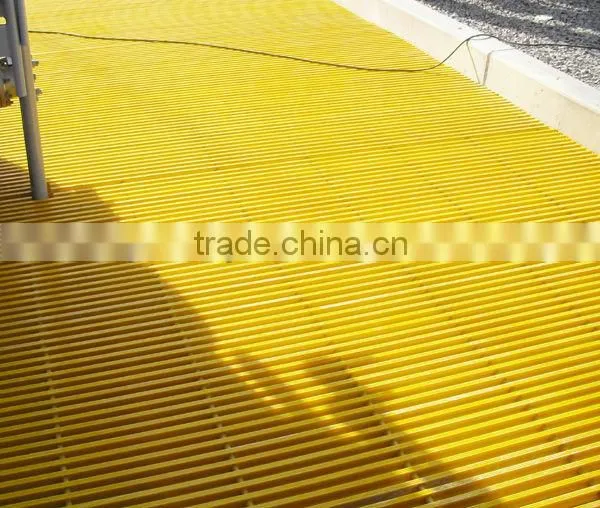

Fiberglass Reinforced Plastic (FRP) manhole cover and road grate is manufactured by combining a matrix of resin and fiberglass. That makes it a composite material. Fiberglass grating does not corrode like steel gratings. That is what gives them their value. They are used in corrosive environments. They lower maintenance costs.

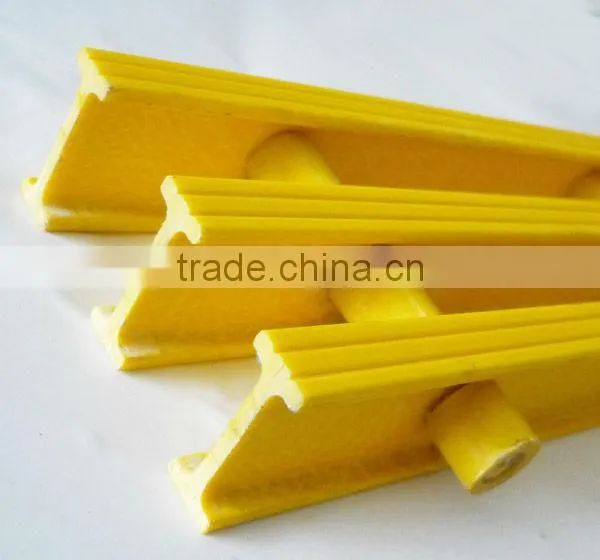

Pultruded frp grate is built with a much stronger process, and can carry a far superior load, and handle much greater impacts than molded grate.
Long-term durability, offers the strength of steel at a fraction of the weight, plus it won't corrode, spark or conduct electricity. Because it weighs less, it's easier to install. And the color is molded all the way through, so no painting is required.
Pultruded frp grating advantages
- Corrosion Resistant.
- High Strength-to-Weight Ratio.
- Long Service Life.
- Fire Retardant.
- Slip & Impact Resistant.
- Nonconductive.
- Easy to Install & Fabricate.
Applications:
Bridge walkways
Platforms
Trench Covers
Walkways
Pedestrian Ramps
Decks and Patios
Staircase
Floorings
Foot Bridges
Swimming Pool Overflow
Fencing
Elevated Car parking
Yalong frp grating specification list:
| Item | high (inches) |
top wide (mm) |
bottom wide (mm) |
top space wide (mm) |
theoretical weight (KG/M2) |
| 25mm I | 1 | 30 | 30 | 13 | 13 |
| 25mm I | 1 | 30 | 30 | 30 | 10 |
| 25mm I | 1 | 15 | 15 | 10 | 17 |
| 25mm I | 1 | 15 | 15 | 23 | 11 |
| 38mm I | 1.5 | 15 | 15 | 10 | 26 |
| 38mm I | 1.5 | 15 | 15 | 15 | 22 |
| 38mm I | 1.5 | 15 | 15 | 23 | 18 |
| 40mm I | 1.6 | 40 | 20 | 27 | 19 |
| 40mm I | 1.6 | 40 | 20 | 40 | 17 |
| 40mm I | 1.6 | 40 | 20 | 60 | 14 |
| 40mm I | 1.6 | 30 | 30 | 20 | 14 |
| 40mm I | 1.6 | 30 | 30 | 30 | 12 |
| 40mm I | 1.6 | 30 | 30 | 45 | 10 |
| 58mm I | 2.2 | 15 | 15 | 10 | 32 |
| 58mm I | 2.2 | 15 | 15 | 15 | 27 |
| 58mm I | 2.2 | 15 | 15 | 23 | 22 |
| 65mm I | 2.5 | 30 | 30 | 20 | 17 |
| 65mm I | 2.5 | 30 | 30 | 30 | 15 |
| 60mm I | 2.5 | 30 | 30 | 45 | 12 |
Goods packing
